Striker Adjustment Using Mini-Wedge Aligner
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
Important: The door must be properly aligned before adjusting the striker.
- Open the door.
- Loosen the door striker to body screws just enough to allow movement of the door striker.

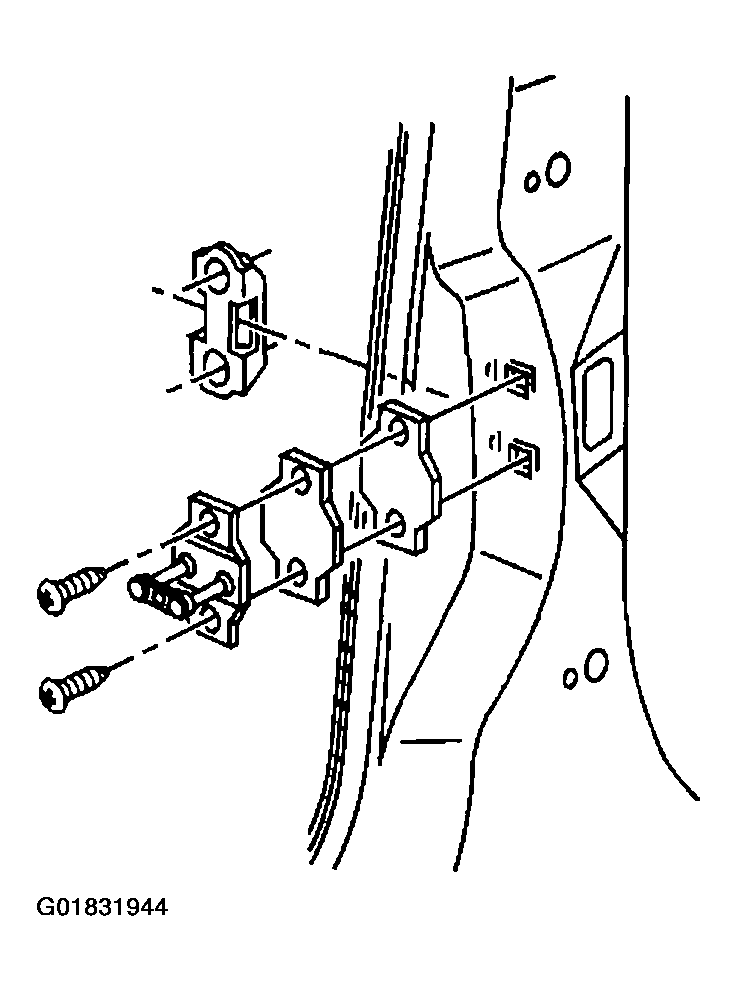

- Install J 39346-A
to the door striker.
Important: Do not slam the door.
- Gently close the door while holding the outside handle in the open position.
- Open the door.
NOTE: Refer to FASTENER NOTICE .
- Tighten the door lock striker screws.
Tighten
Tighten the screws to 25 N.m (18 lb ft).
- Remove J 39346-A from the door striker.
- Close the door.
