Removal Procedure

Important:

• The door locks use the fork bolt lock design which includes a safety interlock feature. The door is secured in a closed position when the door lock fork bolt engages the striker. Rotate the lock knob rearward in order to unlock the door from the inside.
• Replace the door lock if it is faulty. Do not attempt to repair.

1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door

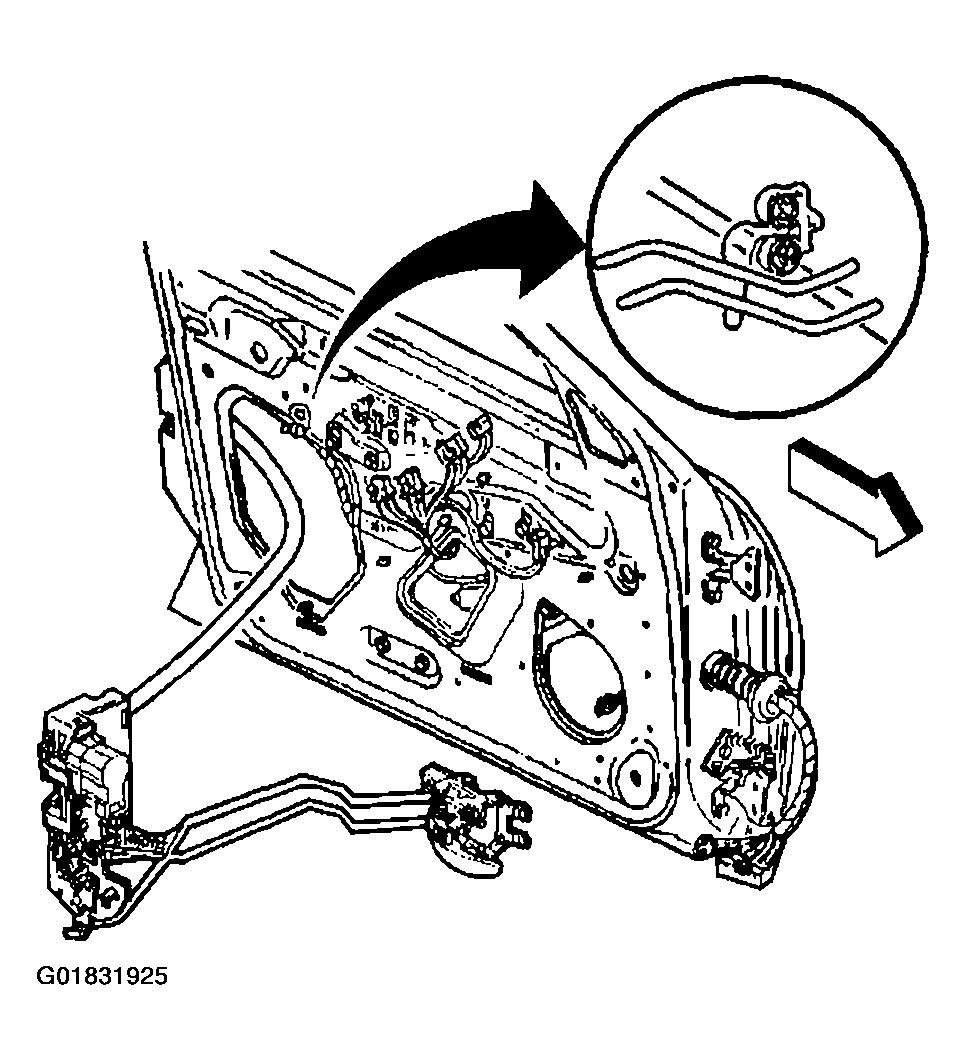

   Fig 1: Rod-To-Lock Clip

   Courtesy of GENERAL MOTORS CORP.
3. Use side cutters in order to remove the lock-to-rod clip which secures the rear door outside handle rod to the rear door lock.
4. Discard the lock-to-rod clip.
5. Remove the rods from the rear door inside handle.
6. Remove the rods from the lock-to-rod clip.

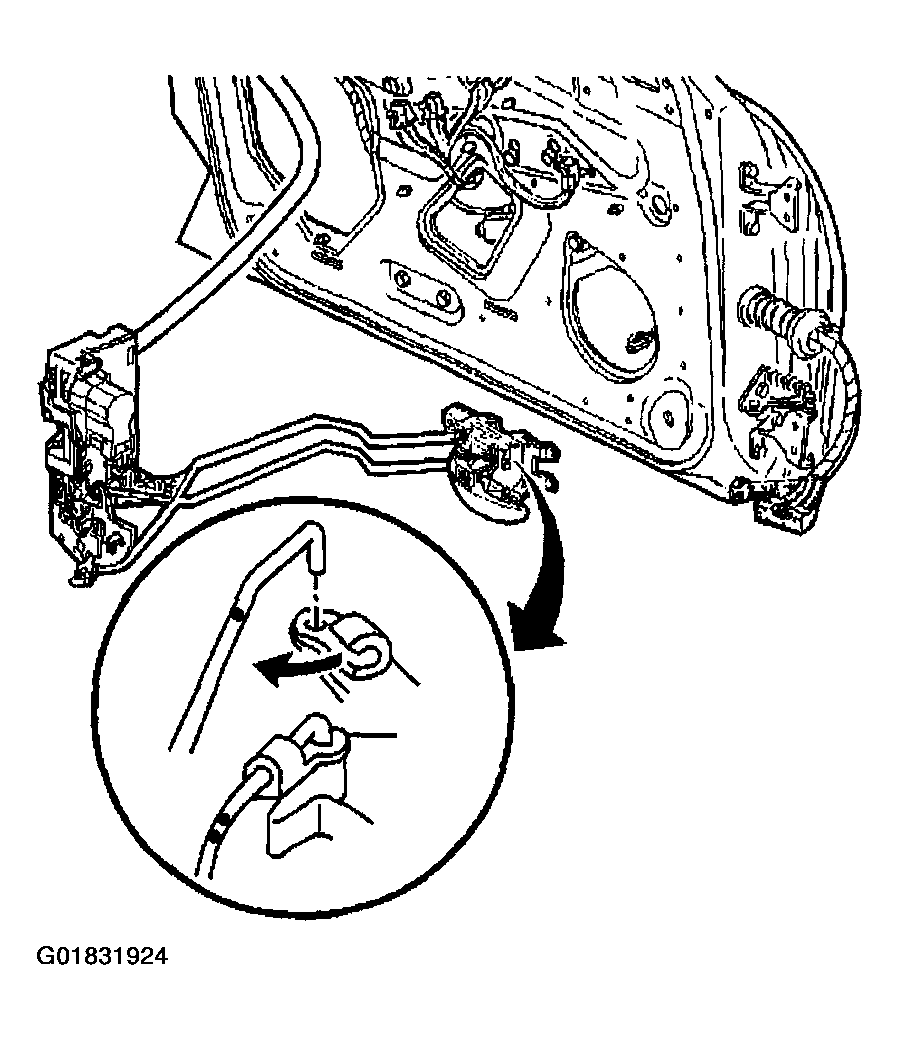

   Fig 2: Rod-To-Lock Clip

   Courtesy of GENERAL MOTORS CORP.
7. Remove the door lock screws (1, 2, 3) which secure the rear door lock to the rear door.

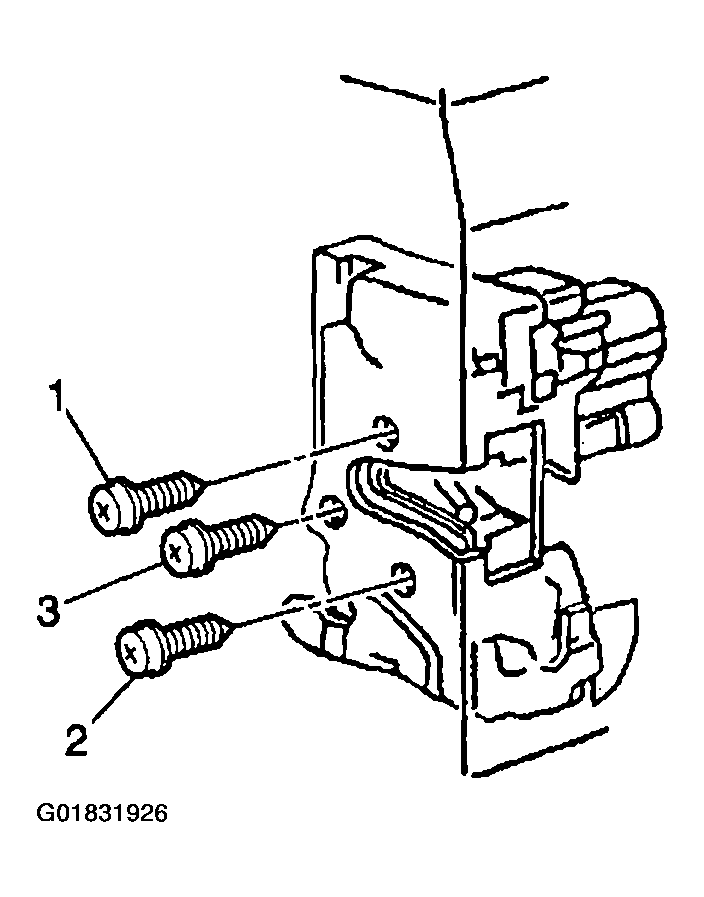

   Fig 3: Removing Screws Which Secure Rear Door Lock To Rear Door

   Courtesy of GENERAL MOTORS CORP.
8. Disconnect the electrical connectors from the rear door lock.

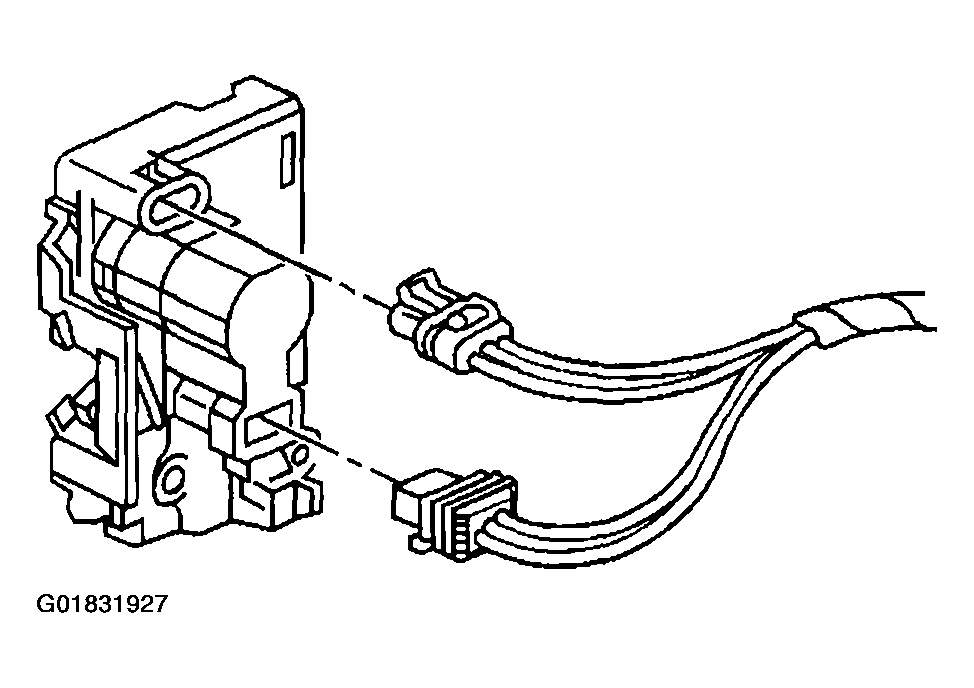

   Fig 4: Disconnecting Electrical Connectors From Rear Door Lock

   Courtesy of GENERAL MOTORS CORP.
9. Remove the rear door lock with the inside handle rods attached.
10. Remove the rear door handle rods from the rear door lock.

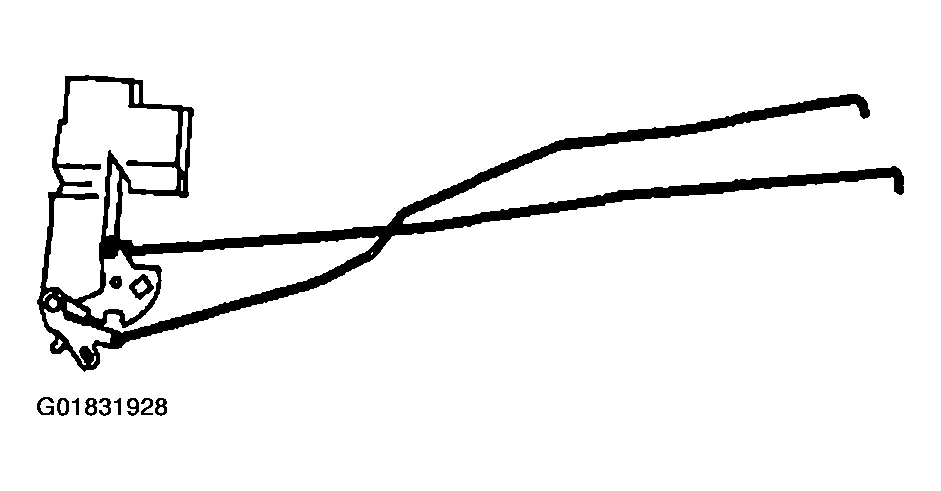

    Fig 5: Removing Rear Door Handle Rods From Rear Door Lock

    Courtesy of GENERAL MOTORS CORP.
