Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door outside door handle. Refer to Door Handle Rod Adjustment - Front Outside .
  2. Remove the front door lock cylinder retainer clip (2).
  3. Remove the front door lock cylinder from the front door outside handle.

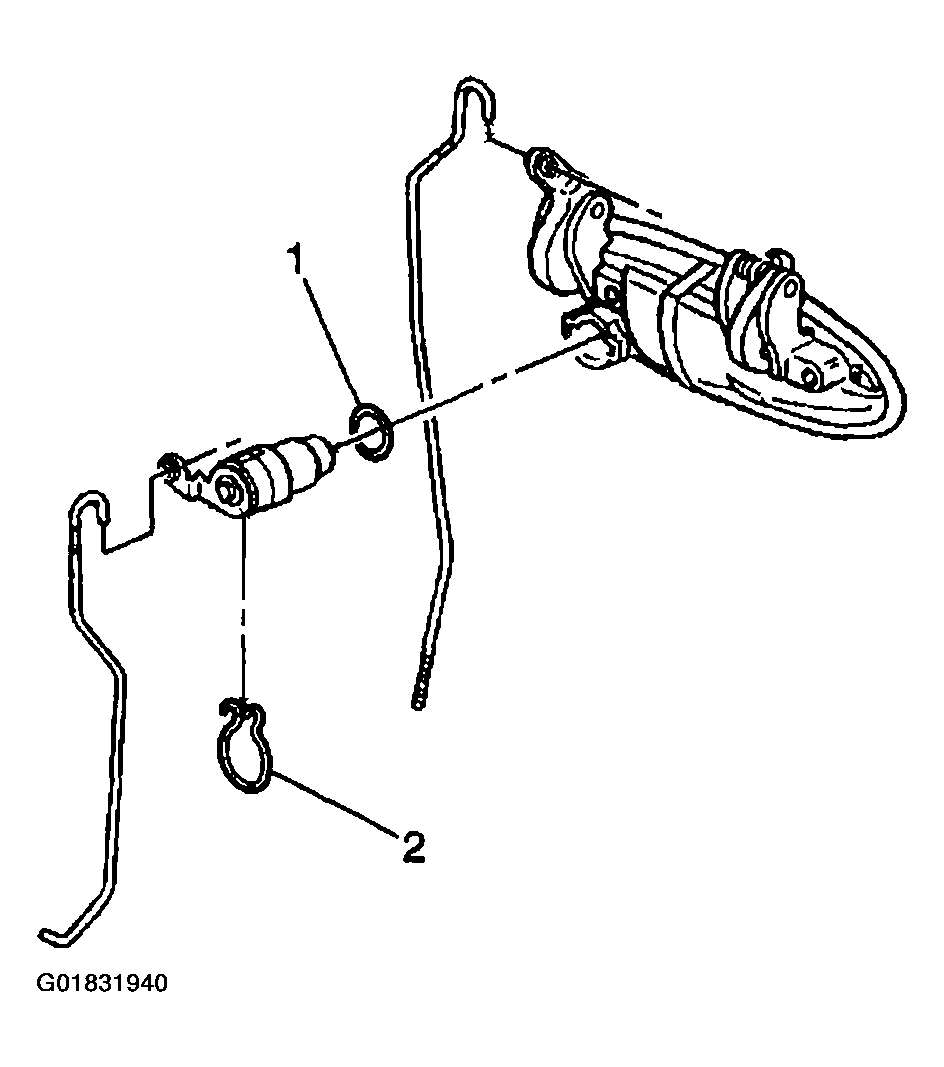

    Fig 1: Removing Front Door Lock Cylinder Retainer Clip
    G01831940Courtesy of GENERAL MOTORS CORP.
