Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lock. Refer to Lock Replacement - Rear Door .
  2. Remove the rear door lock to rear door lock actuator screws.
  3. Remove the rear door actuator from the rear door lock.

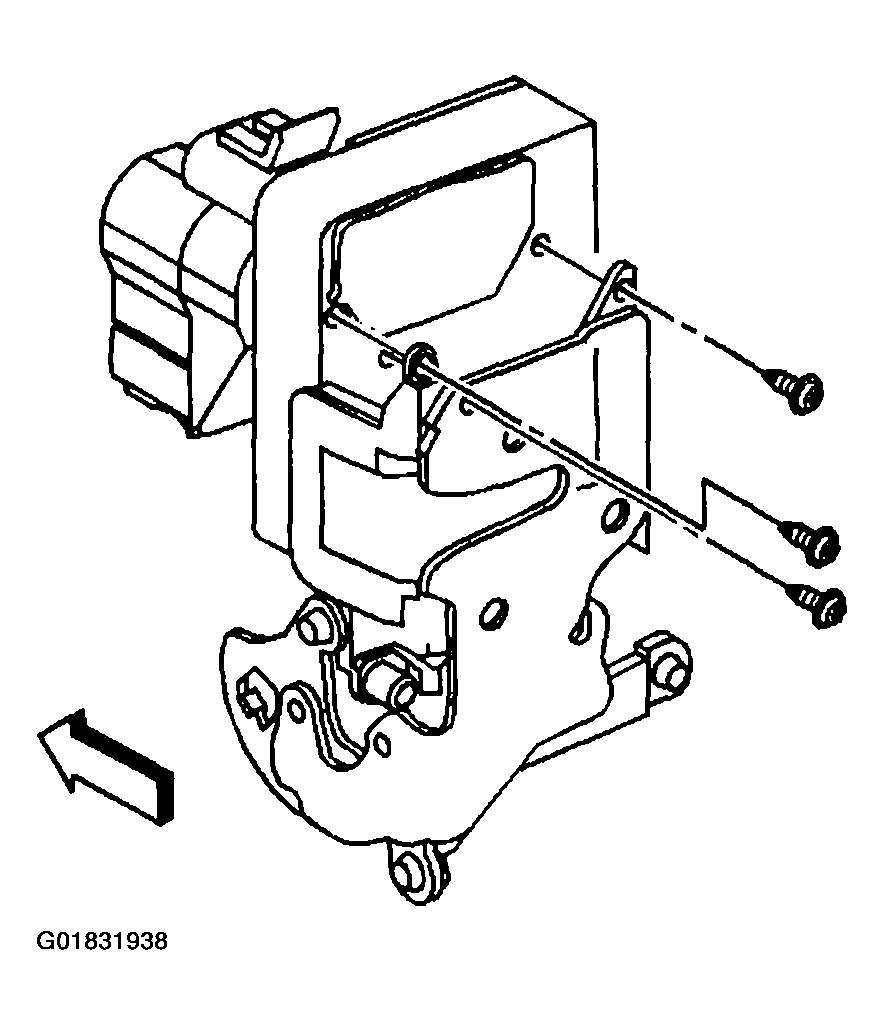

    Fig 1: Removing Rear Door Lock To Rear Door Lock Actuator Screws
    G01831938Courtesy of GENERAL MOTORS CORP.
