Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door lock. Refer to Lock Replacement - Front Door .
  2. Remove the front door lock to front door lock actuator screws.
  3. Remove the front door actuator from the front door lock.

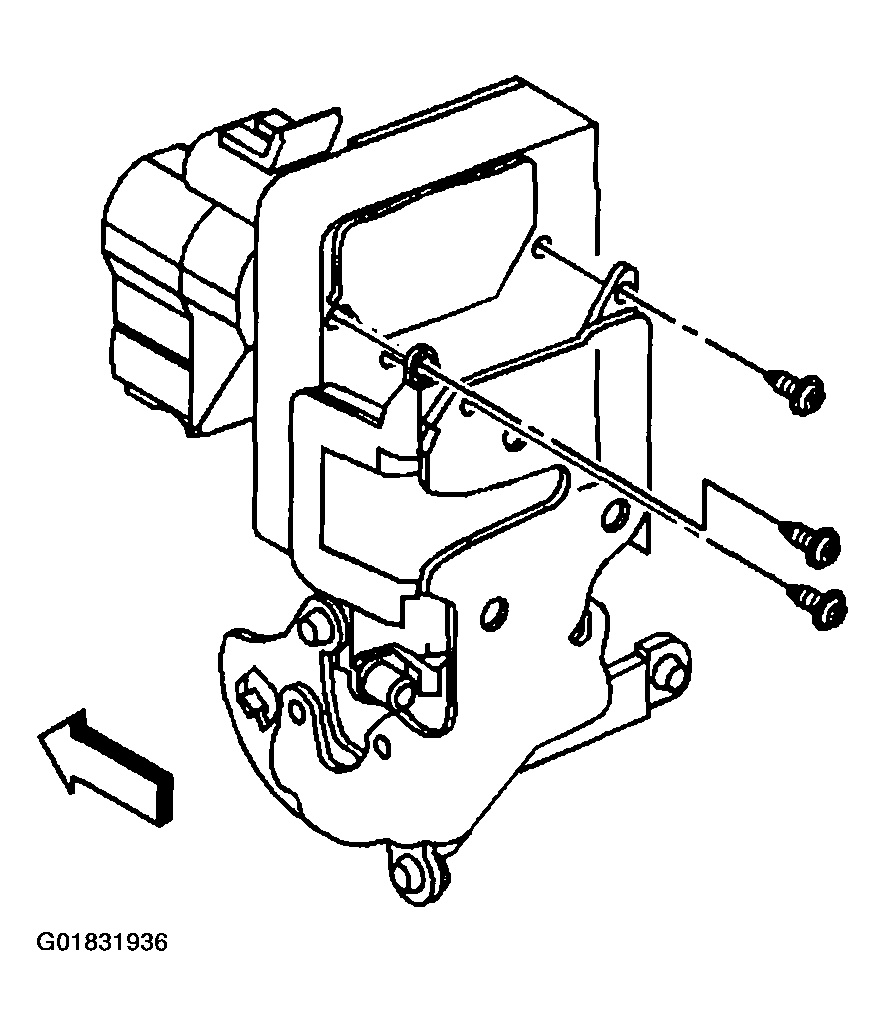

    Fig 1: Removing Front Door Lock To Front Door Lock Actuator Screws
    G01831936Courtesy of GENERAL MOTORS CORP.
