Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Using J 36604  , remove the door hinge spring from the door hinge.
  3. Remove the door hinge spring from the vehicle.

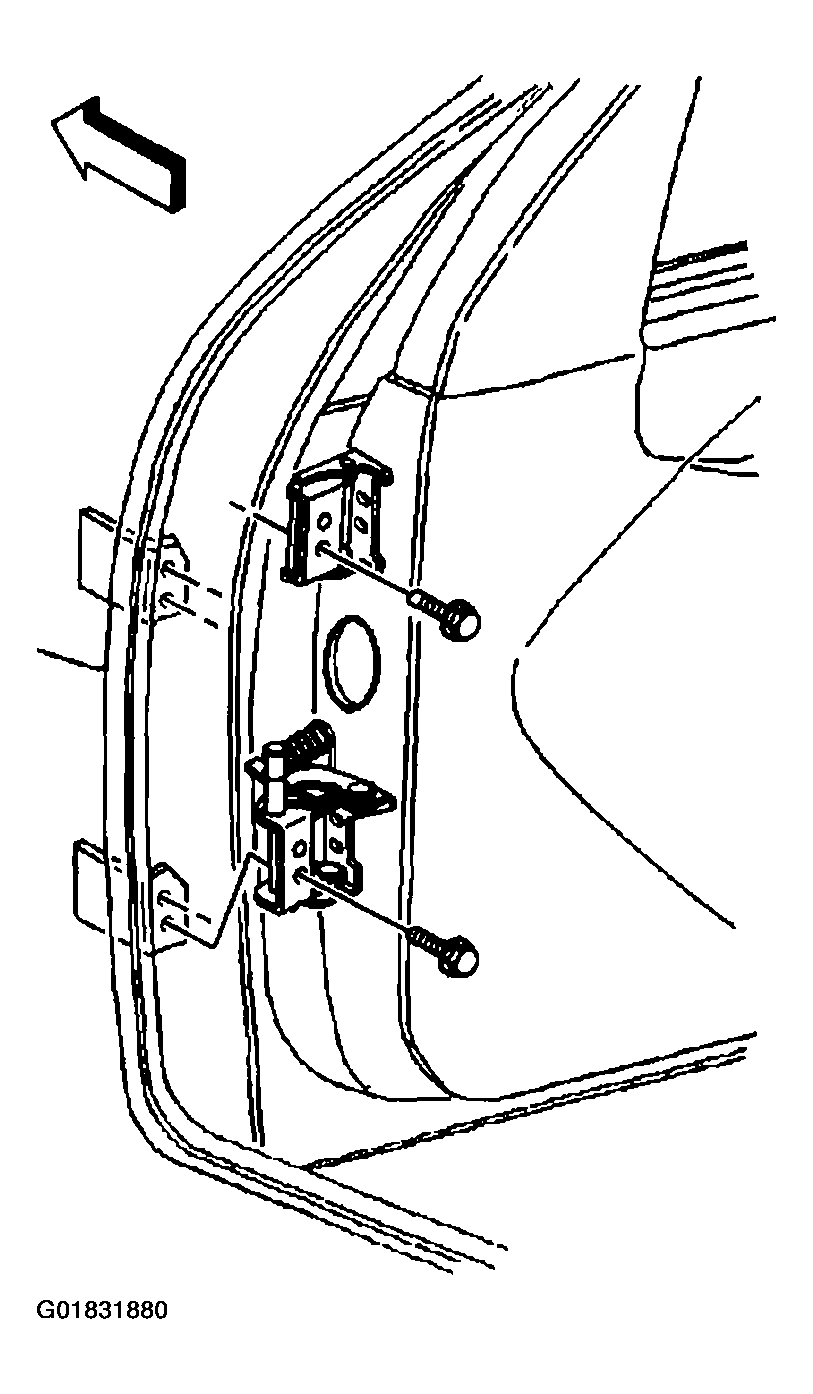

    Fig 1: Removing Door Hinge Spring From Door Hinge
    G01831880Courtesy of GENERAL MOTORS CORP.
