Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door lock. Refer to Lock Replacement - Front Door .
  4. Remove the front door inside handle rod from the front door lock.

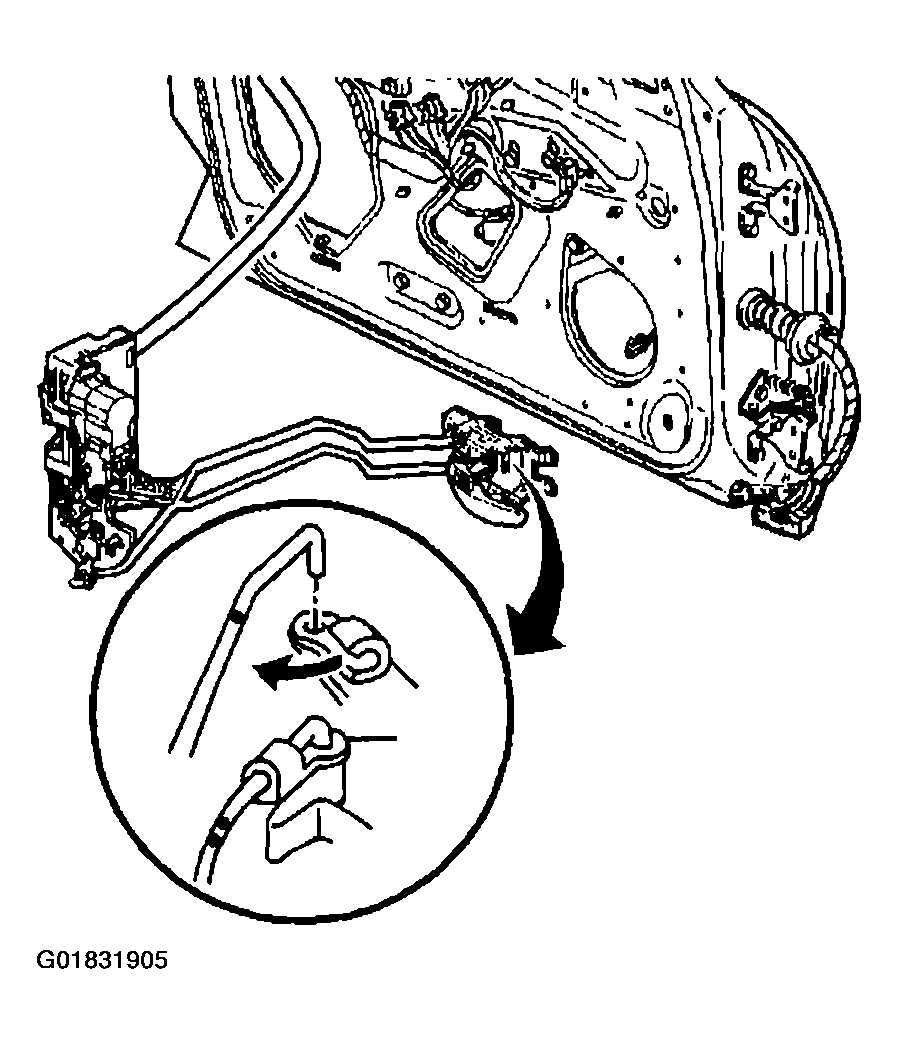

    Fig 1: Removing Front Door Inside Handle Rod From Front Door Lock
    G01831905Courtesy of GENERAL MOTORS CORP.
