Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: This vehicle has energy-absorbing foam blocks for side impact protection. To help avoid personal injury in a collision, foam blocks that are damaged, or removed during repairs must be replaced. Failure to replace foam blocks that are removed can violate federal law.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the screws which secure the energy absorber pads to the door trim panel.
  3. Remove the energy absorber pads from the door trim panel.

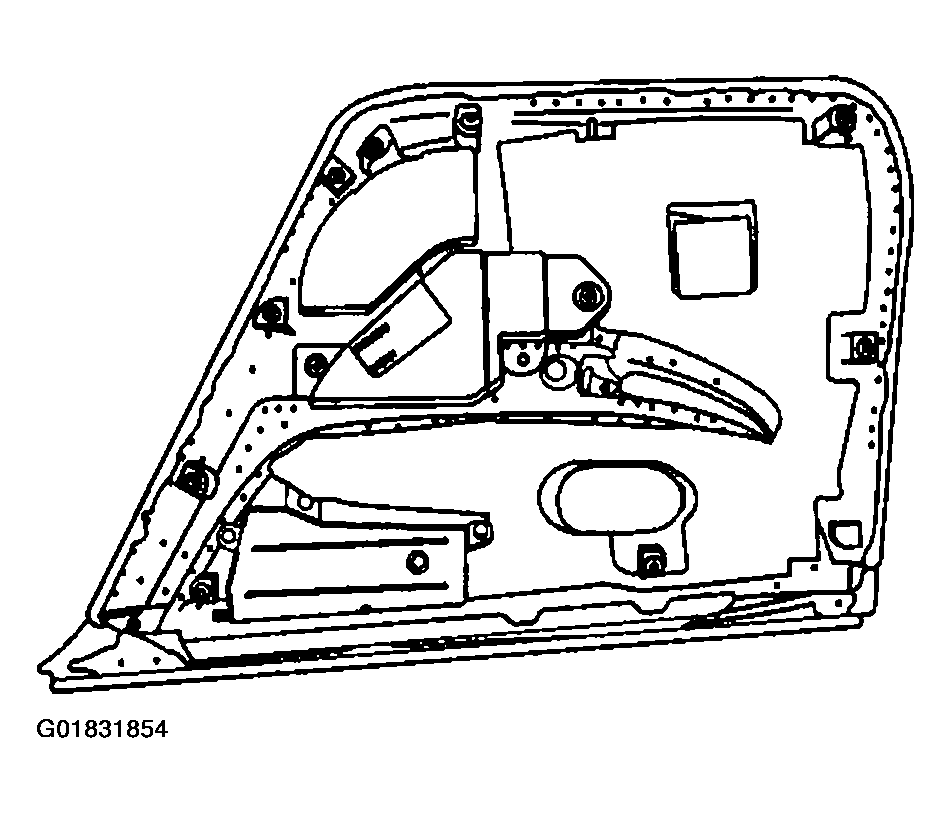

    Fig 1: Removing Energy Absorber Pads & Screws
    G01831854Courtesy of GENERAL MOTORS CORP.
