Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the rear door armrest bracket. Refer to Armrest Bracket Replacement .
  4. Remove the rear door window belt inner sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner
  5. Remove the rear door window. Refer to Window Replacement - Rear Door
  6. Remove the rear door stationary window. Refer to Window Replacement - Rear Door Stationary .
  7. Remove the rear door frame applique. Refer to Door Frame Applique Replacement - Rear .
  8. Remove the rear door outside handle. Refer to Door Handle Replacement - Rear Outside .
  9. Remove the rear door inside handle. Refer to Door Handle Replacement - Rear Inside .
  10. Remove the rear door lock. Refer to Lock Replacement - Rear Door .
  11. Remove the rear door window weatherstrip. Refer to Weatherstrip Replacement - Rear Door Window .
  12. Remove the rear door window regulator. Refer to Window Regulator Motor Replacement - Rear Door .
  13. Remove the rear door conduit. Refer to Rubber Conduit Replacement - Rear Door .
  14. Remove the rear door wiring harness.
  15. Remove the rear door bodyside molding. Refer to MOLDING REPLACEMENT - BODY SIDE .
  16. Remove the rear door.

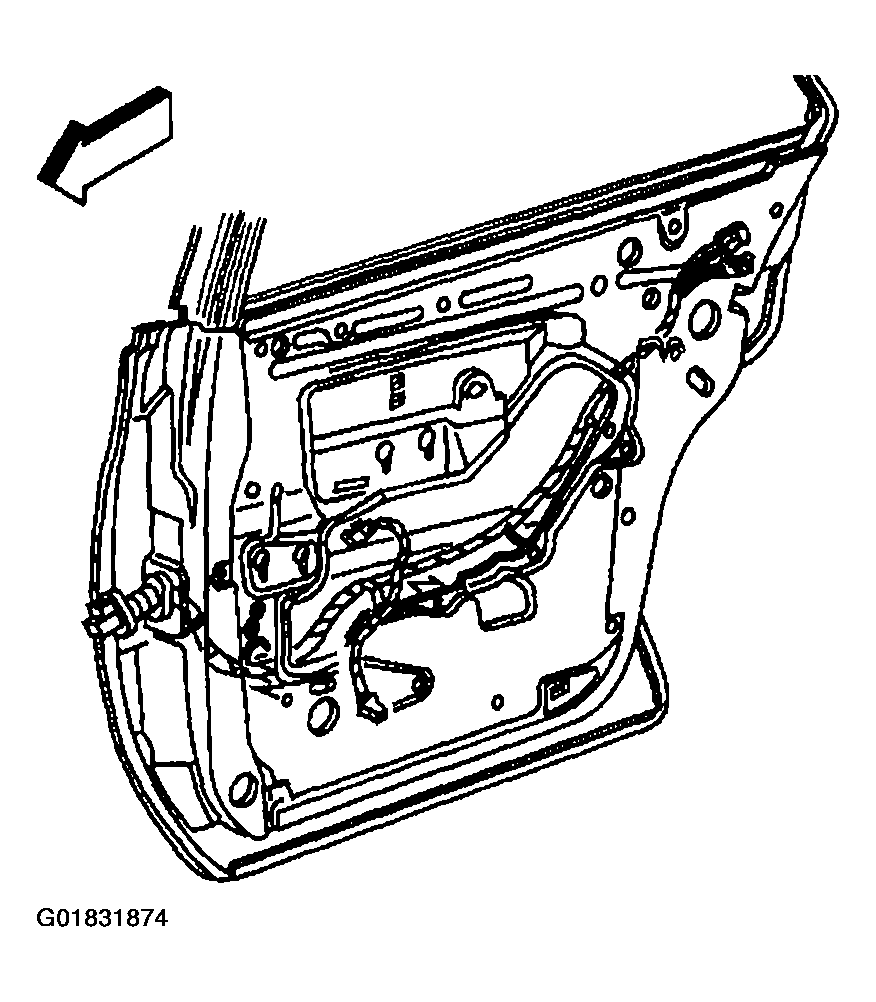

    Fig 1: Removing Rear Door & Wiring Harness
    G01831874Courtesy of GENERAL MOTORS CORP.
