Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door window belt inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  5. Remove the front door window. Refer to Window Replacement - Front Door .
  6. Remove the front door window weatherstrip. Refer to Weatherstrip Replacement - Front Door Window .

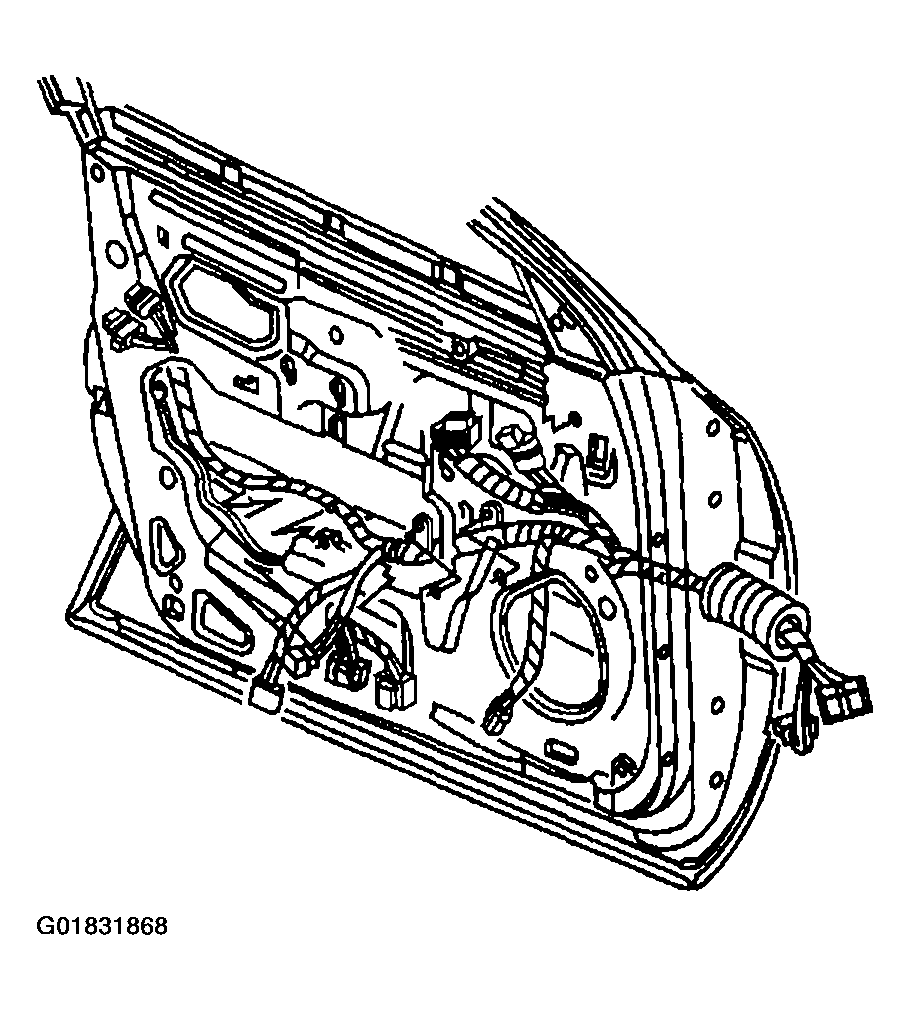

    Fig 1: Removing Front Door & Wiring Harness
    G01831868Courtesy of GENERAL MOTORS CORP.
  7. Remove the front door window regulator. Refer to Window Regulator Motor Replacement - Front Door .
  8. Remove the front door outside handle. Refer to Door Handle Replacement - Front Outside .
  9. Remove the front door inside handle. Refer to Door Handle Replacement - Front Inside .
  10. Remove the front door lock. Refer to Lock Replacement - Front Door .
  11. Remove the front door weatherstrip. Refer to Weatherstrip Replacement - Front Door .
  12. Remove the rubber conduit. Refer to Rubber Conduit Replacement - Front Door .
  13. Remove the front door wiring harness.
  14. Remove the front door bodyside moldings. Refer to MOLDING REPLACEMENT - BODY SIDE .
  15. Remove the front door.
