Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door
  3. Remove the rear door lock. Refer to Lock Replacement - Rear Door .
  4. Remove the rear door inside handle rod (3) from the rear door lock.

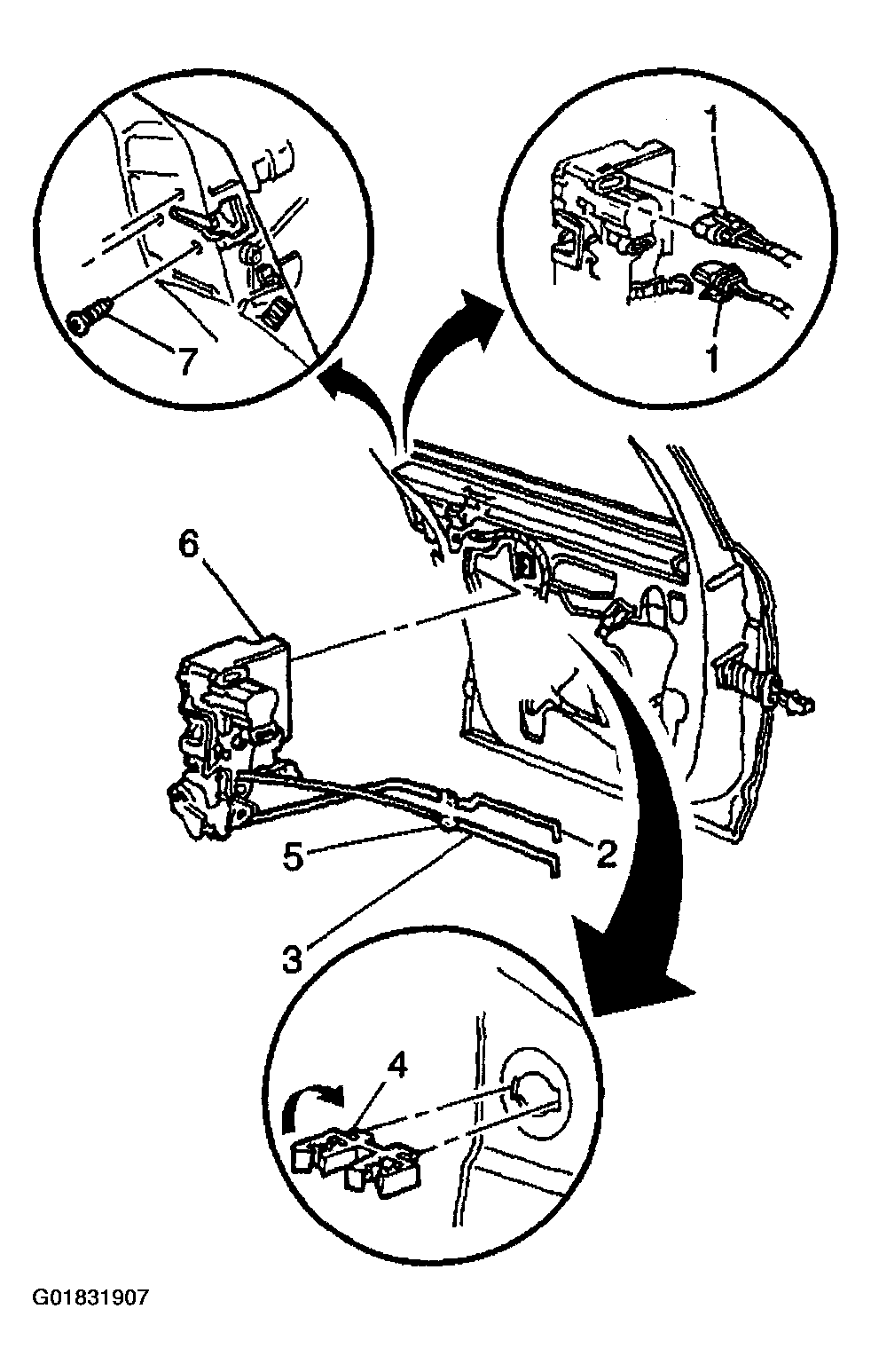

    Fig 1: Removing Rear Door Inside Handle Rod From Rear Door Lock
    G01831907Courtesy of GENERAL MOTORS CORP.
