Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door
  3. Remove the rear door outside handle rod from the rod-to-lock plastic clip.
  4. Discard the rod-to-lock clip.
  5. Remove the rear door handle to door bolts.
  6. Remove the rear door outside handle from the rear door.
  7. Remove the rear door handle rod from the rear door outside handle.

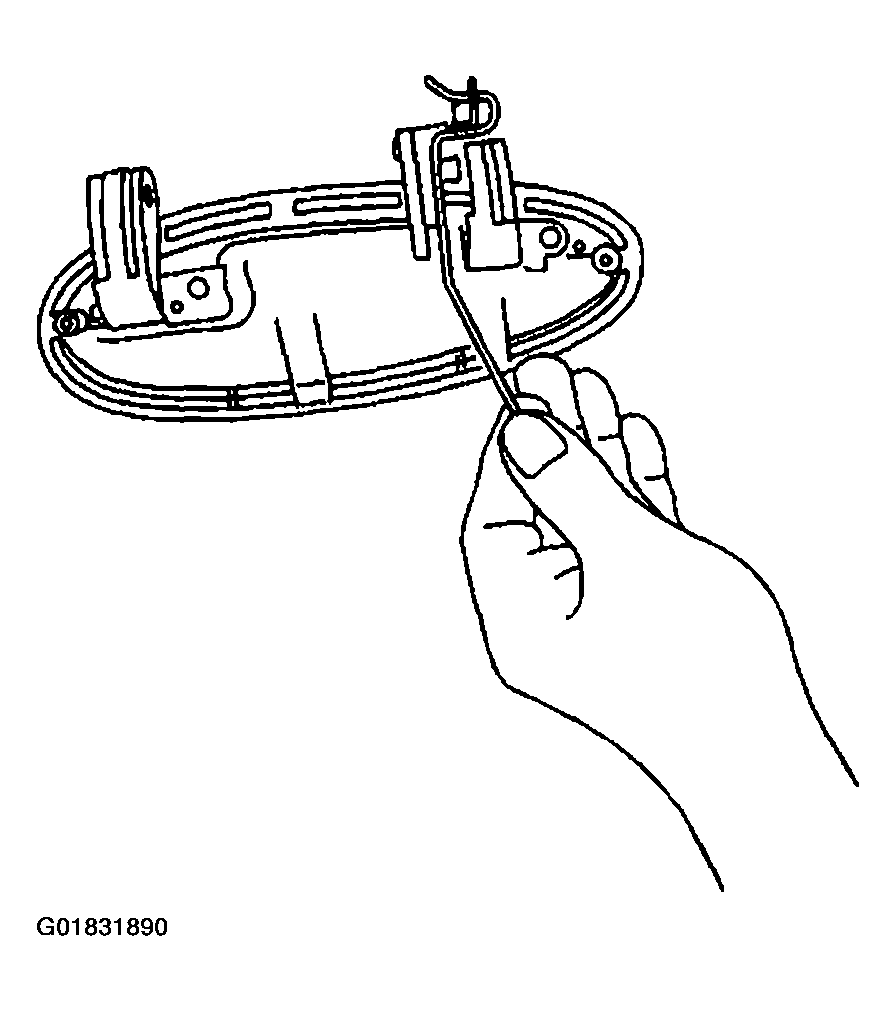

    Fig 1: Rod-To-Lock Clip & Rear Door Outside Handle Rod
    G01831890Courtesy of GENERAL MOTORS CORP.
