Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the rear door window to the full closed position.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the rear door handle water deflector.
  4. Disconnect the rear door rod-to-handle clips securing the rods to the rear door inside handle.
  5. Remove the rods from the rear door inside handle.

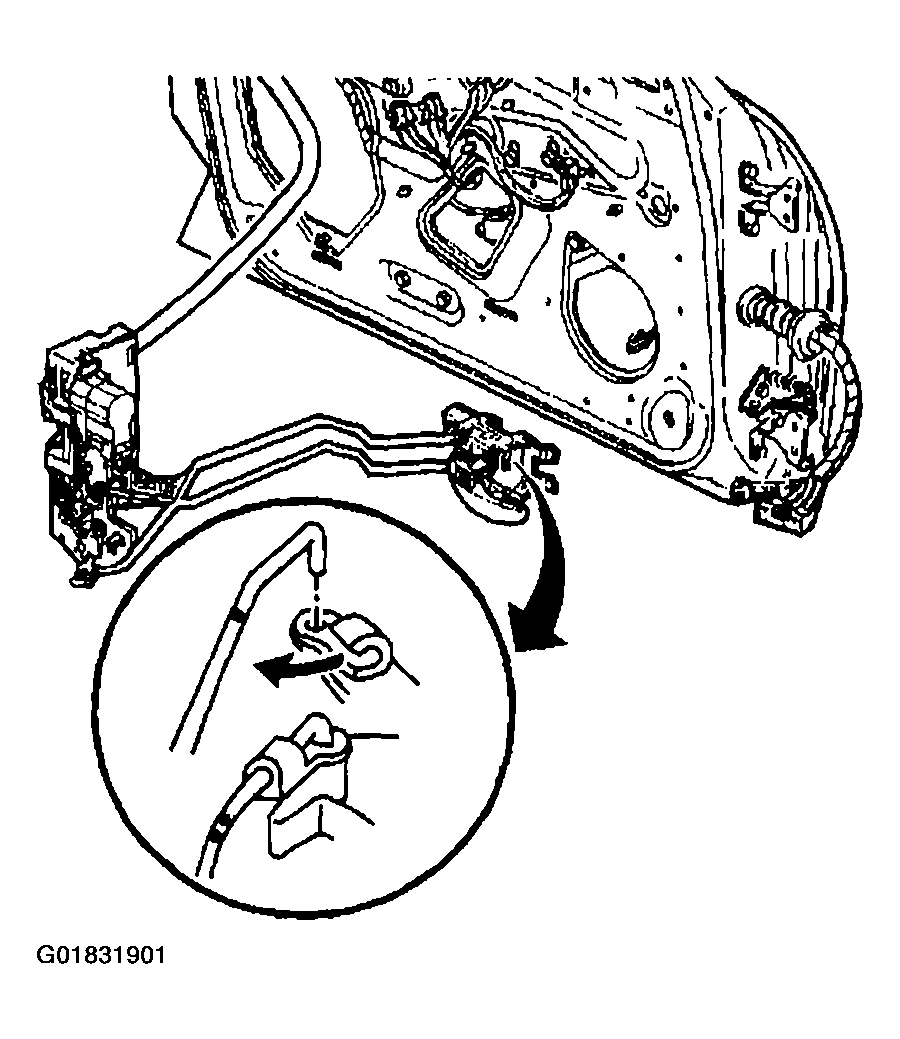

    Fig 1: Rear Door Rod To Handle Clips
    G01831901Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear door inside handle to rear door rivet.
    1. 6.1. Create a pilot hole by using a center punch. Drive the mounting rivet mandrel for the rear door inside handle into the rivet head.
    2. 6.2. Use a 6.35-mm (1/4-in) drill bit in order to drill out the rivet.
  7. Remove the rear door inside handle from the rear door.

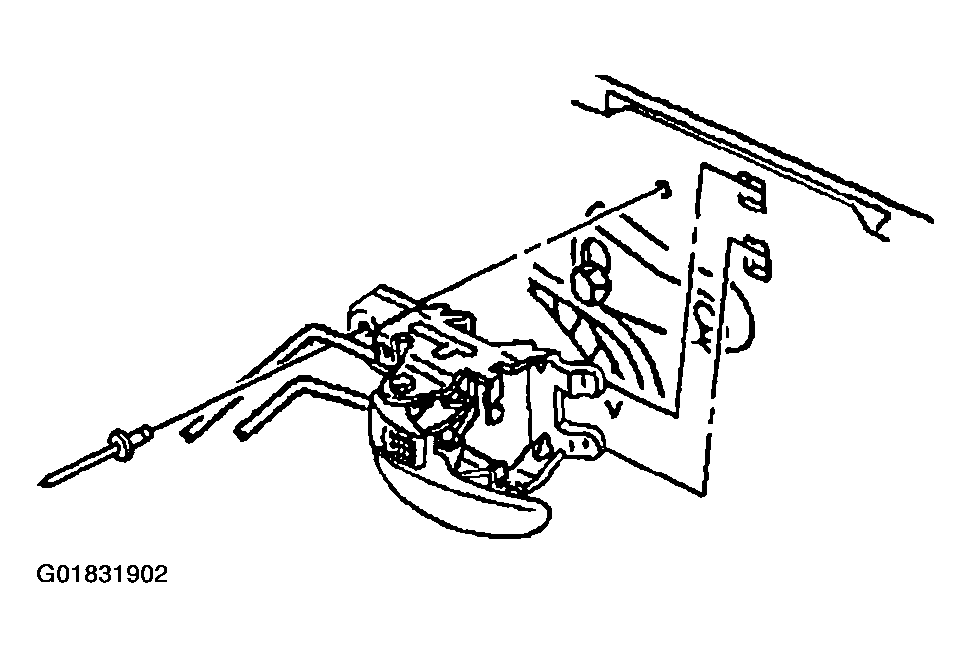

    Fig 2: Rear Door Inside Handle To Rear Door Rivet
    G01831902Courtesy of GENERAL MOTORS CORP.
