Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the front door window to the full closed position.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Disconnect the front door rod-to-handle clips securing the rods to the front door inside handle.
  5. Remove the rods from the front door inside handle.

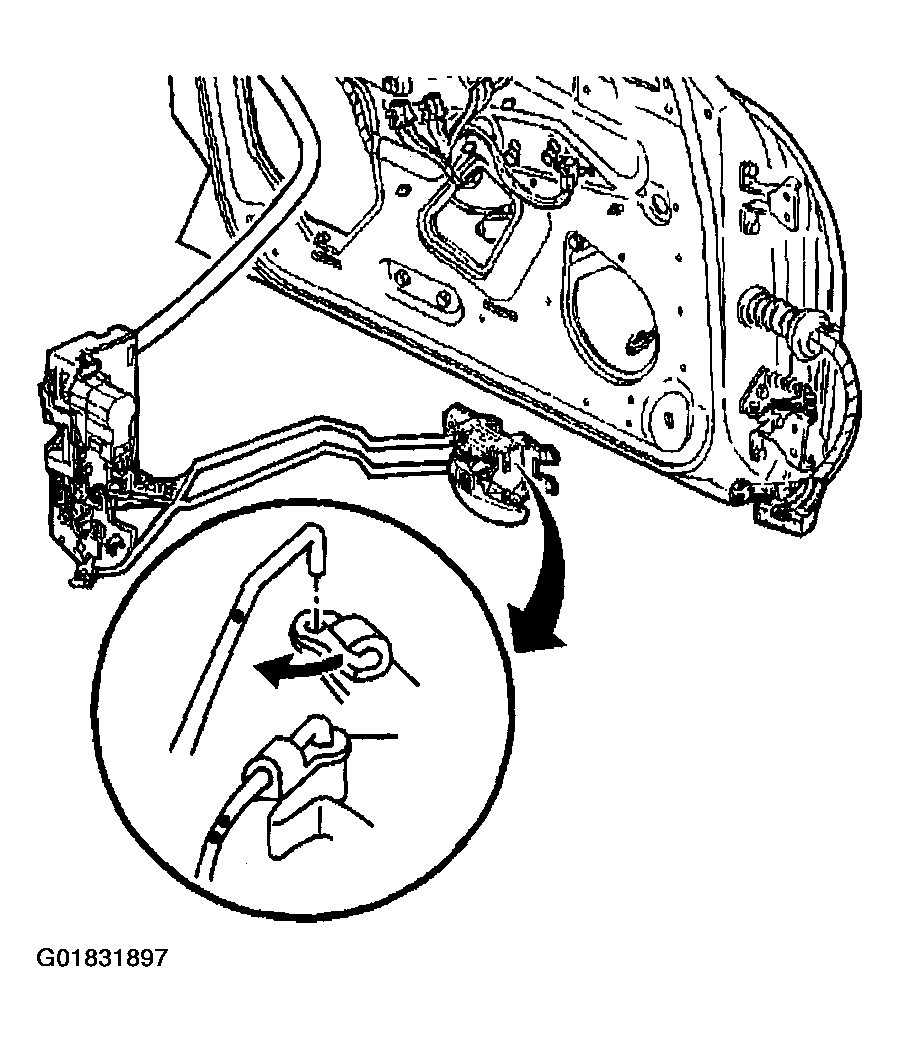

    Fig 1: Front Door Rod To Handle Clips
    G01831897Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door inside handle to front door rivet.
    1. 6.1. Use a center punch to drive the front door inside handle mounting rivet mandrel into the rivet head to create a pilot hole.
    2. 6.2. Use a 6.35 mm (1/4 in) drill bit to drill out the rivet.
  7. Remove the front door inside handle from the front door.

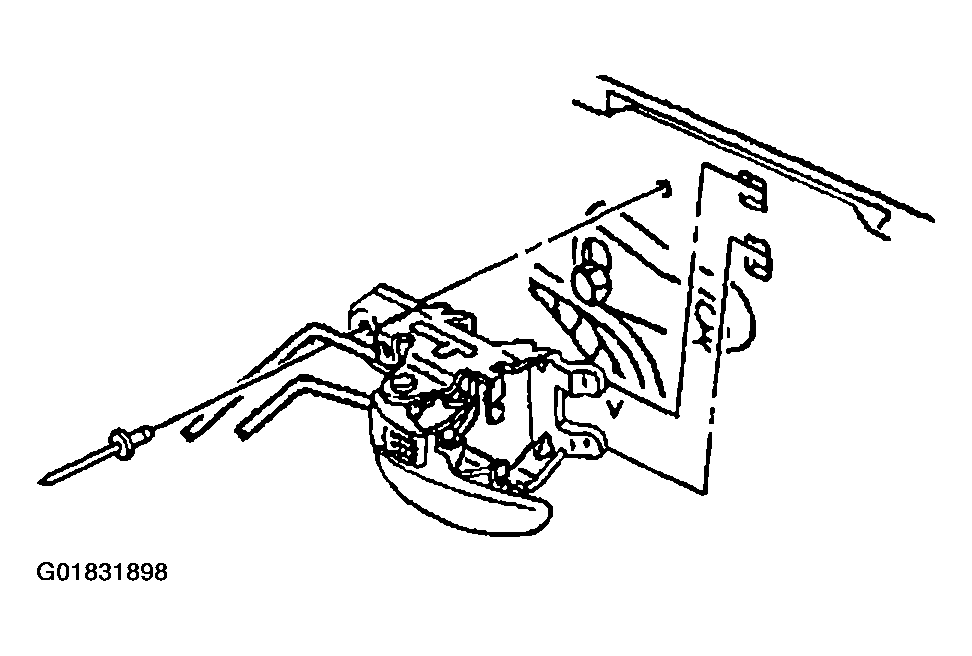

    Fig 2: Front Door Inside Handle To Front Door Rivet
    G01831898Courtesy of GENERAL MOTORS CORP.
