Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  2. Remove the front of the rear door window weatherstrip retainer.

    Hold the rear door weatherstrip away from the rear door.

  3. Slide the rear door frame applique upwards.
  4. Remove the rear door frame applique from the rear door.

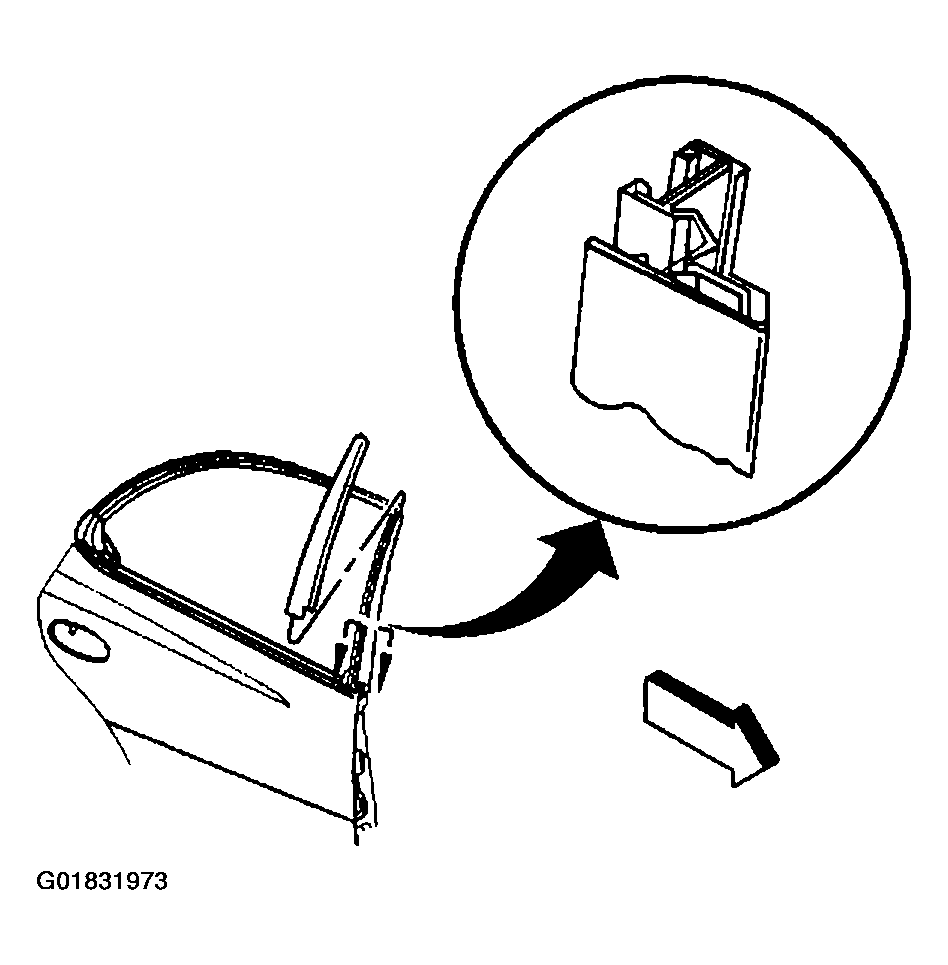

    Fig 1: Removing Rear Door Frame Applique
    G01831973Courtesy of GENERAL MOTORS CORP.
