Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  2. Remove the front door window weatherstrip. Refer to Weatherstrip Replacement - Front Door .
  3. Slide the front door frame applique upwards.
  4. Remove the front door frame applique from the front door.

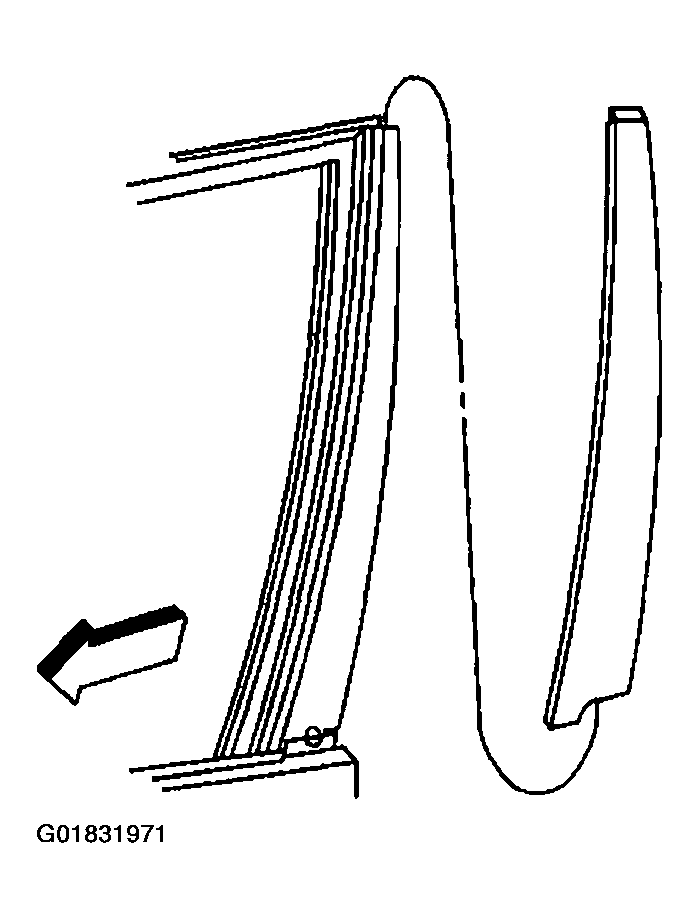

    Fig 1: Front Door Frame Applique
    G01831971Courtesy of GENERAL MOTORS CORP.
