Up/Down or In/Out Adjustment

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Important: The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position

Loosen the door side upper (2) and lower hinge bolts. Do not remove the bolts.
Adjust the door up or down by repositioning the door as needed.
Adjust the door in or out by repositioning the door as needed.
NOTE: Refer to FASTENER NOTICE .
Tighten the door side upper (2) and lower hinge bolts.
Tighten

Tighten the bolts to 33 N.m (24 lb ft).

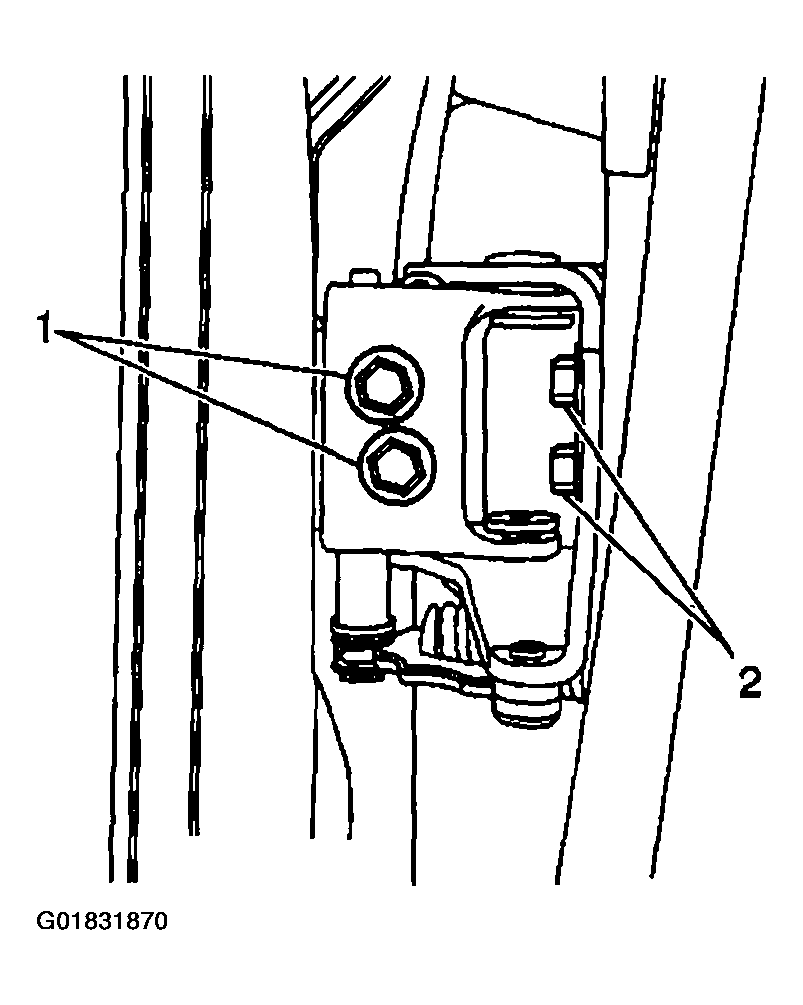

Fig 1: Door Side Upper & Lower Hinge Bolts
Courtesy of GENERAL MOTORS CORP.
