Fore/Aft Adjustment

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the body side upper and lower hinge bolts (1). Do not remove them.

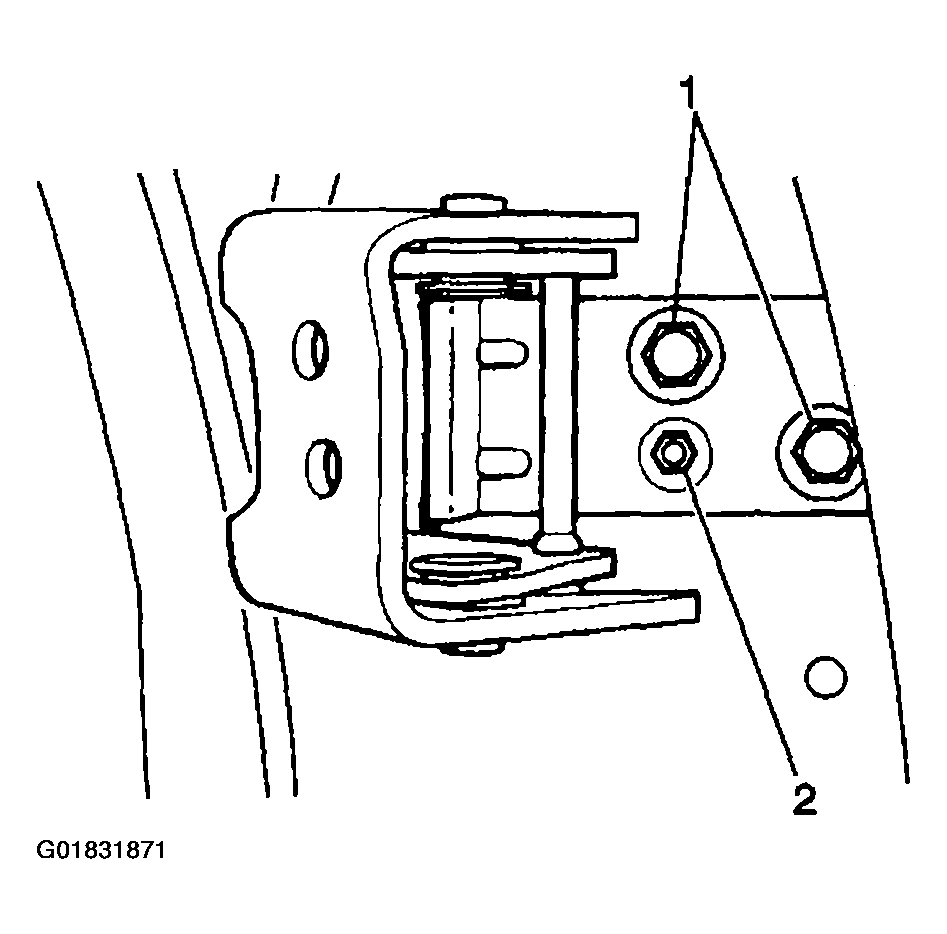

    Fig 1: Body Side Upper & Lower Hinge Bolts
    G01831871Courtesy of GENERAL MOTORS CORP.
  2. Loosen the cone adjuster body side hinge bolt (1).
  3. Adjust the door fore and aft by repositioning the door as needed.
    NOTE: Refer to FASTENER NOTICE .
  4. Tighten the cone adjuster (1) body side hinge bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

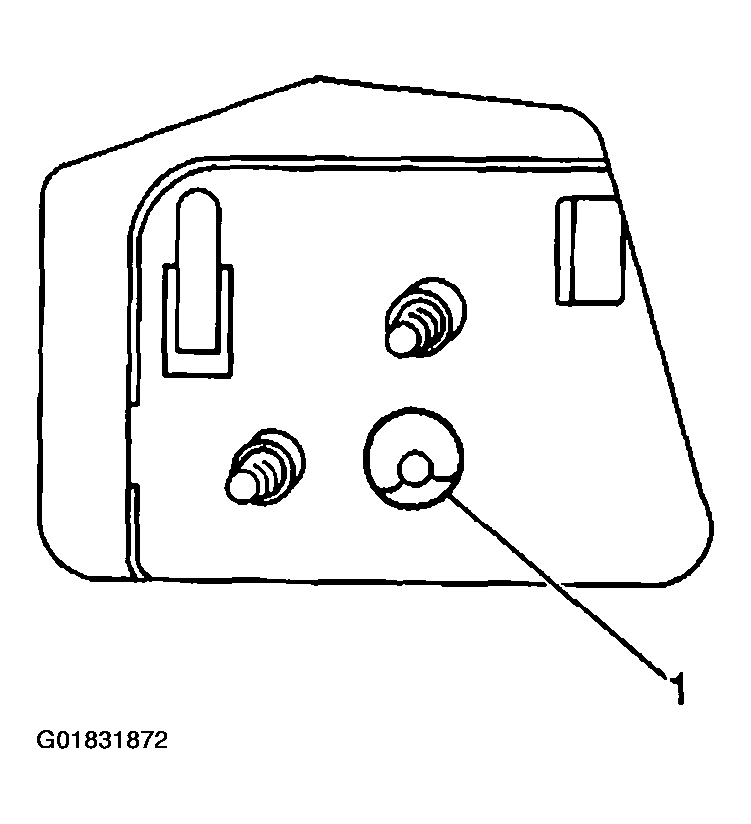

    Fig 2: Cone Adjuster Body Side Hinge Bolts
    G01831872Courtesy of GENERAL MOTORS CORP.
  5. Install the body side hinge bolts (1).

    Tighten

    Tighten the bolts to 33 N.m (24 lb ft).

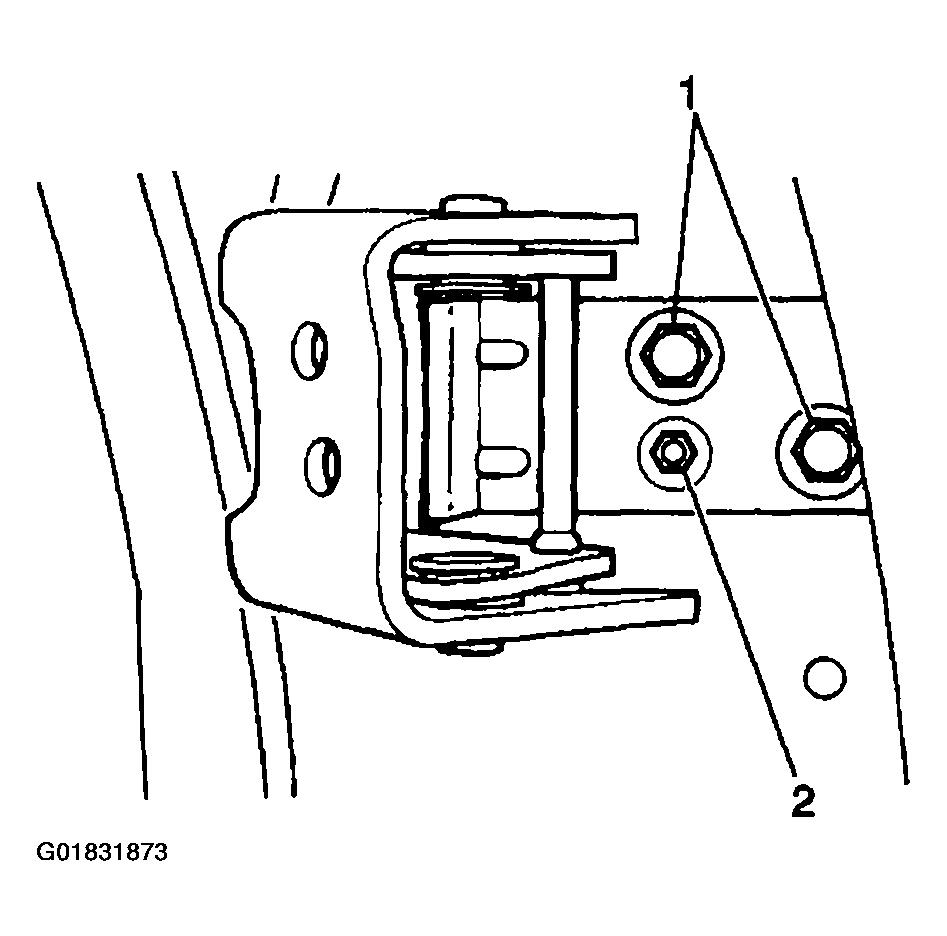

    Fig 3: Body Side Hinge Bolts
    G01831873Courtesy of GENERAL MOTORS CORP.
