Fore/Aft Adjustment

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front fender sound insulator. Refer to FENDER SOUND INSULATOR REPLACEMENT - FRONT .
Important: Do not completely remove the hinge to body bolts.
Loosen the body to hinge bolts (1).
Important: Do not remove the cone adjuster bolt.
Loosen the hinge to body cone adjuster bolt (3).
Important: Do not remove the hinge to body TORX® bolt (2).
Loosen the hinge to body TORX® bolt.
Adjust the door fore and aft as required.
NOTE: Refer to FASTENER NOTICE .

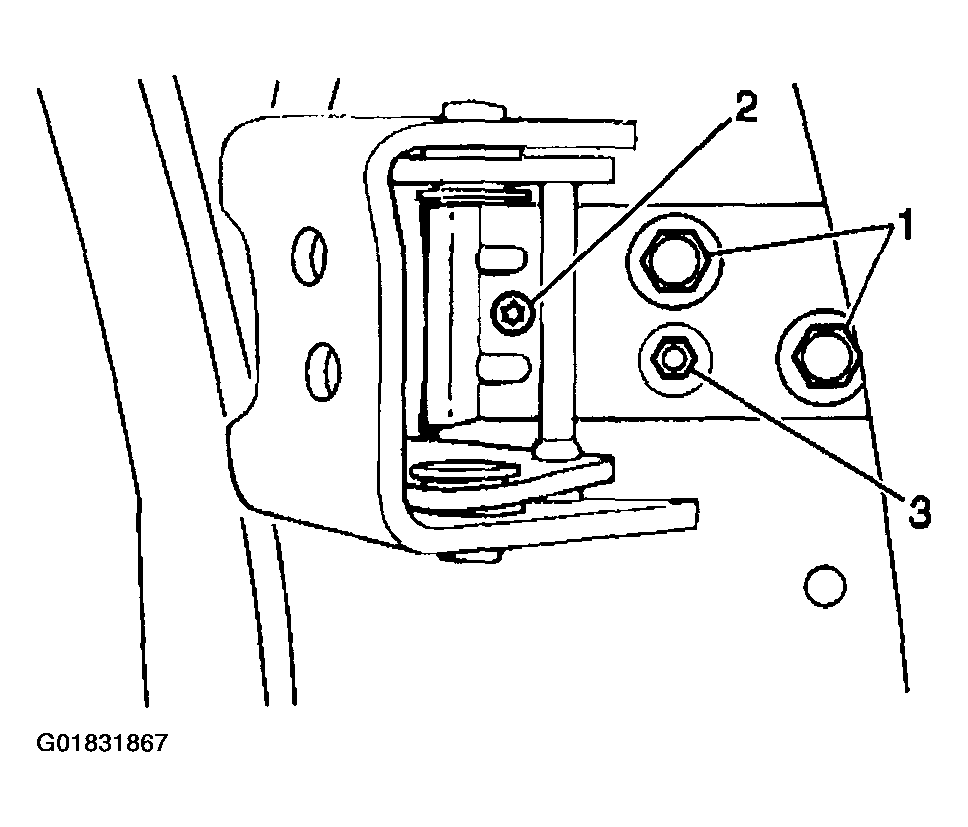

Fig 1: Body To Hinge Bolts
Courtesy of GENERAL MOTORS CORP.
Tighten the hinge to body TORX® bolt (2).
Tighten

Tighten the TORX® bolt to 10 N.m (89 lb in).
Tighten the hinge to body cone adjuster bolt (3).
Tighten

Tighten the bolt to 10 N.m (89 lb in).
Tighten the hinge to body bolts (1).
Tighten

Tighten the bolts to 33 N.m (24 lb ft).
Install the front fender sound insulator. Refer to FENDER SOUND INSULATOR REPLACEMENT - FRONT .
