Power Door Locks Inoperative

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

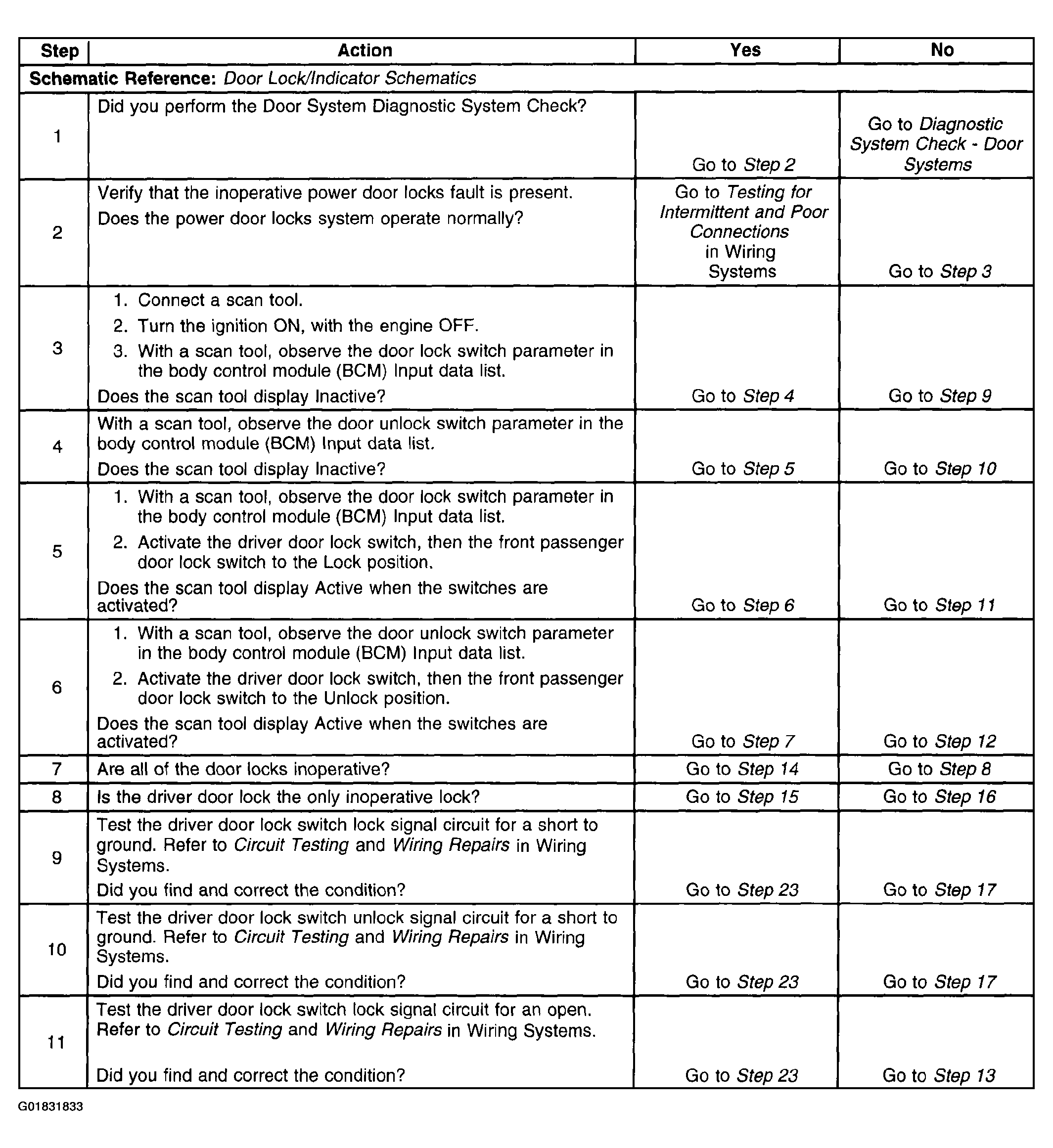

Fig 1: Power Door Locks Inoperative (1 Of 2)
G01831833Courtesy of GENERAL MOTORS CORP.

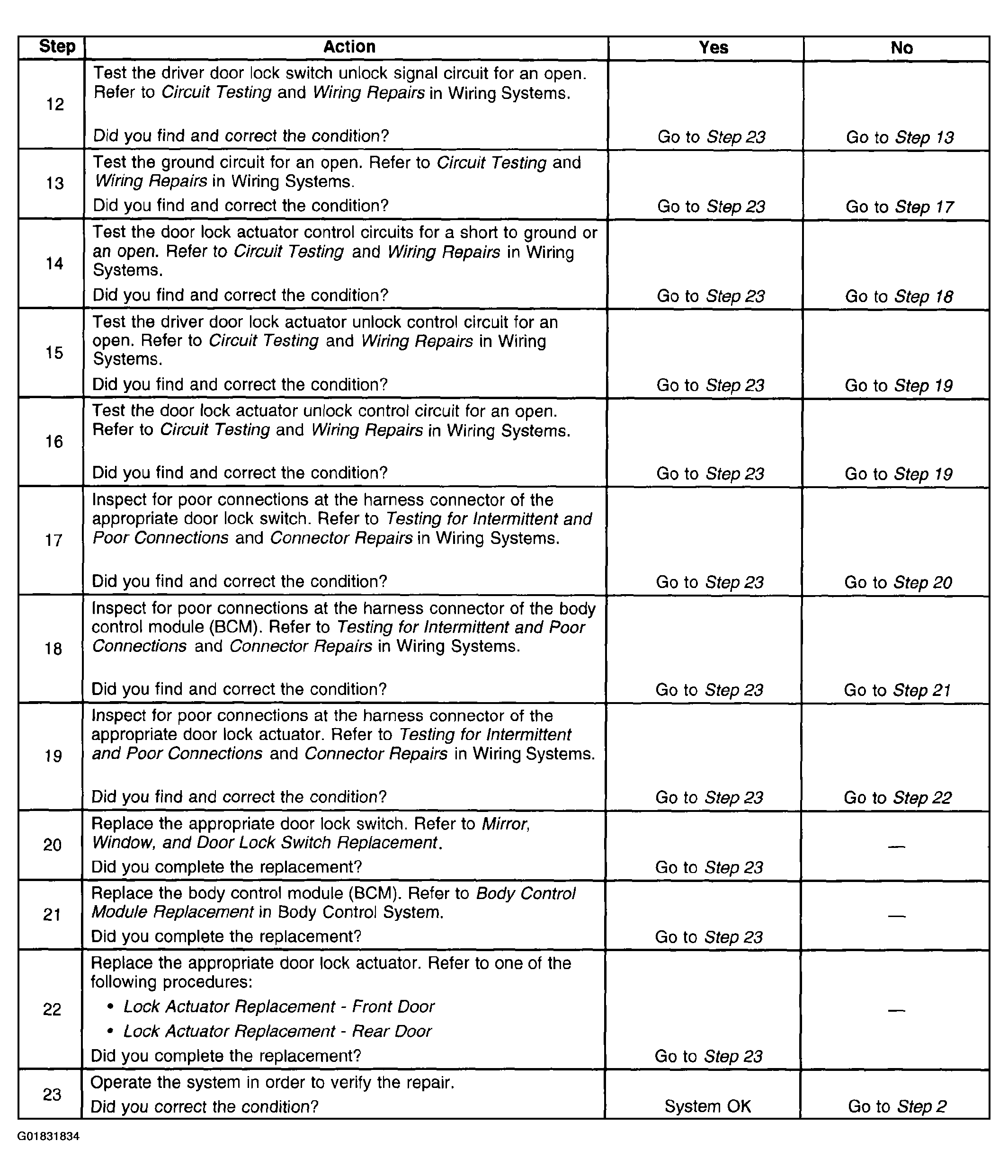

Fig 2: Power Door Locks Inoperative (2 Of 2)
G01831834Courtesy of GENERAL MOTORS CORP.
