Interior Lights Schematics (Vanity Mirrors, and Roof Lighting)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

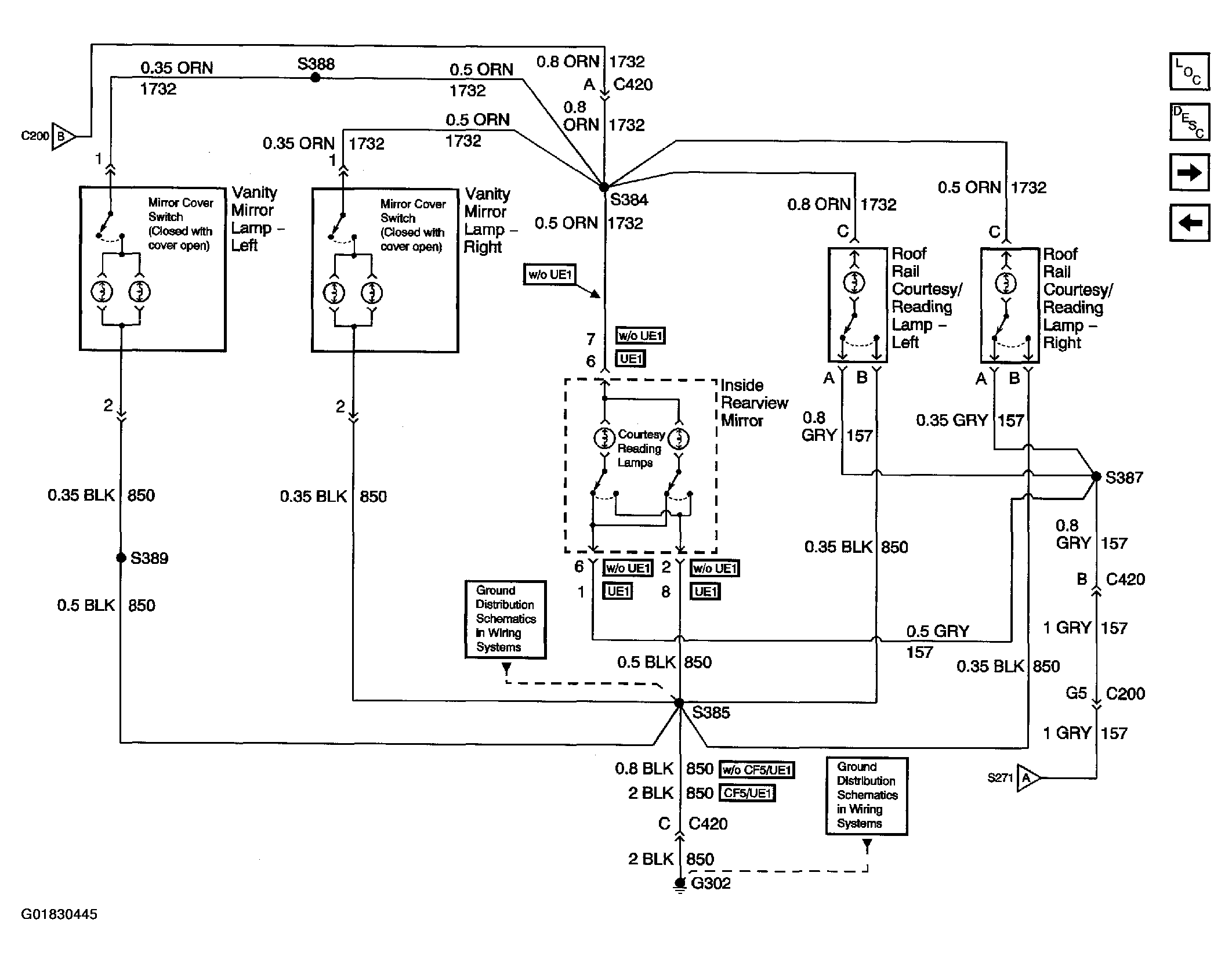

Fig 1: Interior Lights Schematics (Vanity Mirrors, and Roof Lighting)
G01830445Courtesy of GENERAL MOTORS CORP.
