Interior Lights Dimming Schematics (Steering Wheel, Doors, Garage Door Opener, and Console)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

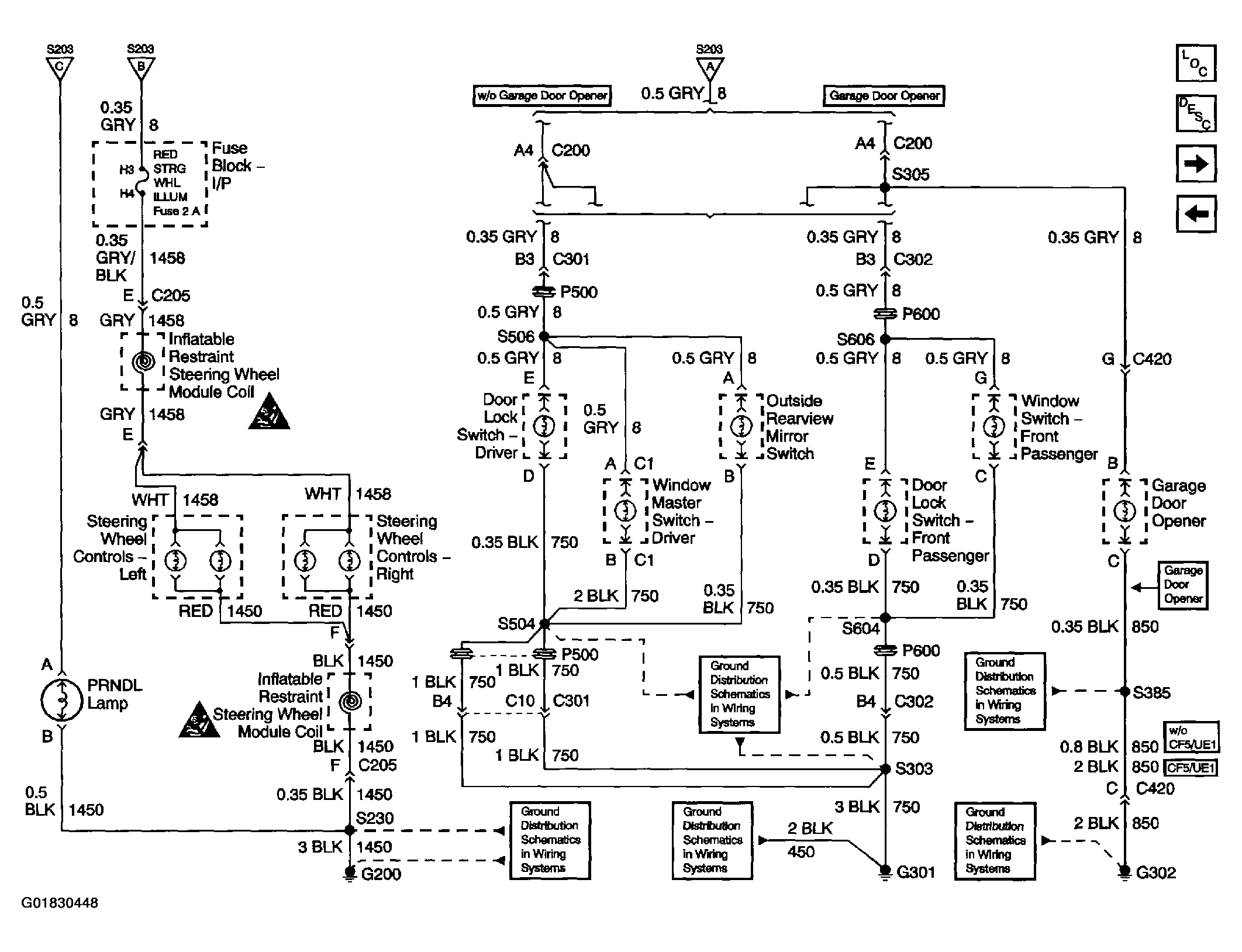

Fig 1: Interior Lights Dimming Schematics (Steering Wheel, Doors, Garage Door Opener, and Console)
G01830448Courtesy of GENERAL MOTORS CORP.
