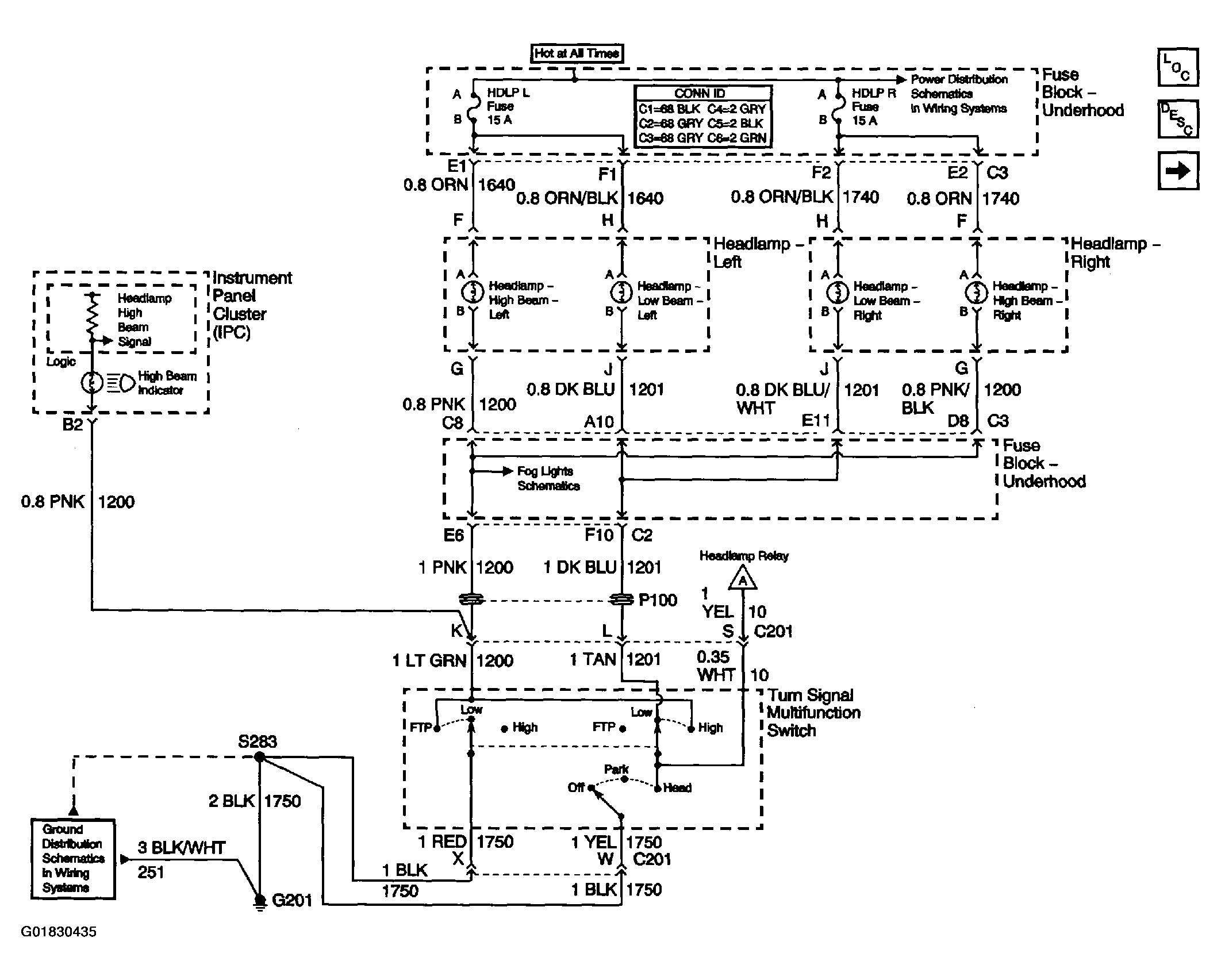

Headlights/Daytime Running Lights (DRL) Schematics (Headlamp Left, Headlamp Right, Multifunction Turn Signal Level, and High Beam Indicator)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
