Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the assist strap covers using a small flat-bladed tool.
  2. Remove the screws from the assist strap.

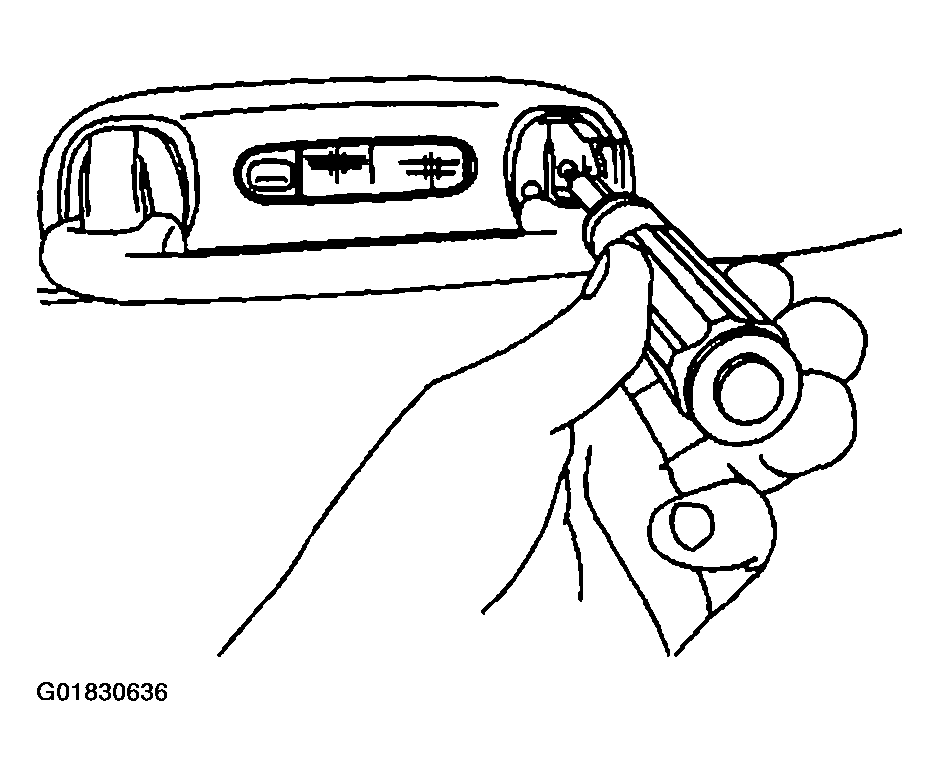

    Fig 1: Removing Screws From Assist Strap Covers
    G01830636Courtesy of GENERAL MOTORS CORP.
  3. Remove the assist strap.

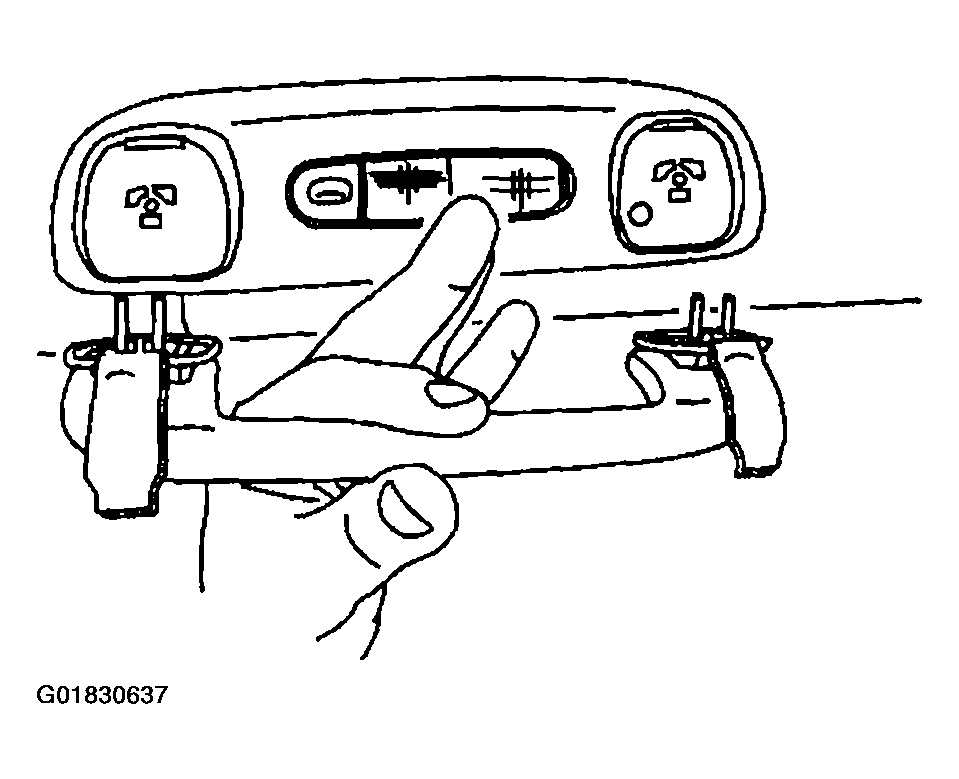

    Fig 2: Removing Assist Strap
    G01830637Courtesy of GENERAL MOTORS CORP.

    Important:  The side rail lamp base plate plastic retainers might drop out. Note the location of the retainers.

  4. Remove the side rail lamp bezel from the roof.
  5. Slide the side rail lamp socket from the bezel.

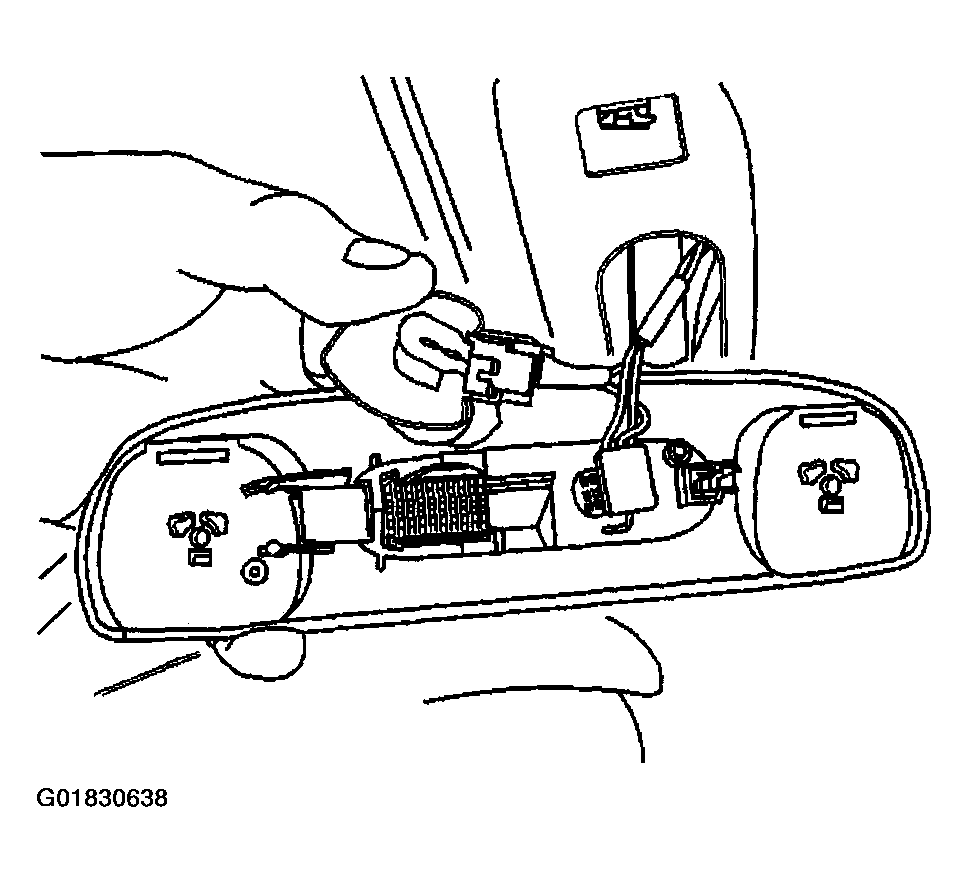

    Fig 3: Removing Side Rail Lamp Socket
    G01830638Courtesy of GENERAL MOTORS CORP.
  6. Remove the bulb.

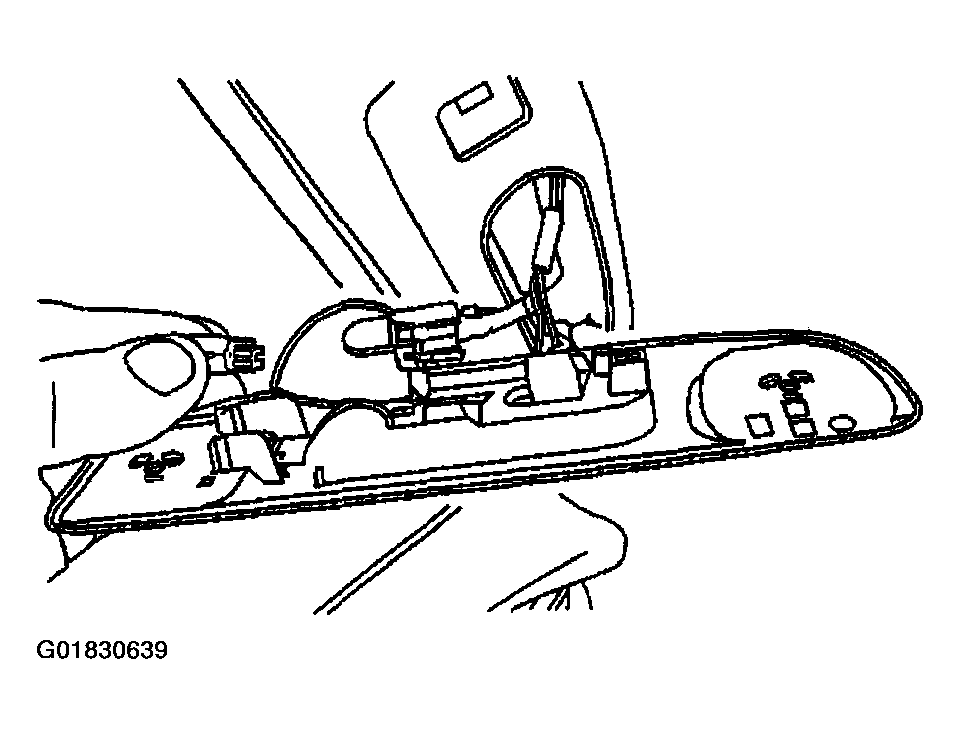

    Fig 4: Removing Bulb
    G01830639Courtesy of GENERAL MOTORS CORP.
