Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb.

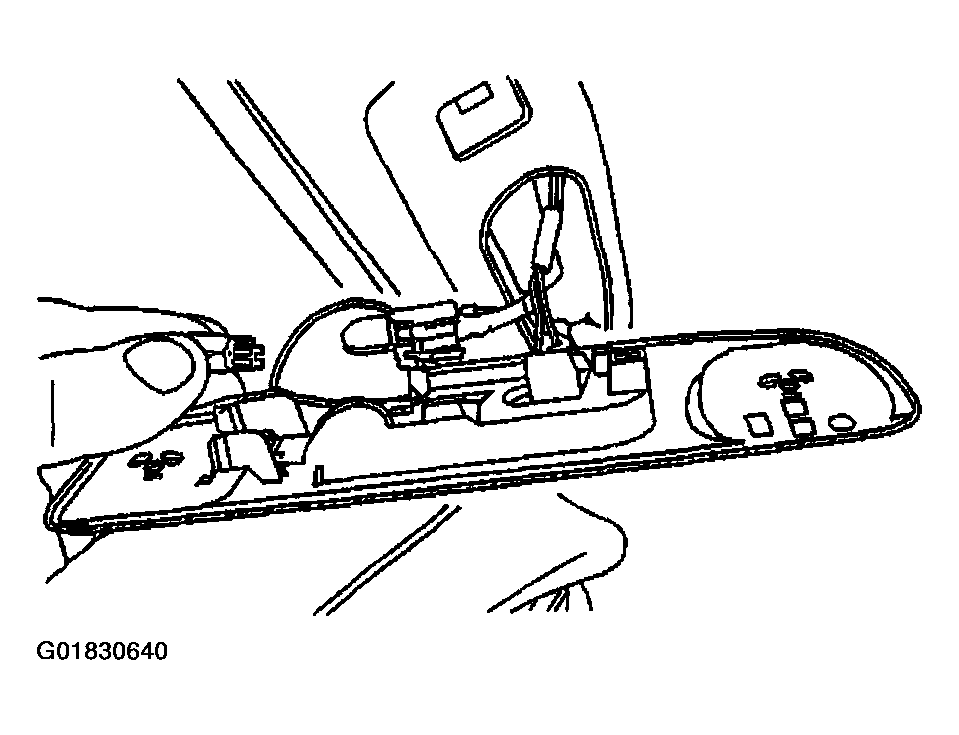

Fig 1: Installing Bulb
Courtesy of GENERAL MOTORS CORP.
Slide the side rail lamp socket to the bezel.
Position the side rail lamp bezel to the roof.

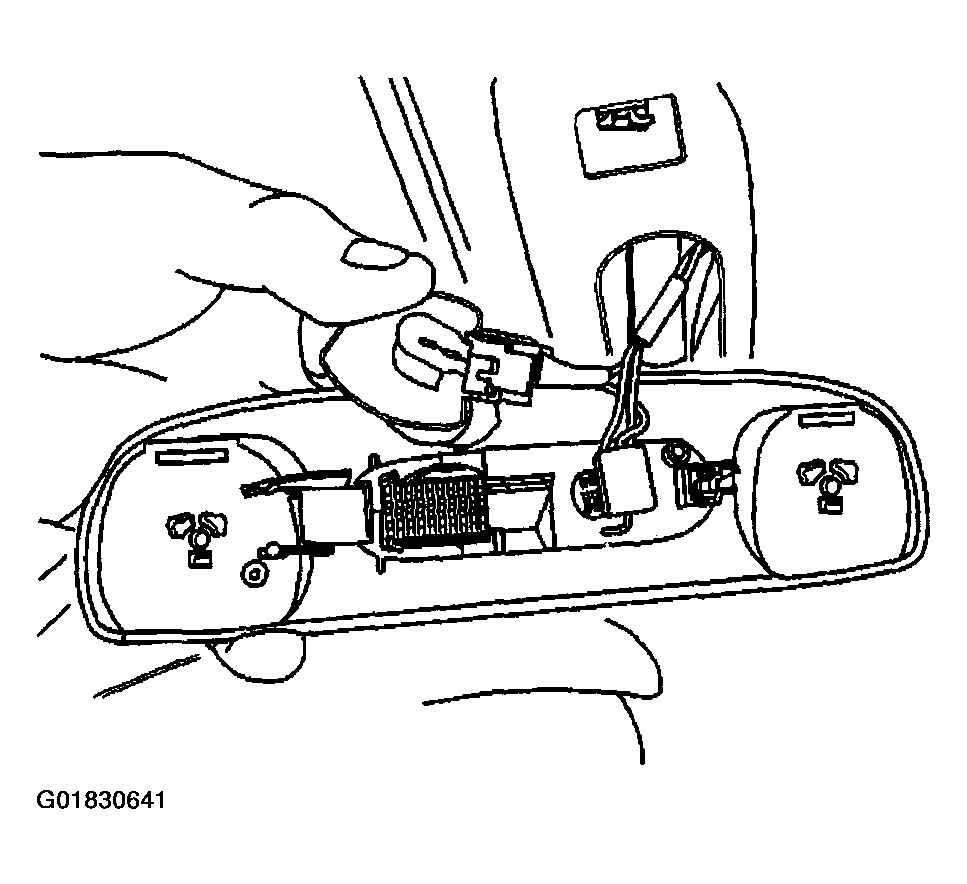

Fig 2: Installing Side Rail Lamp Socket
Courtesy of GENERAL MOTORS CORP.
Position the assist strap to the bezel.

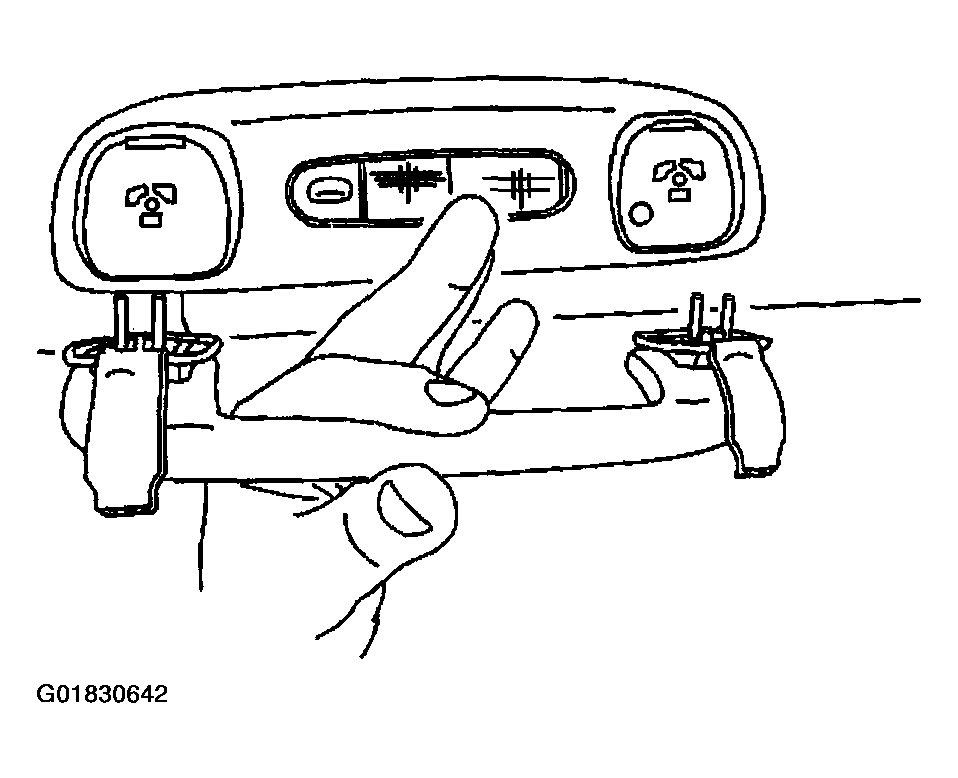

Fig 3: Installing Assist Strap To Bezel
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the screws.
Tighten

Tighten the side rail lamp assist handle screws to 2 N.m (18 lb in).
Close the assist strap covers by pressing into place until fully seated.

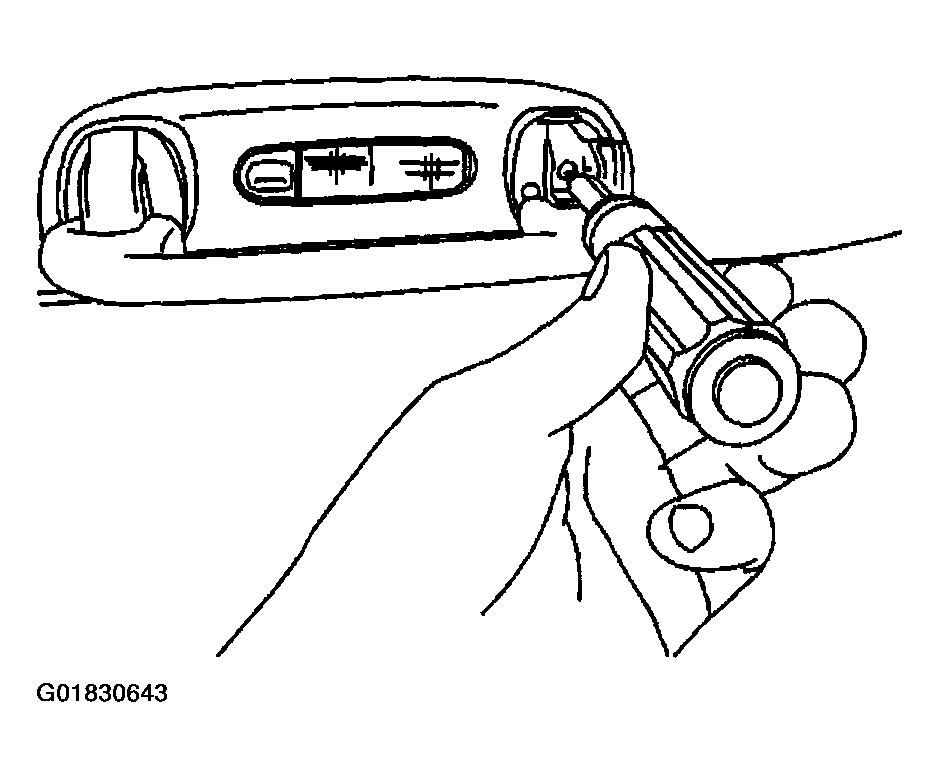

Fig 4: Installing Assist Strap Covers & Screws
Courtesy of GENERAL MOTORS CORP.
