Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Using a small flat-bladed tool, carefully release the rear compartment lamp retaining tabs and lower the lamp.
  3. Remove the bulb from the lamp socket.

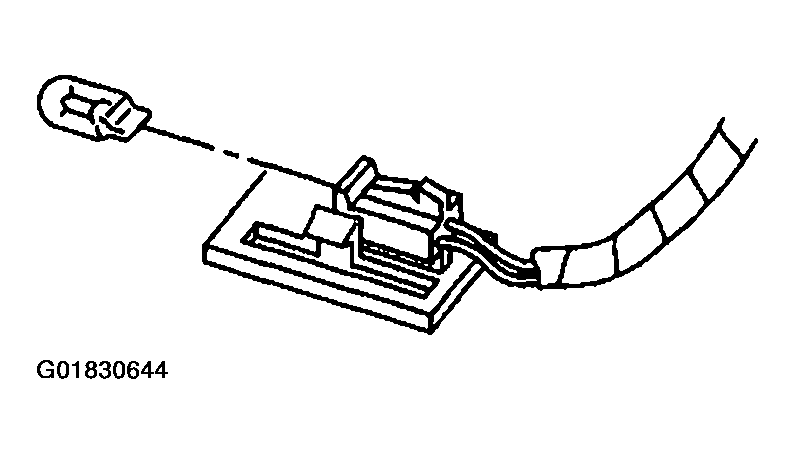

    Fig 1: Removing Rear Compartment Lamp Bulb
    G01830644Courtesy of GENERAL MOTORS CORP.
