Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the rear compartment lamp socket.
  2. Align the rear compartment lamp, then press into place to secure the lamp retaining tabs.
  3. Close the rear compartment lid.

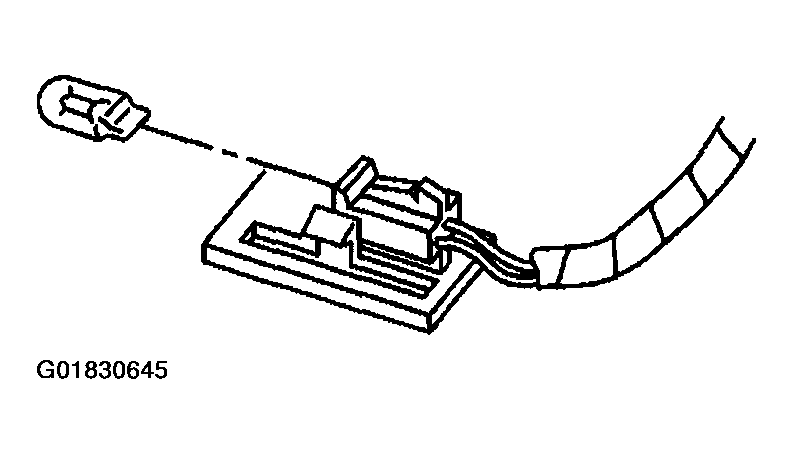

    Fig 1: Installing Rear Compartment Lamp Bulb
    G01830645Courtesy of GENERAL MOTORS CORP.
