Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws retaining the high-mounted stop lamp to the rear end spoiler.
  2. Remove the high-mounted stop lamp from the spoiler.
  3. Disconnect the electrical connector from the high-mounted stop lamp assembly.

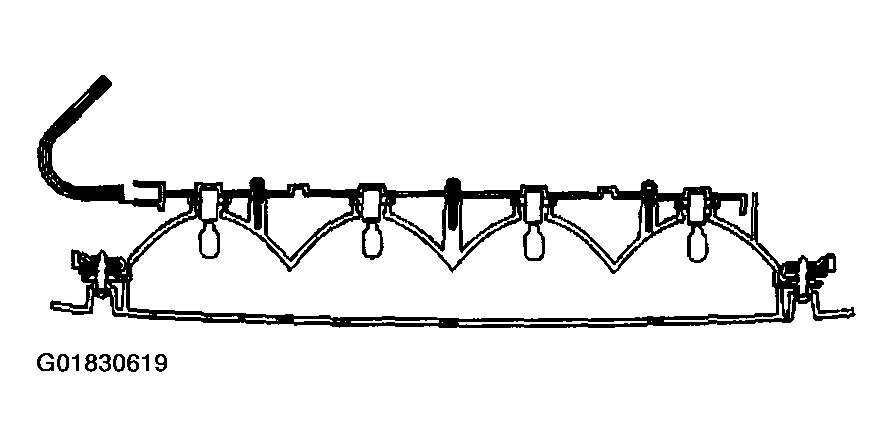

    Fig 1: Removing High Mounted Stop Lamp, Screws & Electrical Connector
    G01830619Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws retaining the bulb/socket bar to the stop lamp housing, if replacing any bulbs.
  5. Remove the bulb/socket bar from the lamp housing, if replacing any bulbs.
  6. Remove the bulbs from the sockets, if replacing any bulbs.

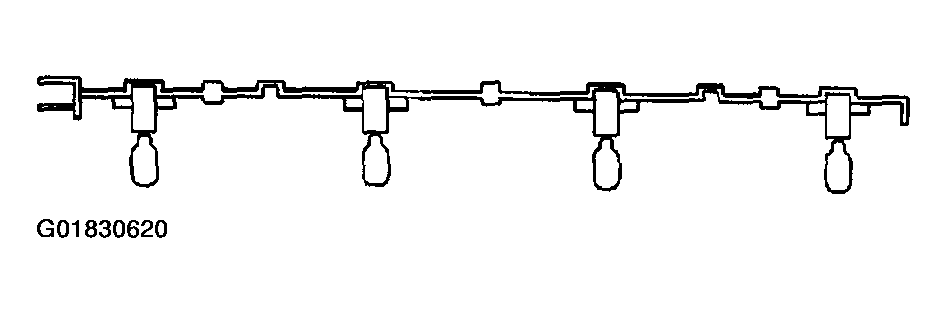

    Fig 2: Removing Bulb/Socket Bar From High Mounted Stop Lamp Housing, Screws & Bulbs From Bulb Socket
    G01830620Courtesy of GENERAL MOTORS CORP.
