Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Depress the retaining tab on the rear of the high-mounted stop lamp vent and lower the vent.

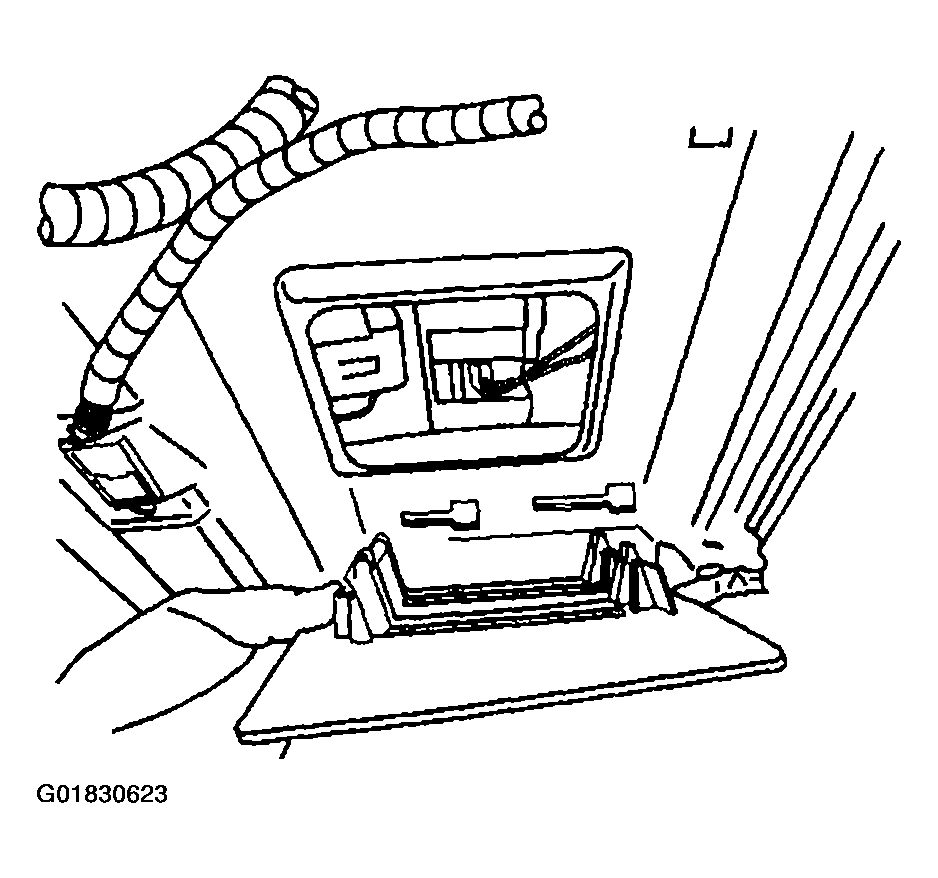

    Fig 1: Removing High-Mounted Stop Lamp Vent
    G01830623Courtesy of GENERAL MOTORS CORP.
  3. Rotate the high-mounted stop lamp socket(s) counterclockwise to release from the high-mounted stop lamp.
  4. Remove the bulb(s) from the socket(s).

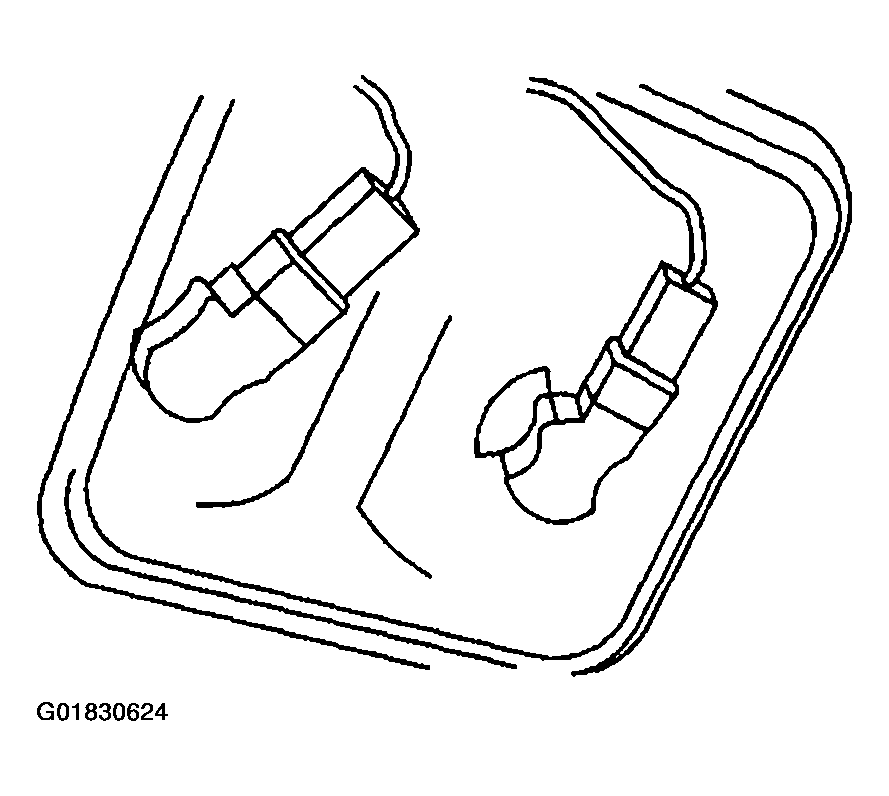

    Fig 2: Removing High Mounted Stop Lamp Sockets & Bulbs
    G01830624Courtesy of GENERAL MOTORS CORP.
