Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT
  2. Remove the steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT
  3. Grasp the hazard and turn signal flasher and slide the flasher to the right to release the flasher tabs from the slots on the BCM bracket.
  4. Disconnect the electrical connector from the hazard and turn signal flasher.

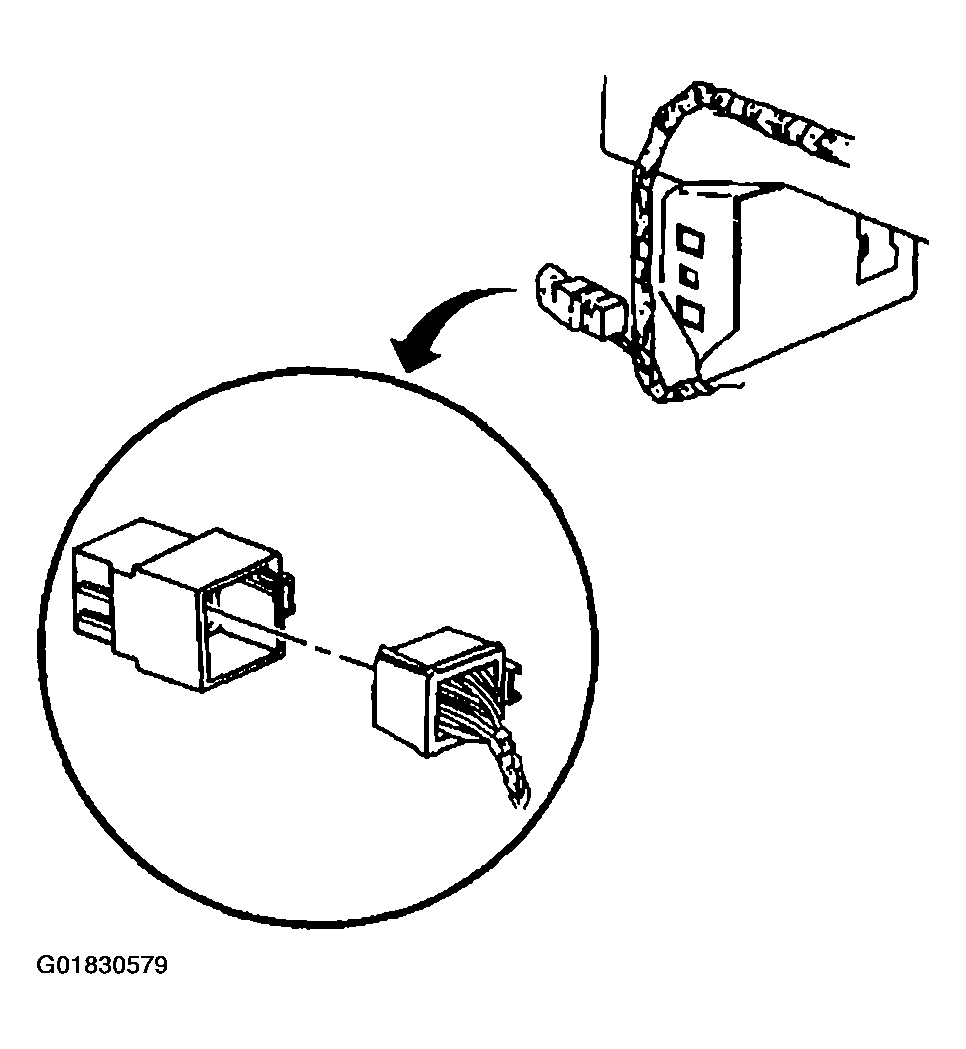

    Fig 1: Hazard & Turn Signal Flasher Electrical Connector
    G01830579Courtesy of GENERAL MOTORS CORP.
