Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the hazard and turn signal flasher.
  2. Position the flasher to the BCM bracket, then slide the flasher to the left to secure the flasher tabs into the retaining slots on the bracket.
  3. Install the steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT
  4. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT

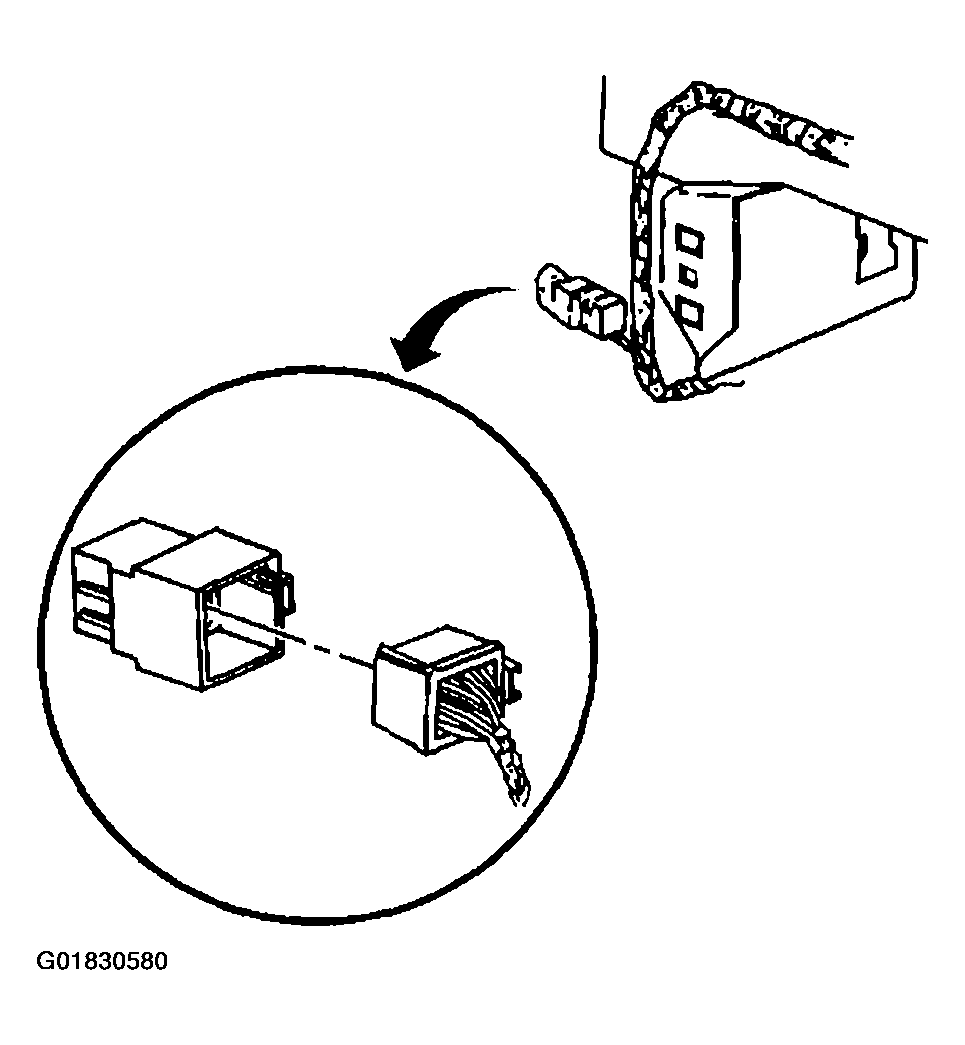

    Fig 1: Hazard & Turn Signal Flasher Electrical Connector
    G01830580Courtesy of GENERAL MOTORS CORP.
