Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE
  2. Disconnect the electrical connector from the front fog lamp.
  3. Remove the front fascia lower support. Refer to FASCIA SUPPORT REPLACEMENT - FRONT BUMPER LOWER

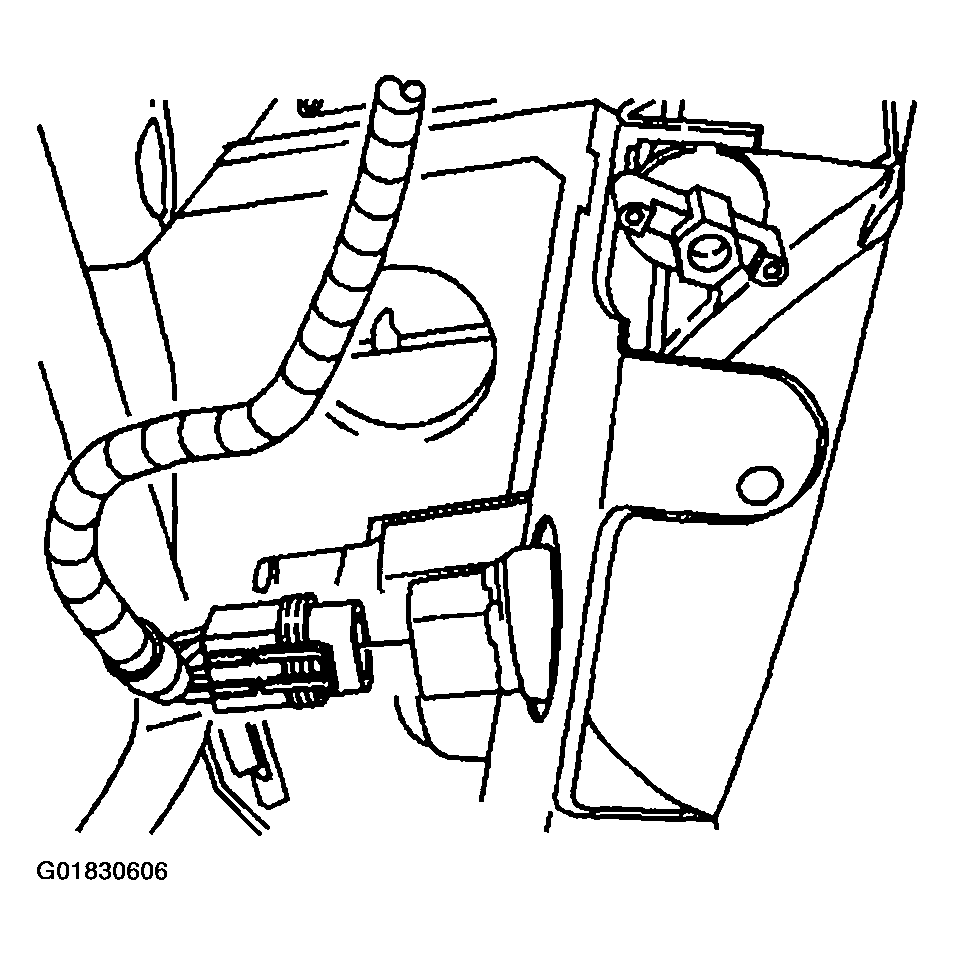

    Fig 1: Removing Electrical Connector From Front Fog Lamp
    G01830606Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

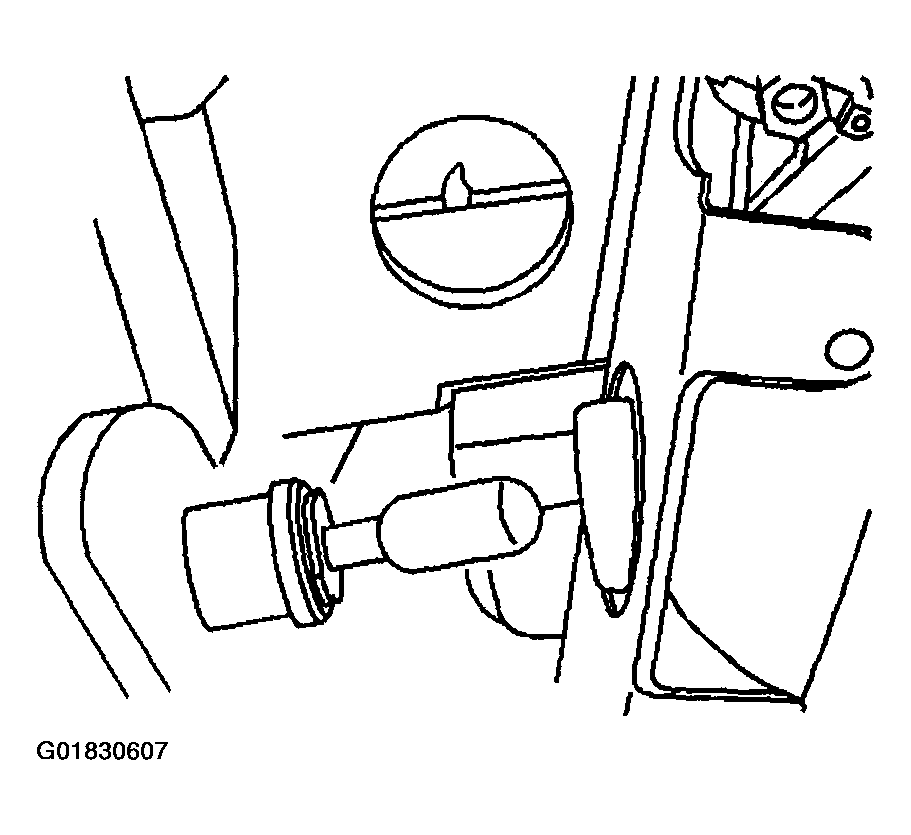

    Fig 2: Removing Fog Lamp Bulb From Fog Lamp
    G01830607Courtesy of GENERAL MOTORS CORP.
  5. Remove the front fog lamp nuts from the front bumper impact bar.
  6. Remove the front fog lamp from the vehicle.

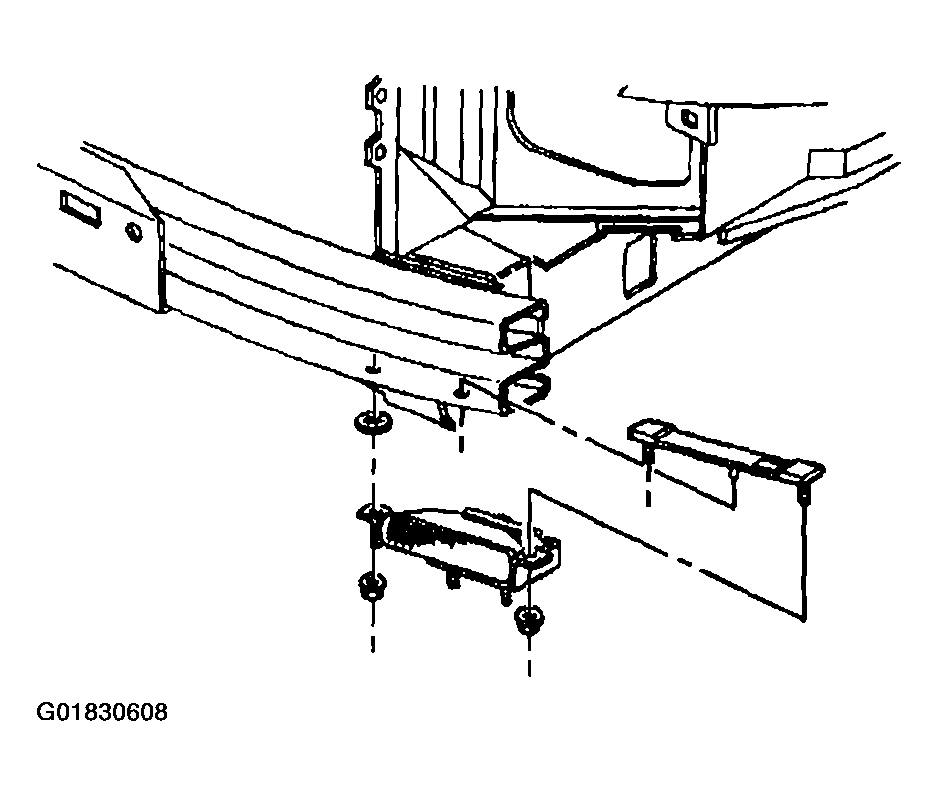

    Fig 3: Removing Front Fog Lamp Nuts From Front Bumper Impact Bar
    G01830608Courtesy of GENERAL MOTORS CORP.
