Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to HALOGEN BULB CAUTION .

Remove the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE

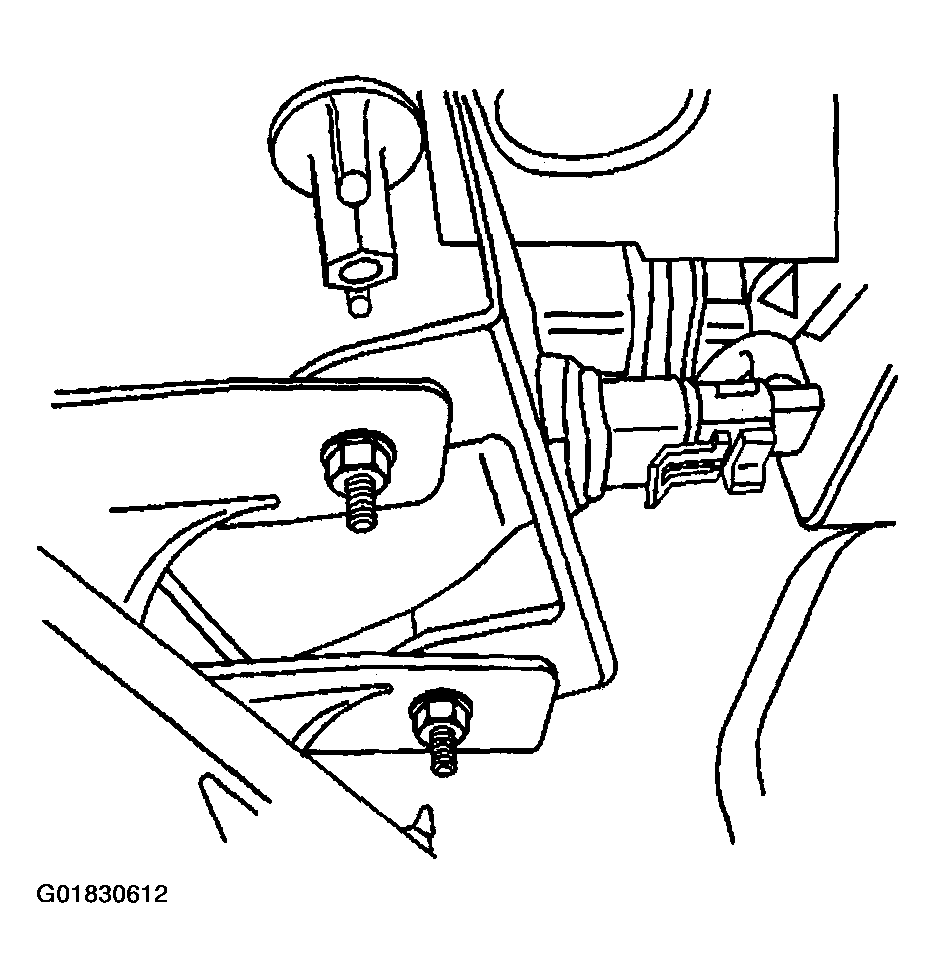

Fig 1: Removing Front Bumper Fascia Deflector
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the front fog lamp bulb/socket.

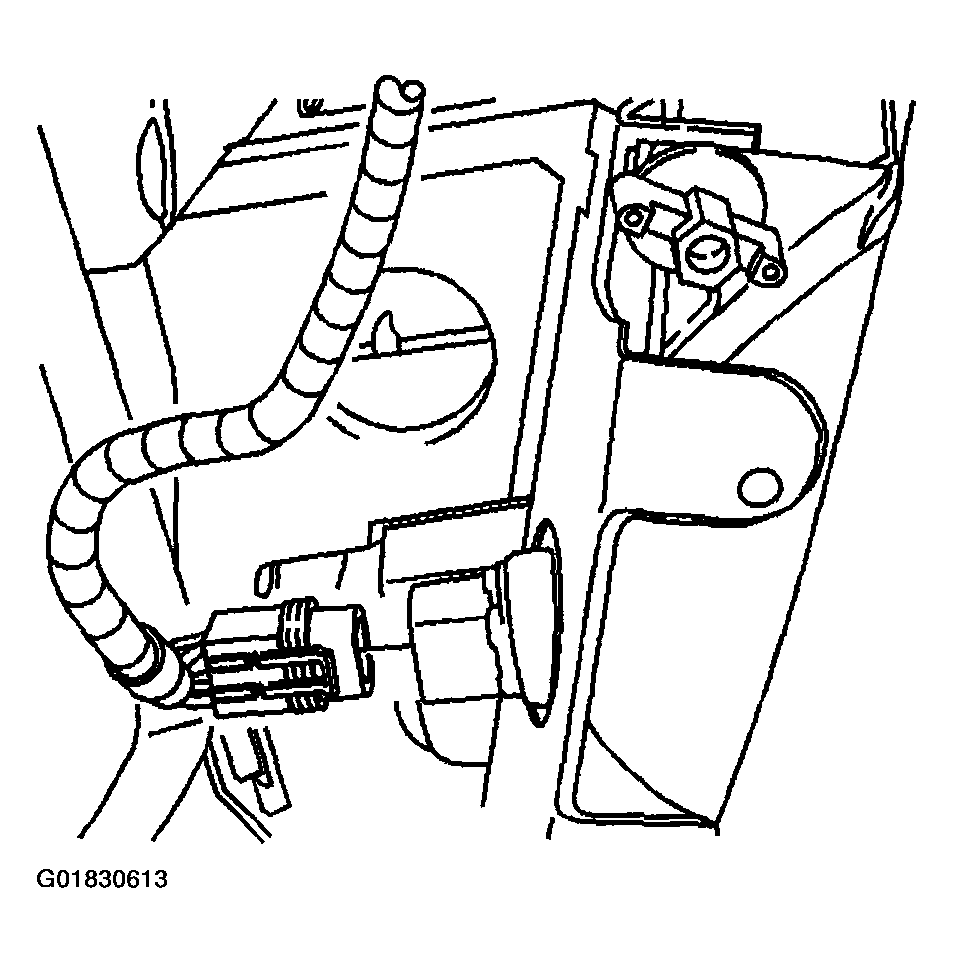

Fig 2: Removing Electrical Connector From Front Fog Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

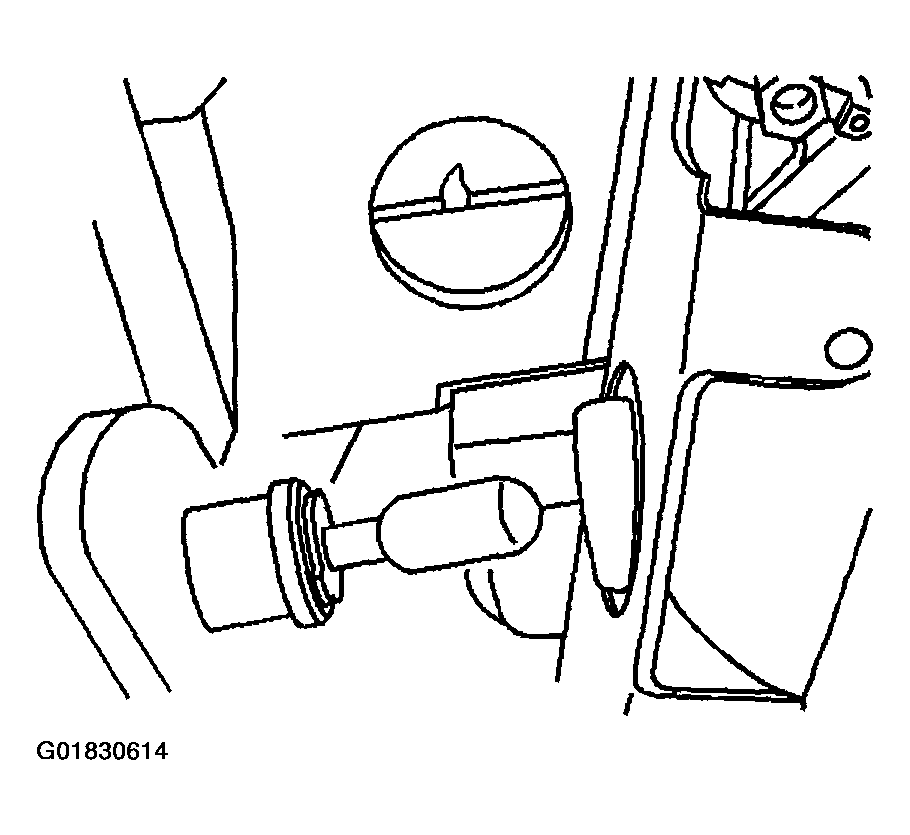

Fig 3: Removing Fog Lamp Bulb From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
