Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR

    Important:  Lift the instrument panel (IP) upper trim panel carefully. The retainer clips could fall into the IP.

  2. Lift the IP upper trim panel approximately 51 mm (2 in) and pull towards you to release the retainers from the IP upper trim panel.
  3. Rotate the daytime running lamp (DRL) ambient light sensor (1) counterclockwise. Remove the DRL ambient light sensor from the IP upper trim panel.
  4. Disconnect the electrical connector from the DRL ambient light sensor.

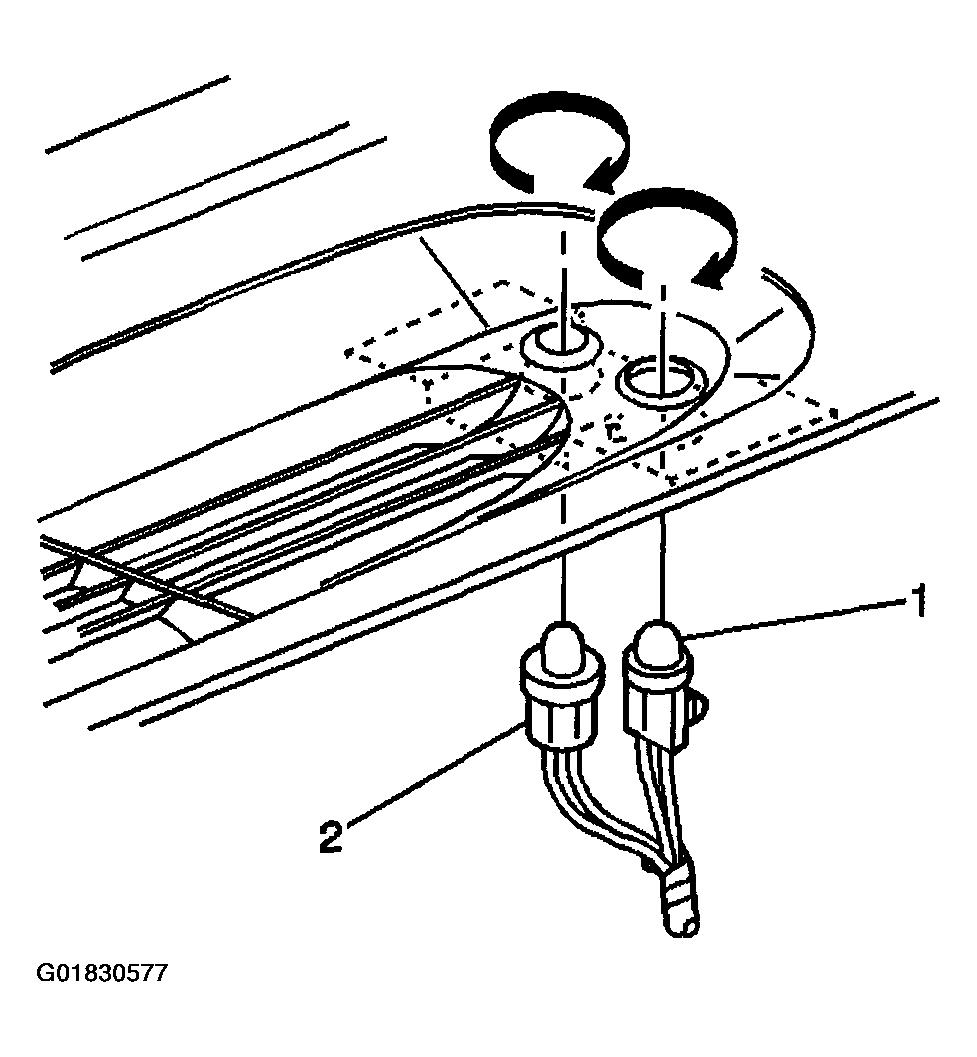

    Fig 1: Removing DRL Ambient Light Sensor From IP Upper Trim Panel
    G01830577Courtesy of GENERAL MOTORS CORP.
