Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the DRL ambient light sensor.
  2. Install the DRL ambient light sensor to the IP upper trim panel. Rotate the sensor clockwise to secure.
  3. Align the IP upper trim panel retainers with the slots in the IP. Push forward and down on the IP upper trim panel to lock into place.
  4. Install the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR

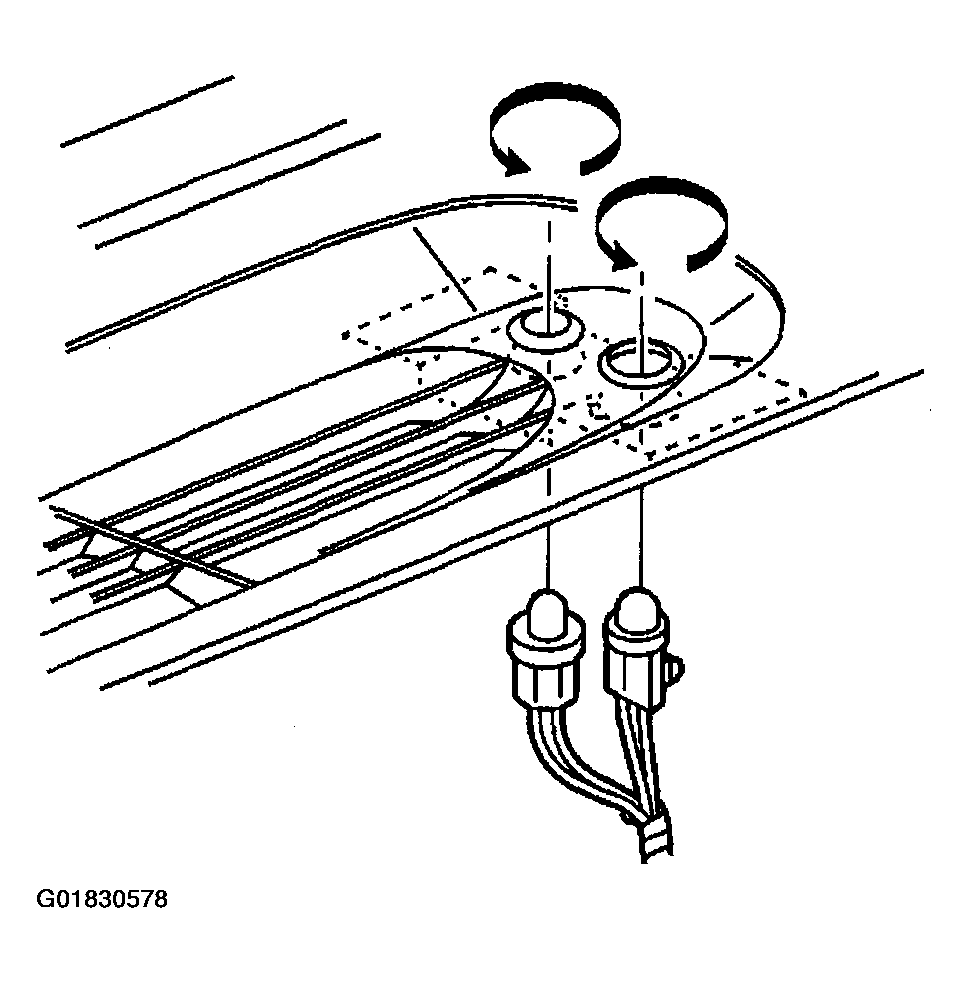

    Fig 1: Installing DRL Ambient LIght Sensor To IP Upper Trim Panel
    G01830578Courtesy of GENERAL MOTORS CORP.
