Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the appropriate instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  2. Rotate the courtesy lamp socket counterclockwise to release.
  3. Remove the bulb from the socket, if replacing the bulb.

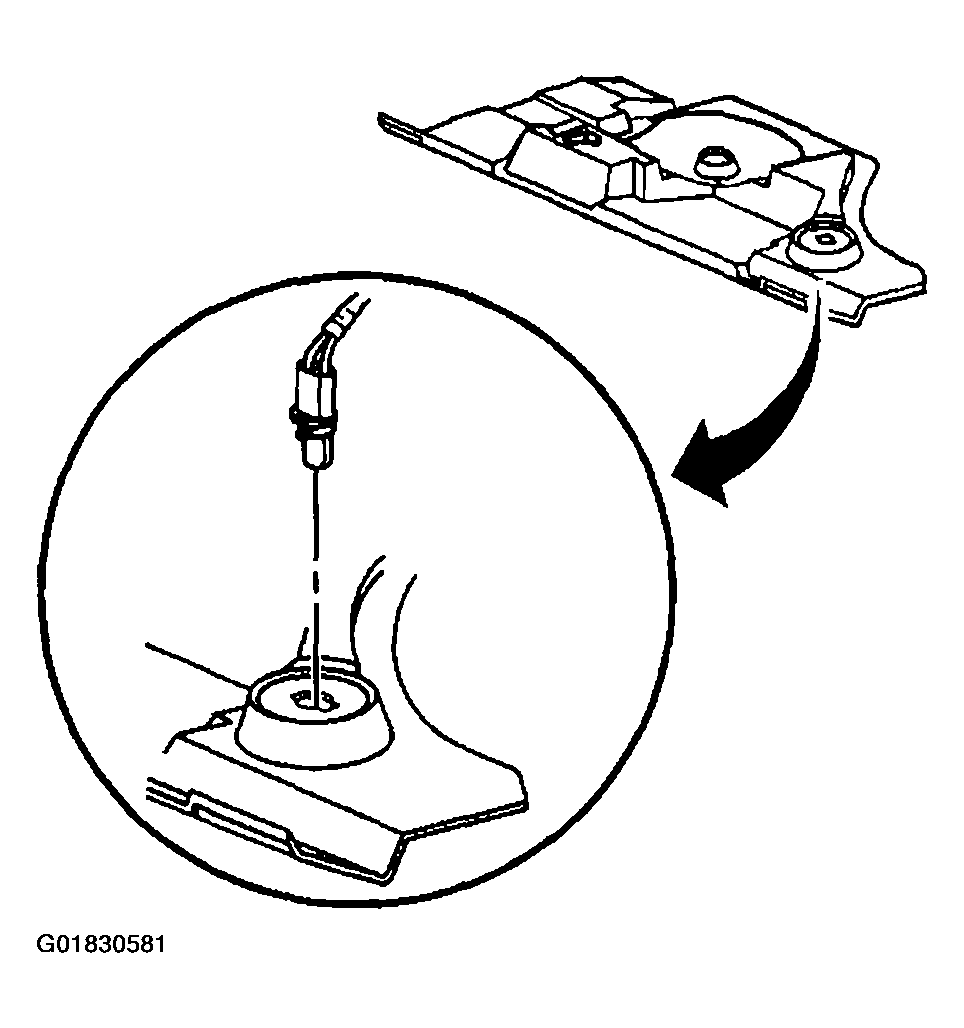

    Fig 1: Removing Courtesy Lamp Bulb From Socket
    G01830581Courtesy of GENERAL MOTORS CORP.
