Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket, if removed.
  2. Install the courtesy lamp socket to the IP insulator, then rotate clockwise to secure.
  3. Install the IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.

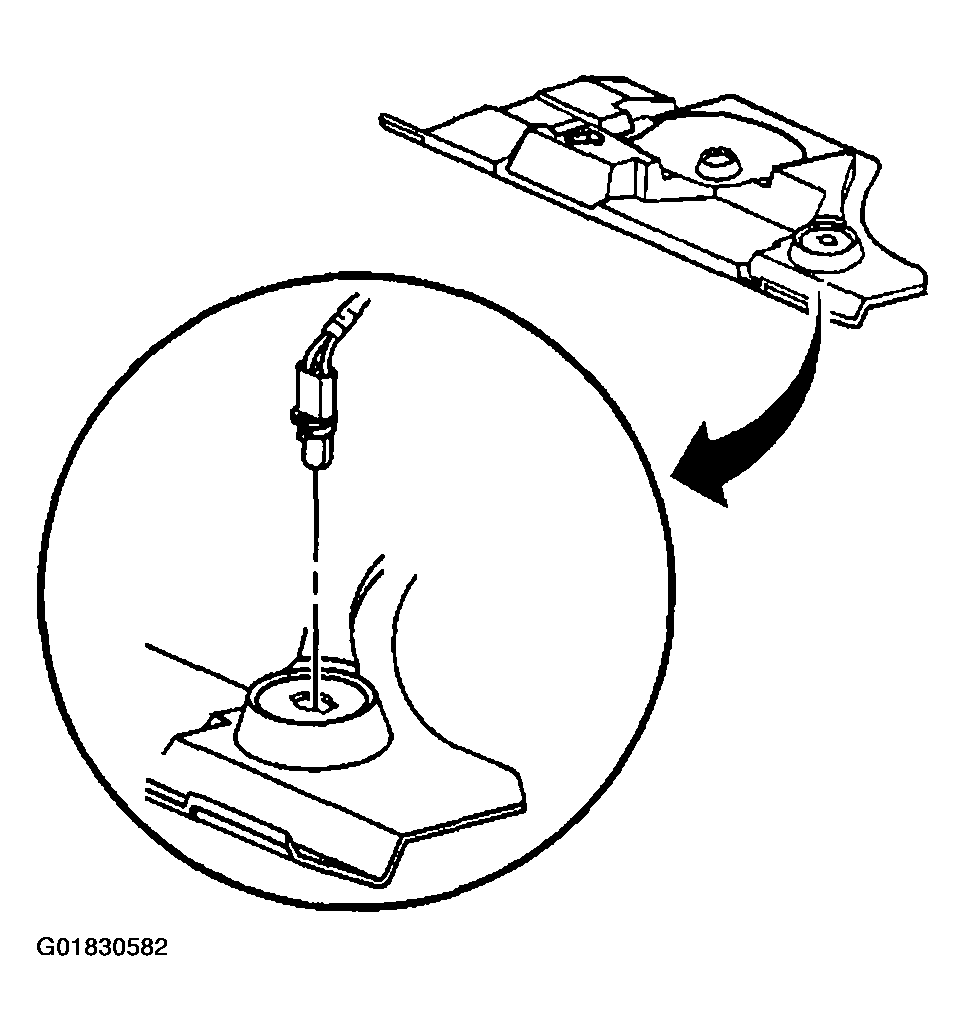

    Fig 1: Installing Courtesy Lamp Bulb To Socket
    G01830582Courtesy of GENERAL MOTORS CORP.
