Park Lamps Inoperative

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

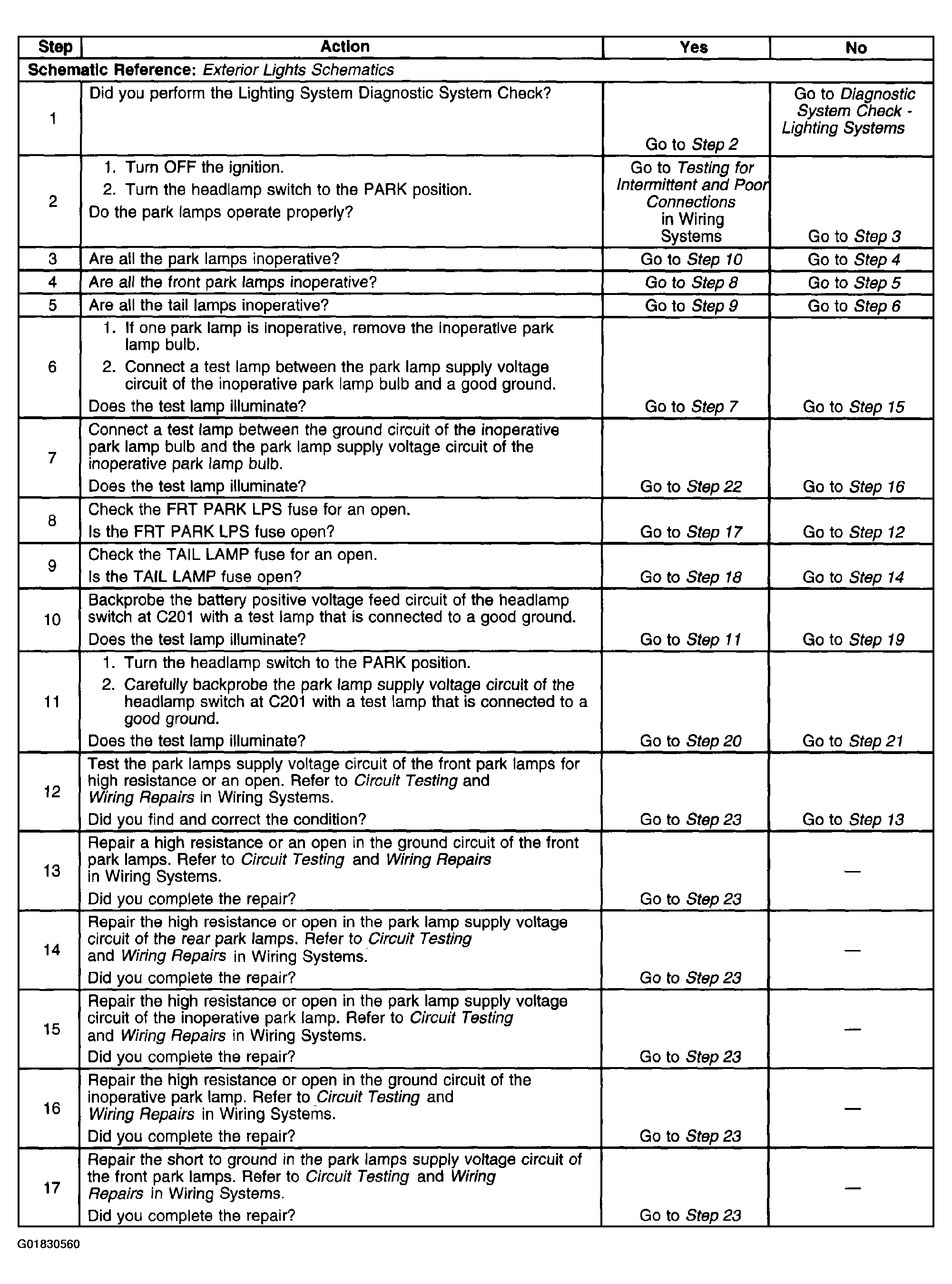

Fig 1: Park Lamps Inoperative (1 Of 2)
G01830560Courtesy of GENERAL MOTORS CORP.

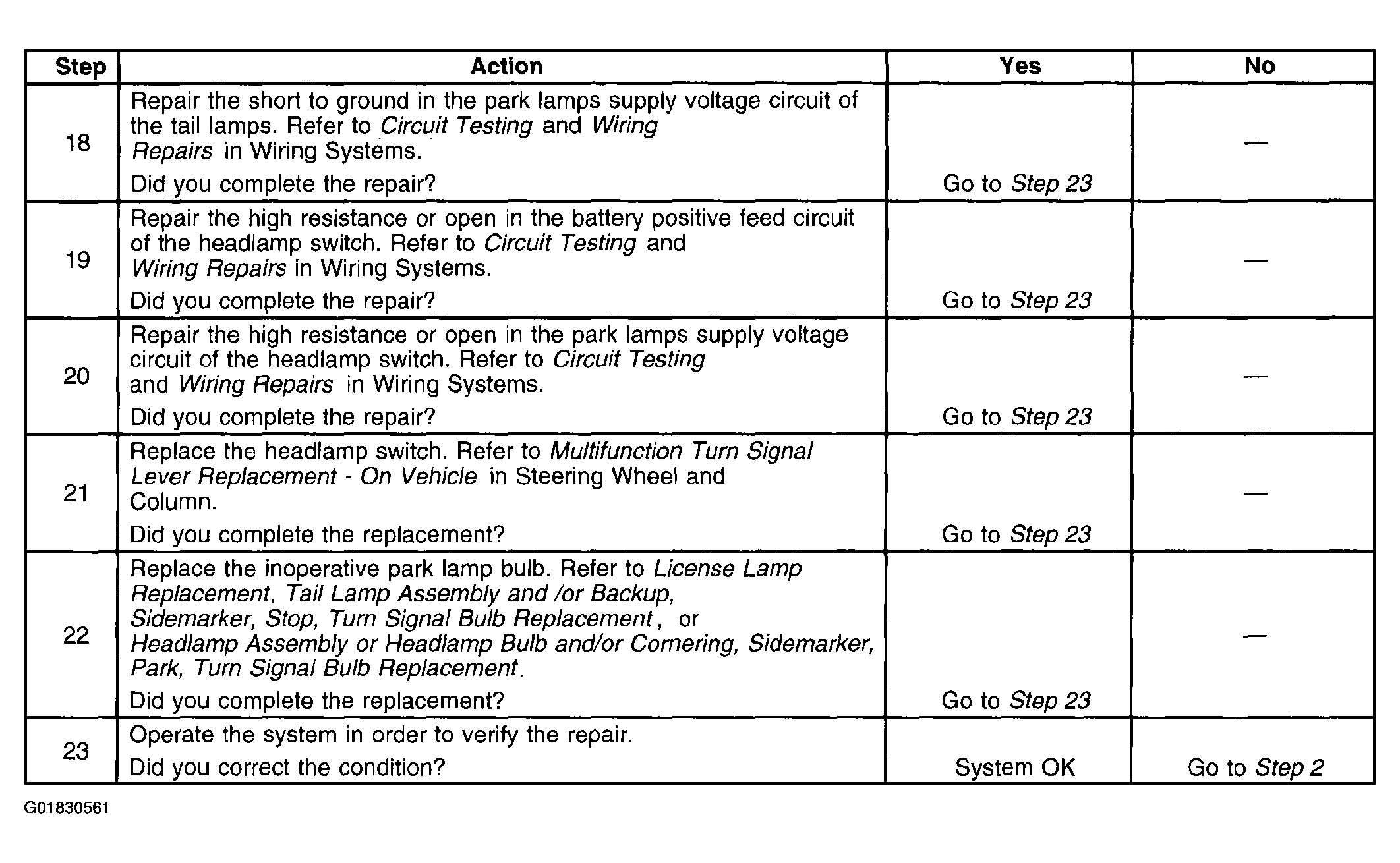

Fig 2: Park Lamps Inoperative (2 Of 2)
G01830561Courtesy of GENERAL MOTORS CORP.
