Fog Lamps Always On

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

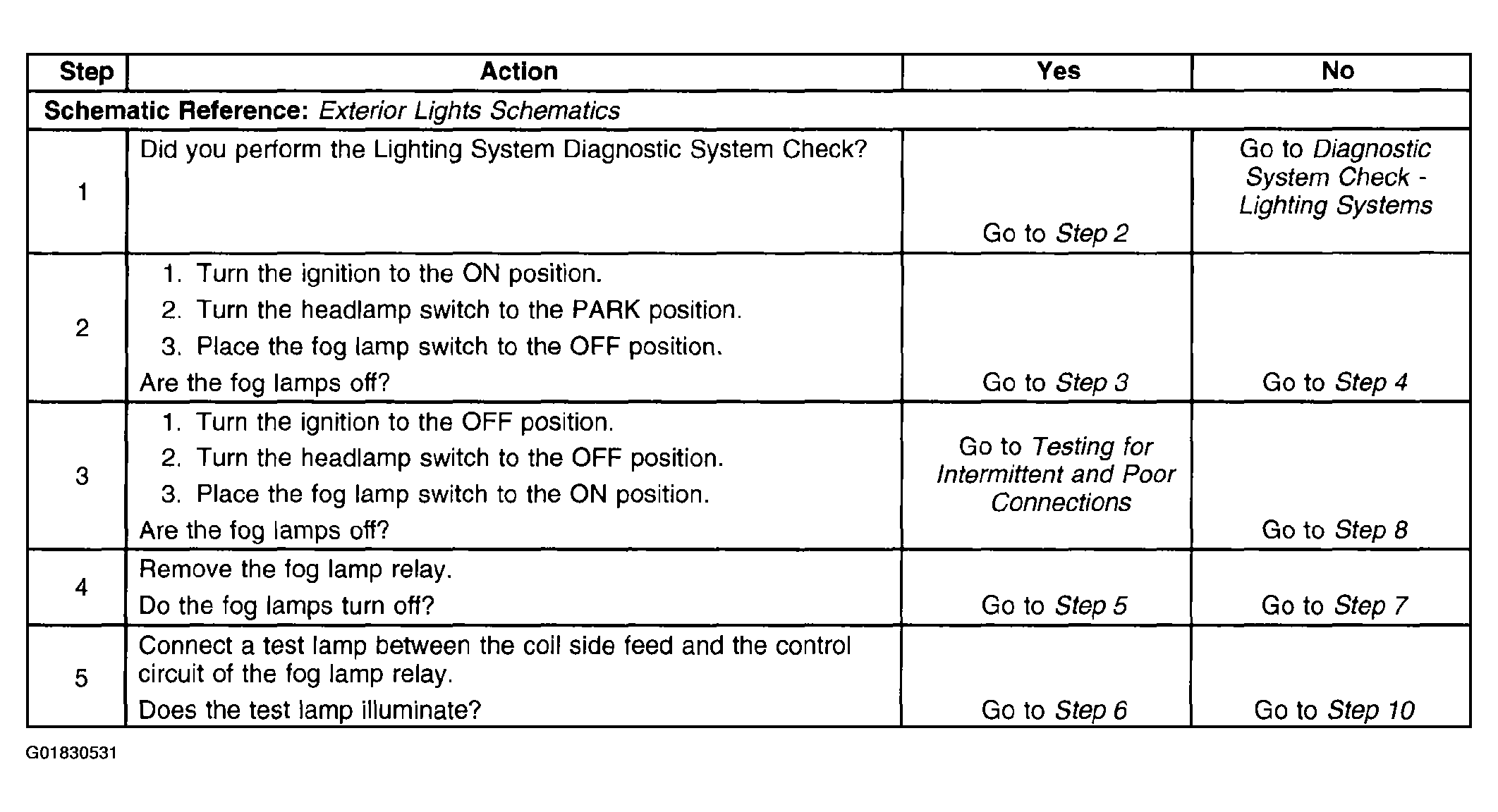

Fig 1: Fog Lamps Always On (1 Of 2)
G01830531Courtesy of GENERAL MOTORS CORP.

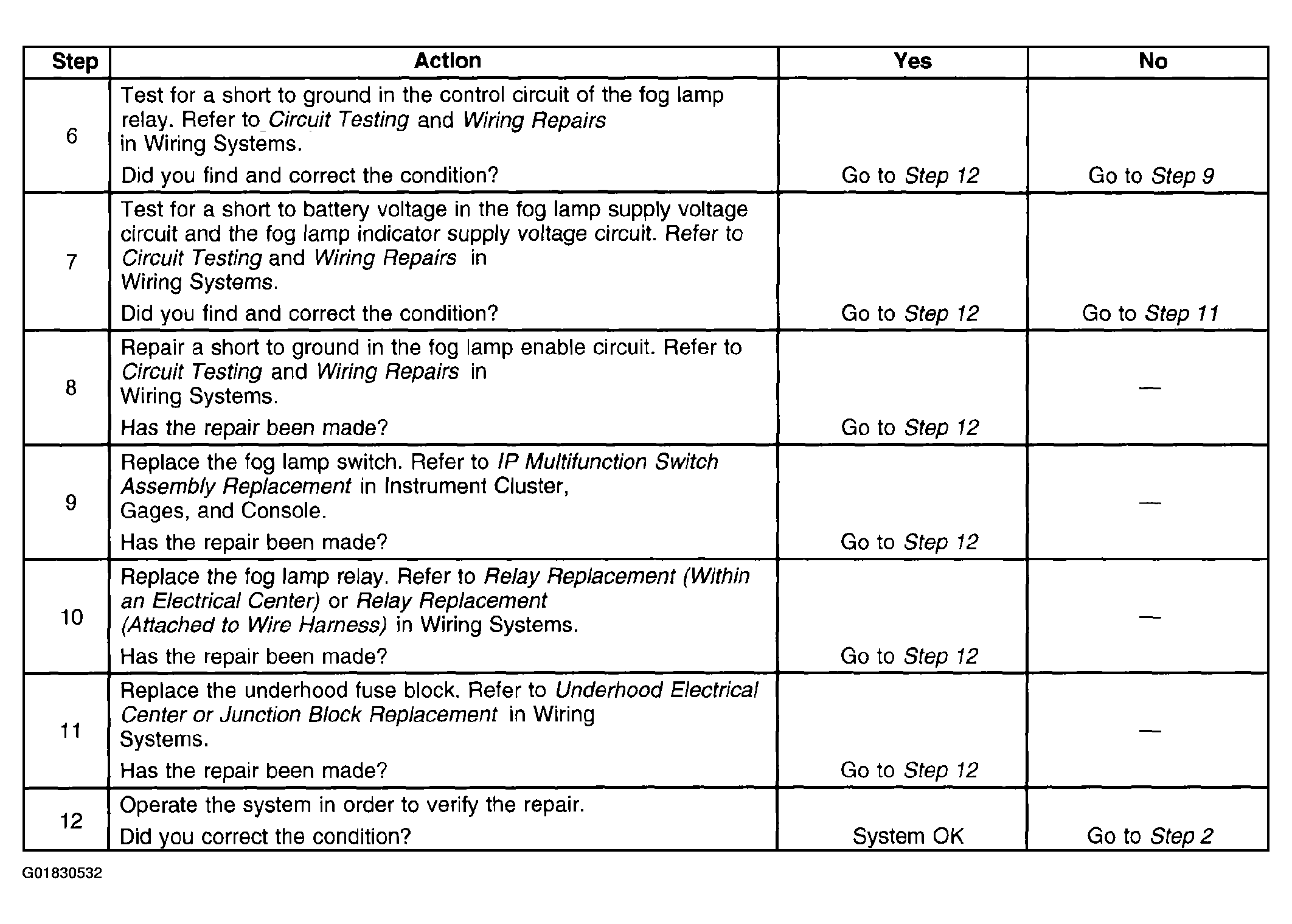

Fig 2: Fog Lamps Always On (2 Of 2)
G01830532Courtesy of GENERAL MOTORS CORP.
