Fog Lamp Indicator Inoperative

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

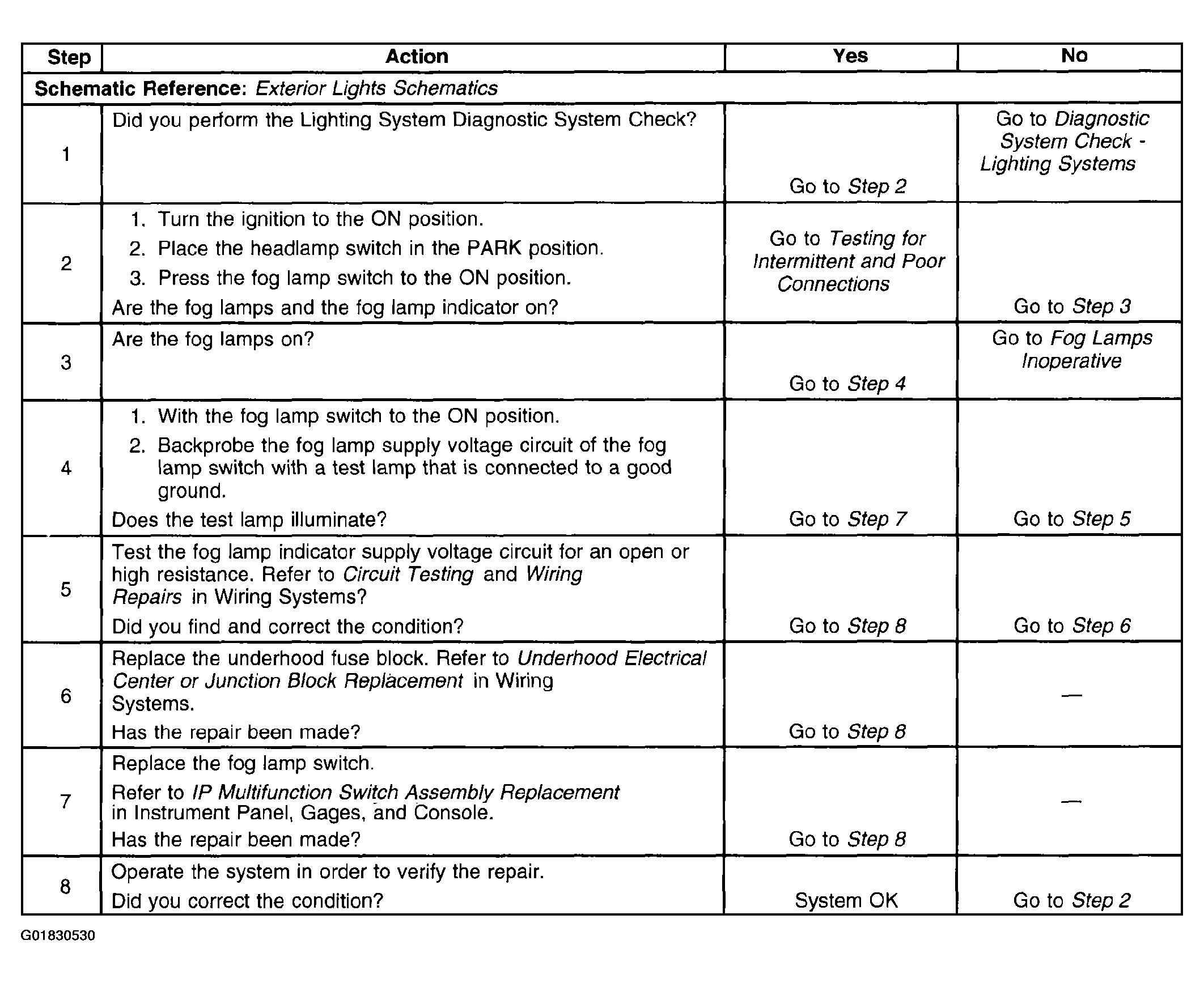

Fig 1: Fog Lamp Indicator Inoperative
G01830530Courtesy of GENERAL MOTORS CORP.
