Removal Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
CAUTION:
Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury.
- Raise and support the vehicle.CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

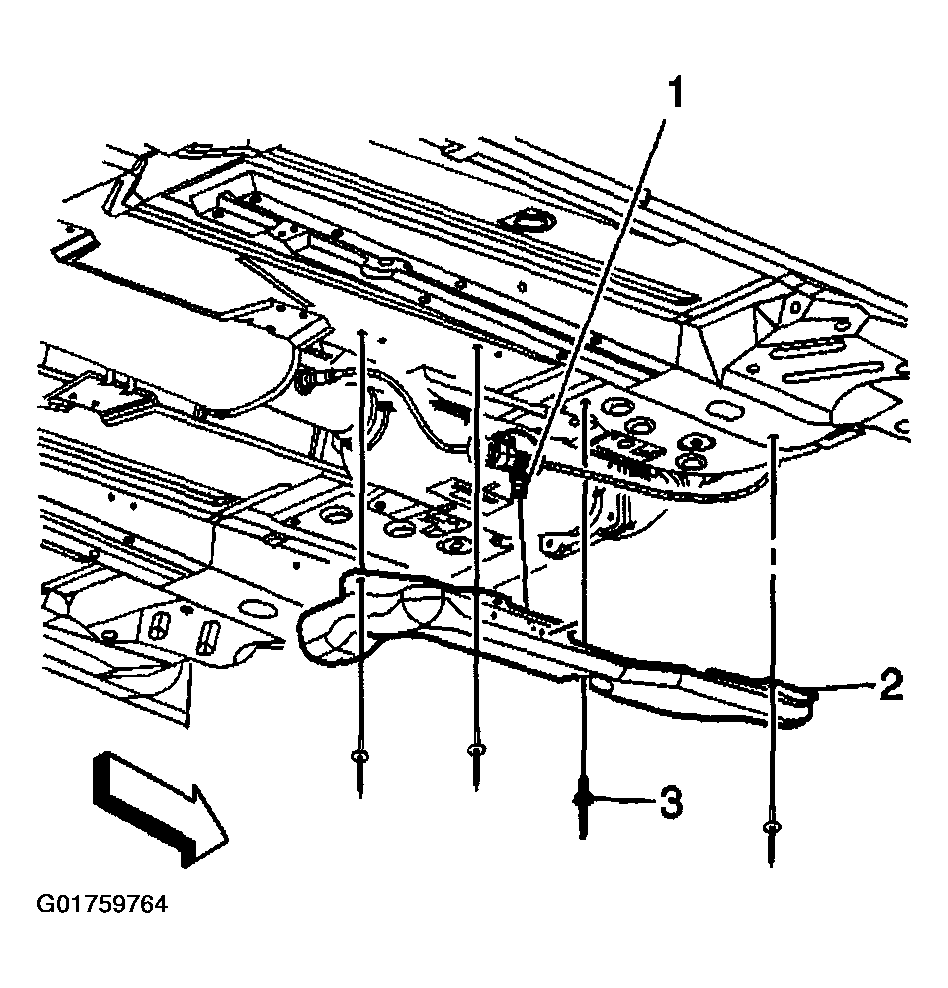

- Drill through the center of the heat shield rivets.
- Remove the heat shield (2) from the floor panel.
- Remove the oxygen sensor retainer (1) from the heat shield (2).
