Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the exhaust manifold studs if removed.
Tighten

Tighten the exhaust manifold studs to 6 N.m (53 lb in).
Install the oxygen sensor.

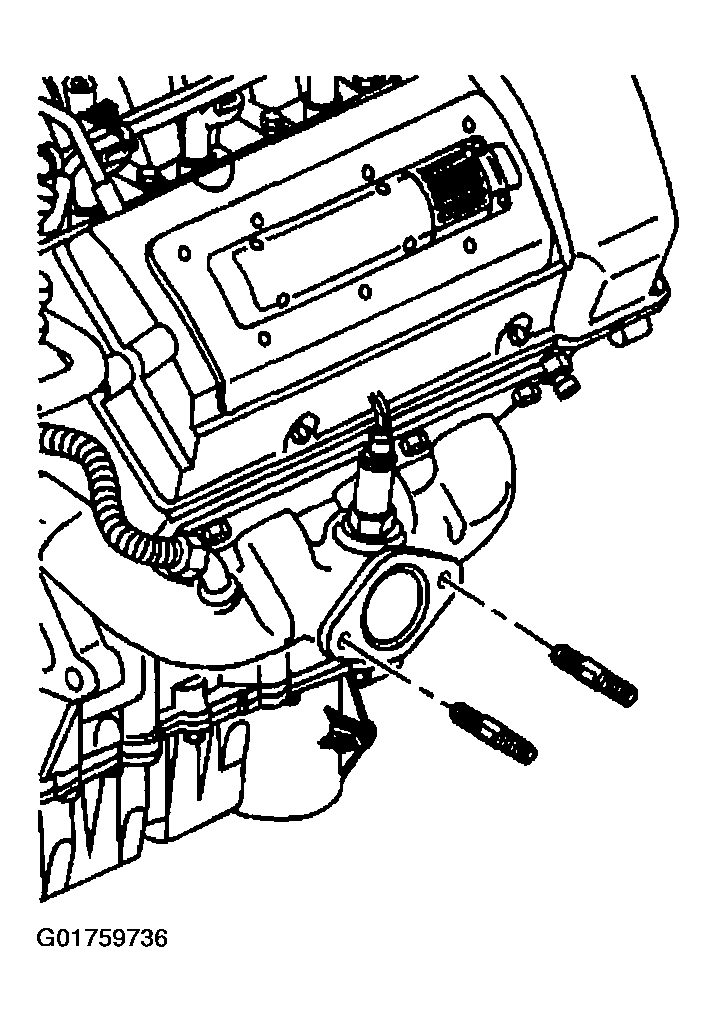

Fig 1: Exhaust Manifold Studs
Courtesy of GENERAL MOTORS CORP.
Position a new right rear exhaust manifold gasket onto the right rear exhaust manifold.
Install the right rear exhaust manifold bolts.
Place the right rear exhaust manifold, gasket and bolts as an assembly in position on the cylinder head.

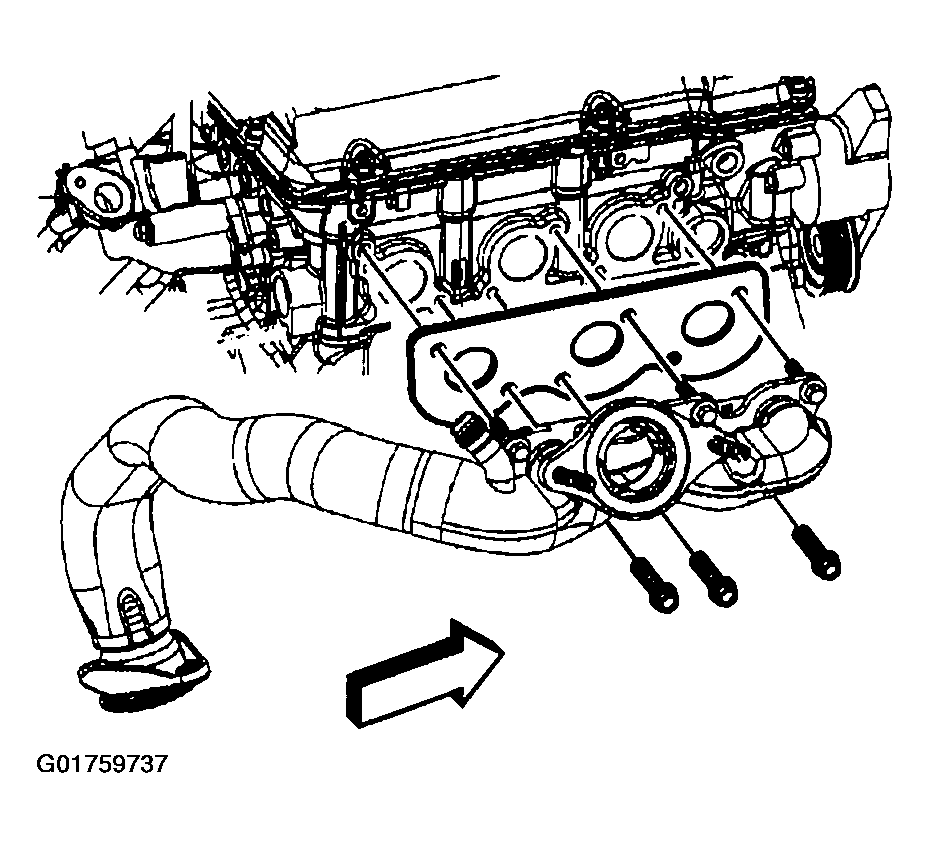

Fig 2: Right Rear Exhaust Manifold, Gasket & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the right rear exhaust manifold retaining bolts.
Tighten

Tighten the right rear exhaust manifold bolts to 25N.m (18lb ft).

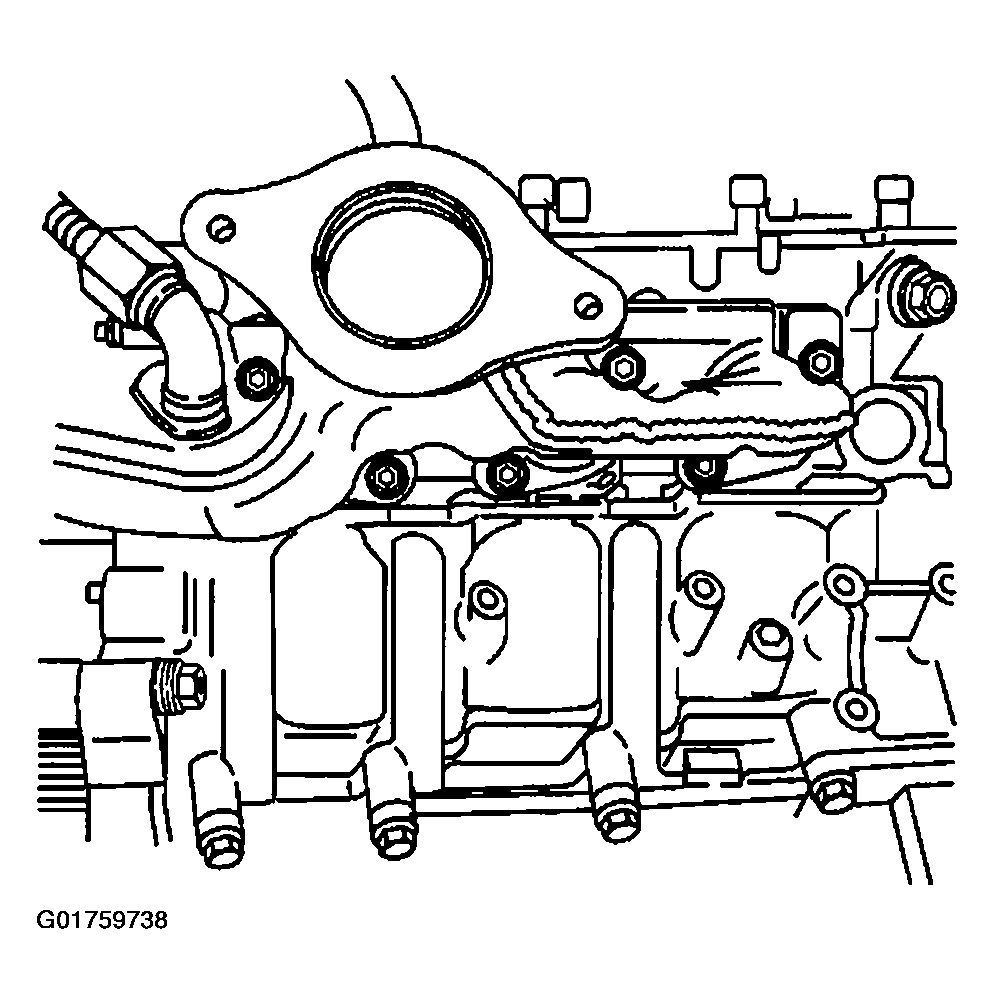

Fig 3: Installing Right Rear Exhaust Manifold Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Install the right rear exhaust manifold exhaust crossover pipe bolts to the left front exhaust manifold.
Connect the EGR valve pipe nut (3) to the exhaust crossover pipe.
Tighten

Tighten the EGR to exhaust crossover pipe nut to 60 N.m (44 lb ft).
Install the engine assembly. Refer to ENGINE REPLACEMENT in Engine Mechanical-3.5L.

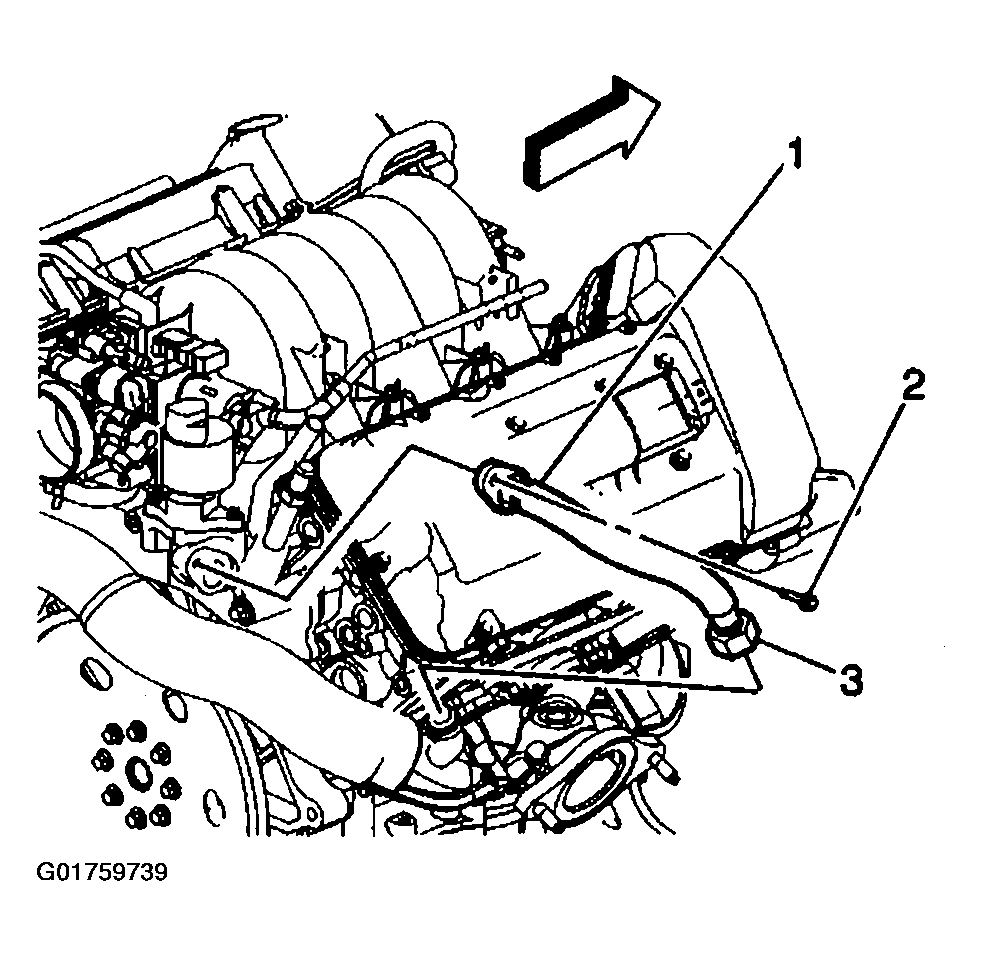

Fig 4: Connecting EGR Valve Pipe Nut To Exhaust Crossover Pipe
Courtesy of GENERAL MOTORS CORP.
