Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust muffler rear hanger bracket.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the rear bumper impact bar bolts.
Tighten

Tighten the bolts to 25 N.m (18.4 lb ft).

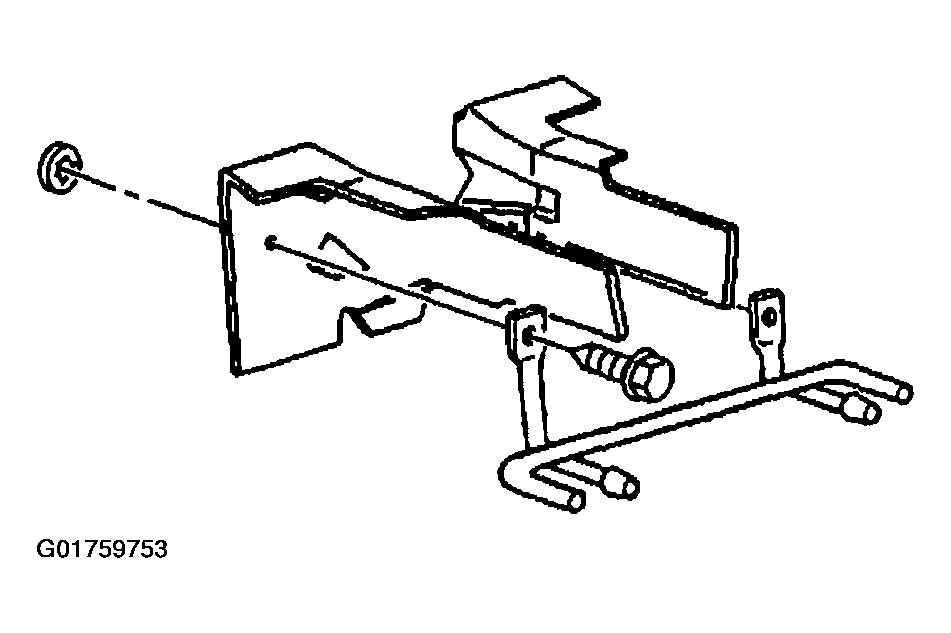

Fig 1: Installing Rear Bumper Impact Bar Bolts
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe rear hanger insulators to the muffler and the rear hanger bracket.

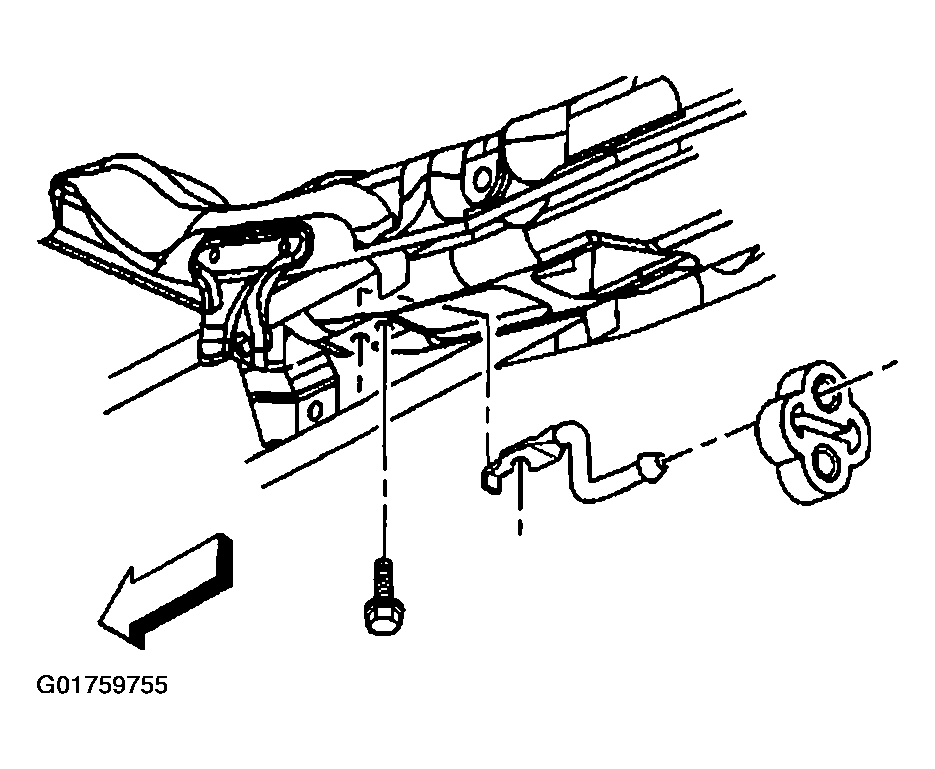

Fig 2: Installing Exhaust Pipe Rear Hanger Insulators To Muffler & Rear Hanger Bracket
Courtesy of GENERAL MOTORS CORP.
Install the exhaust pipe hanger bracket.
Install the exhaust pipe hanger bolt.
Tighten

Tighten the bolt to 25 N.m (18.4 lb ft).
Install the exhaust pipe rear hanger insulator to the exhaust pipe hanger bracket.
Remove the support from the exhaust system.
Inspect the exhaust system for underbody contact.
Lower the vehicle.

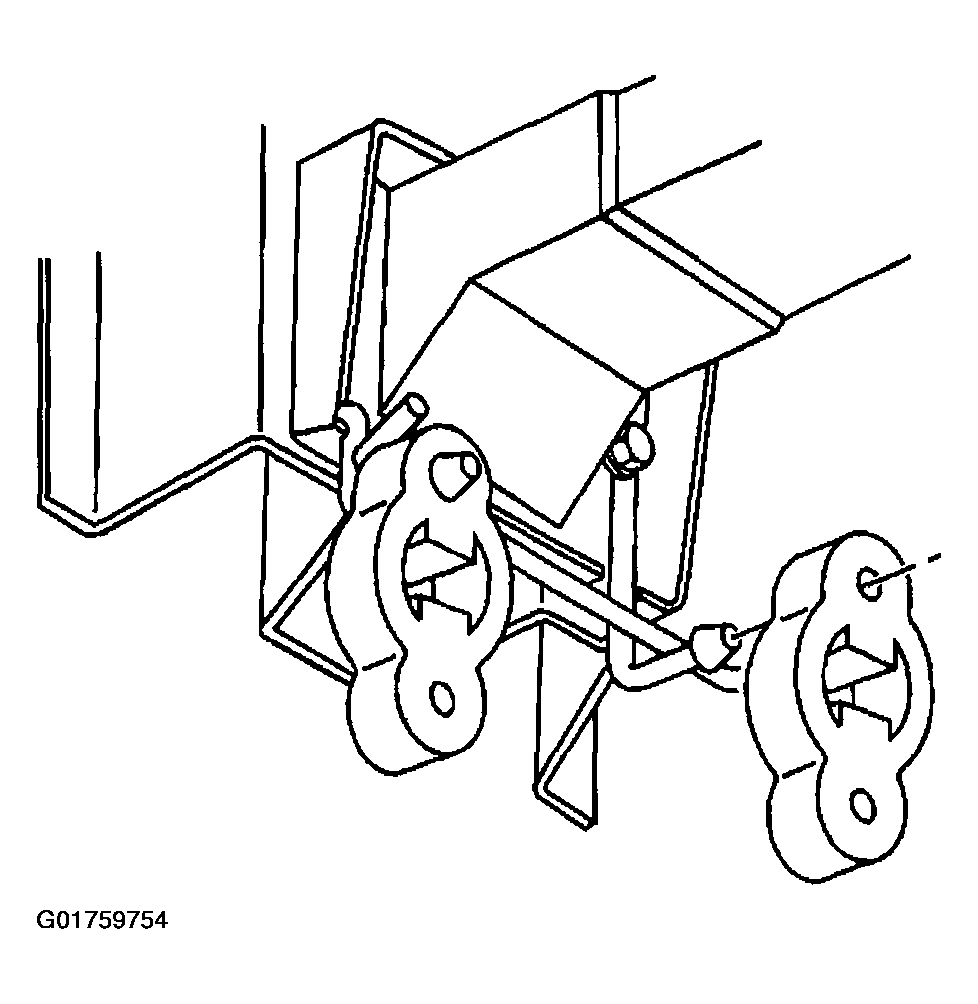

Fig 3: Installing Exhaust Pipe Rear Hanger Insulator To Exhaust Pipe Hanger Bracket
Courtesy of GENERAL MOTORS CORP.
