Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the catalytic converter. Refer to Catalytic Converter Replacement
  3. Remove the catalytic converter heat shield rivets.
  4. Remove the catalytic converter heat shield.

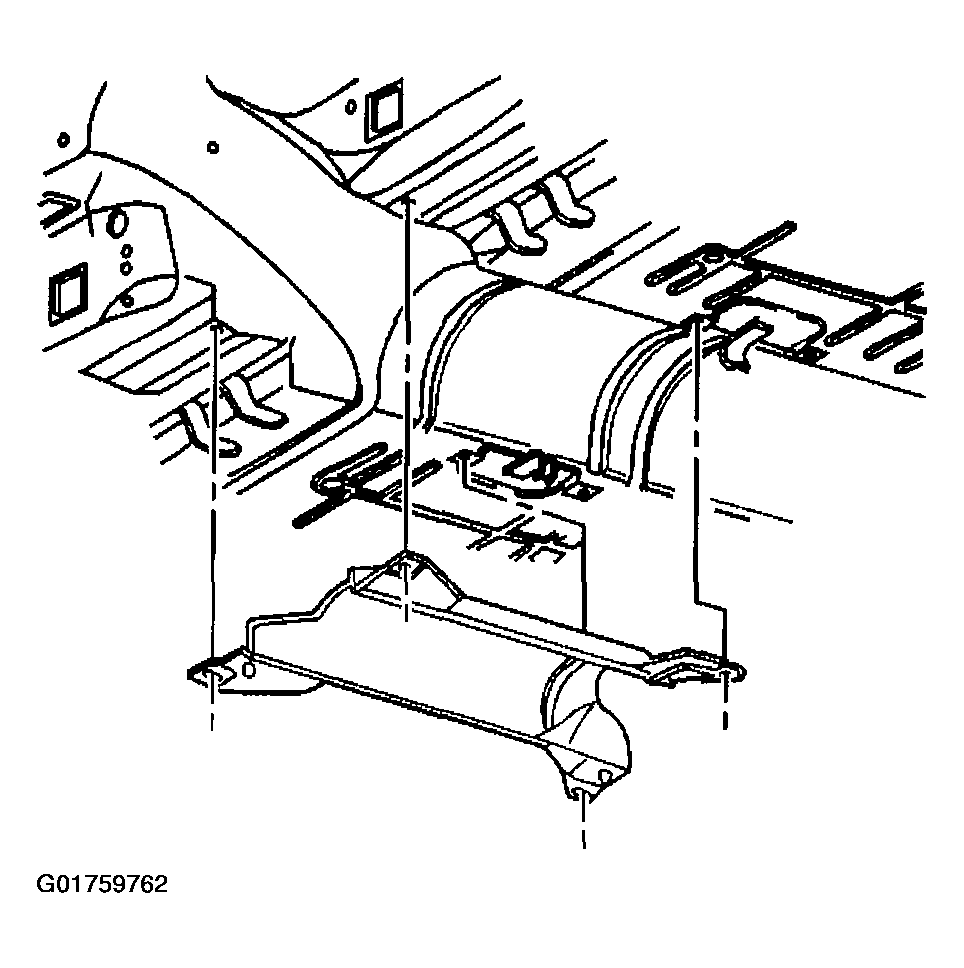

    Fig 1: Removing Catalytic Converter Heat Shield & Rivets
    G01759762Courtesy of GENERAL MOTORS CORP.
