Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the catalytic converter heat shield.
  2. Install the converter heat shield rivets.
  3. Install the catalytic converter. Refer to Catalytic Converter Replacement
  4. Inspect for leaks and underbody contact.
  5. Lower the vehicle.

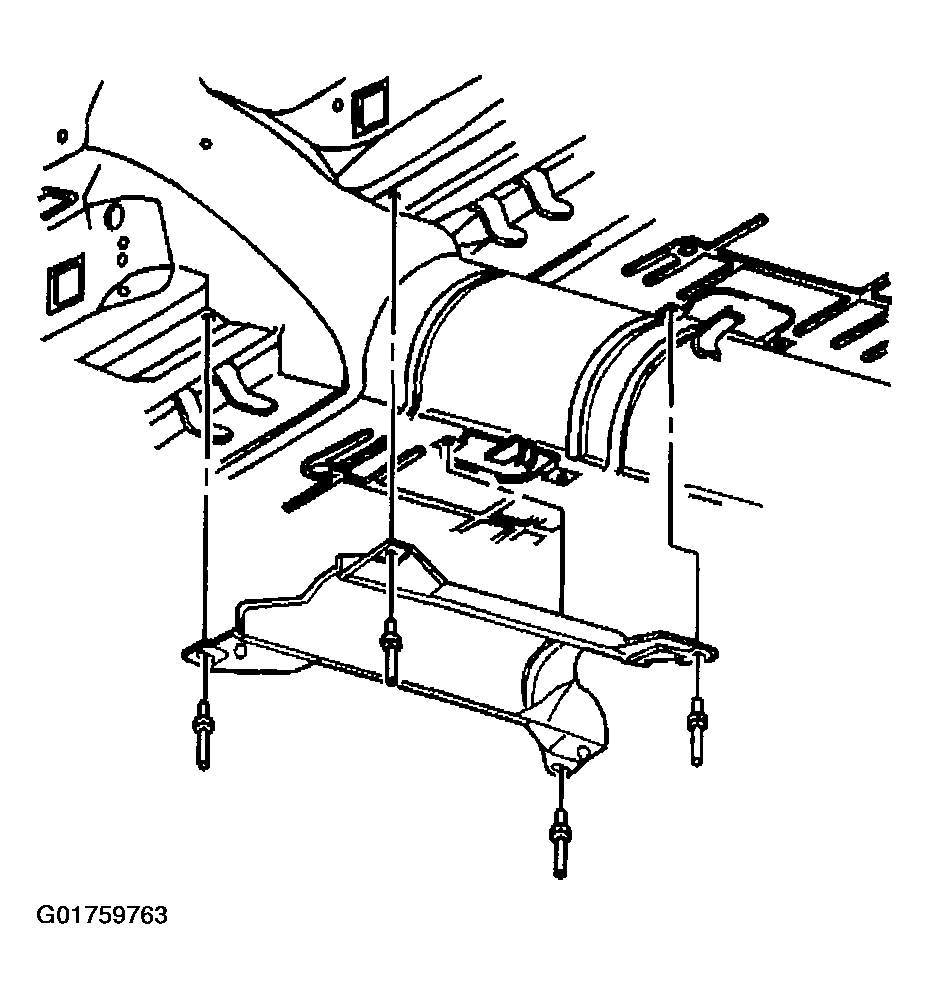

    Fig 1: Installing Catalytic Converter Heat Shield & Rivets
    G01759763Courtesy of GENERAL MOTORS CORP.
