Theft Deterrent System Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

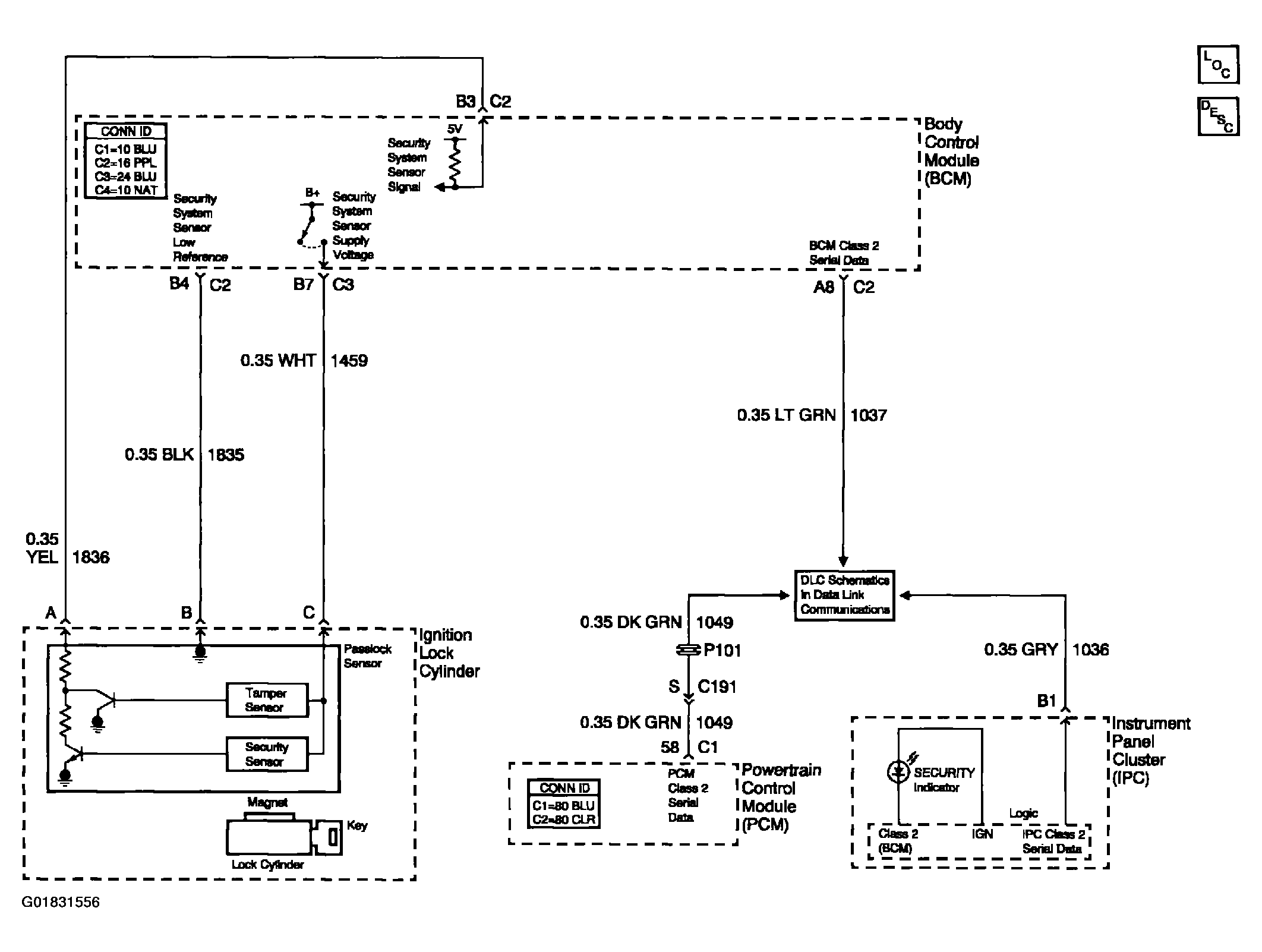

Fig 1: Theft Deterrent System Schematic
G01831556Courtesy of GENERAL MOTORS CORP.
