Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below Refer to the step numbers on the diagnostic table:

  1. 3. Tests for a magnetic field near the ignition lock cylinder.

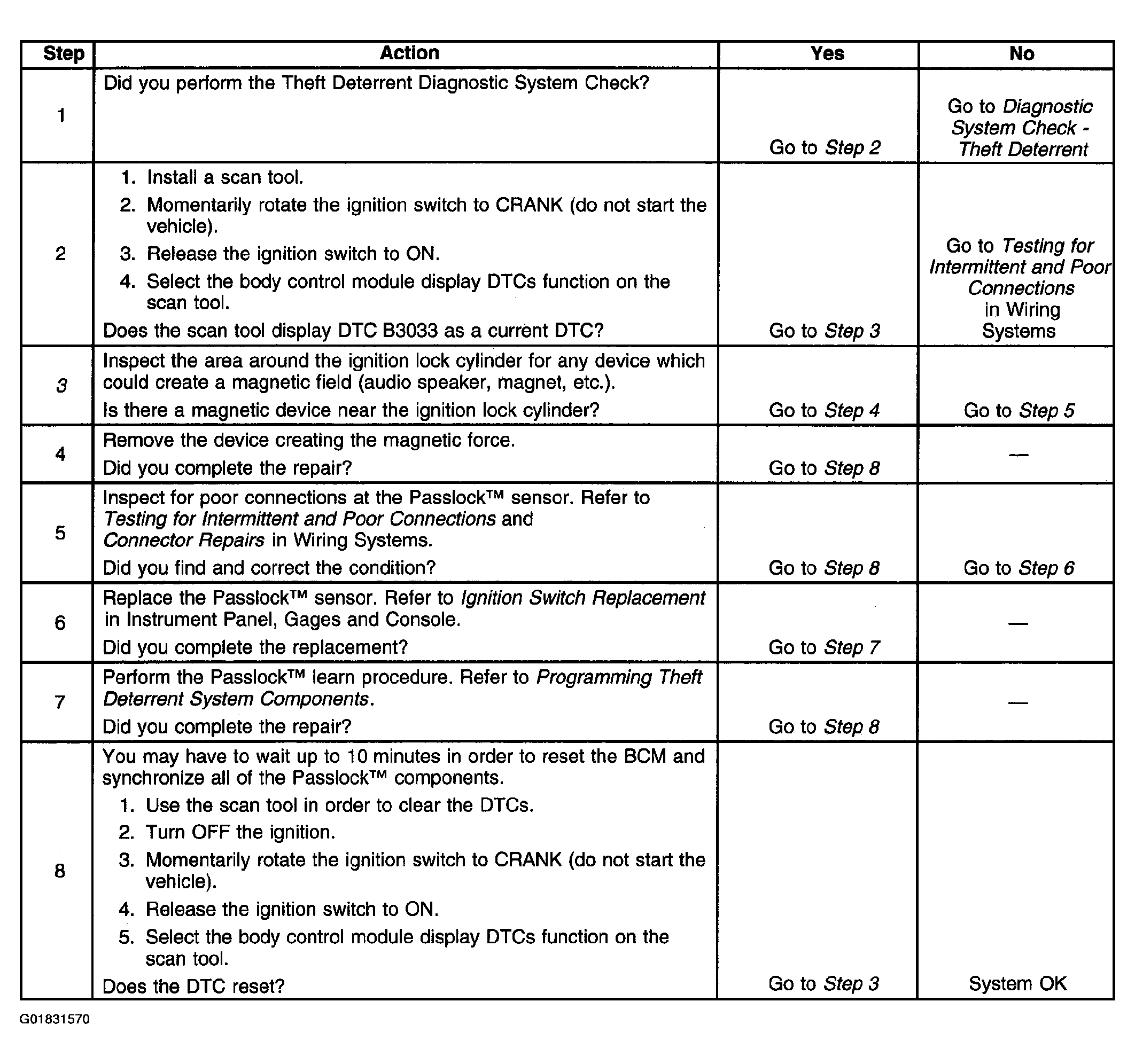

    Fig 1: DTC B3033 Diagnostic Table
    G01831570Courtesy of GENERAL MOTORS CORP.
