Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below Refer to the step numbers on the diagnostic table:

  1. 6. Tests for the proper operation of the circuit in the normal voltage range.

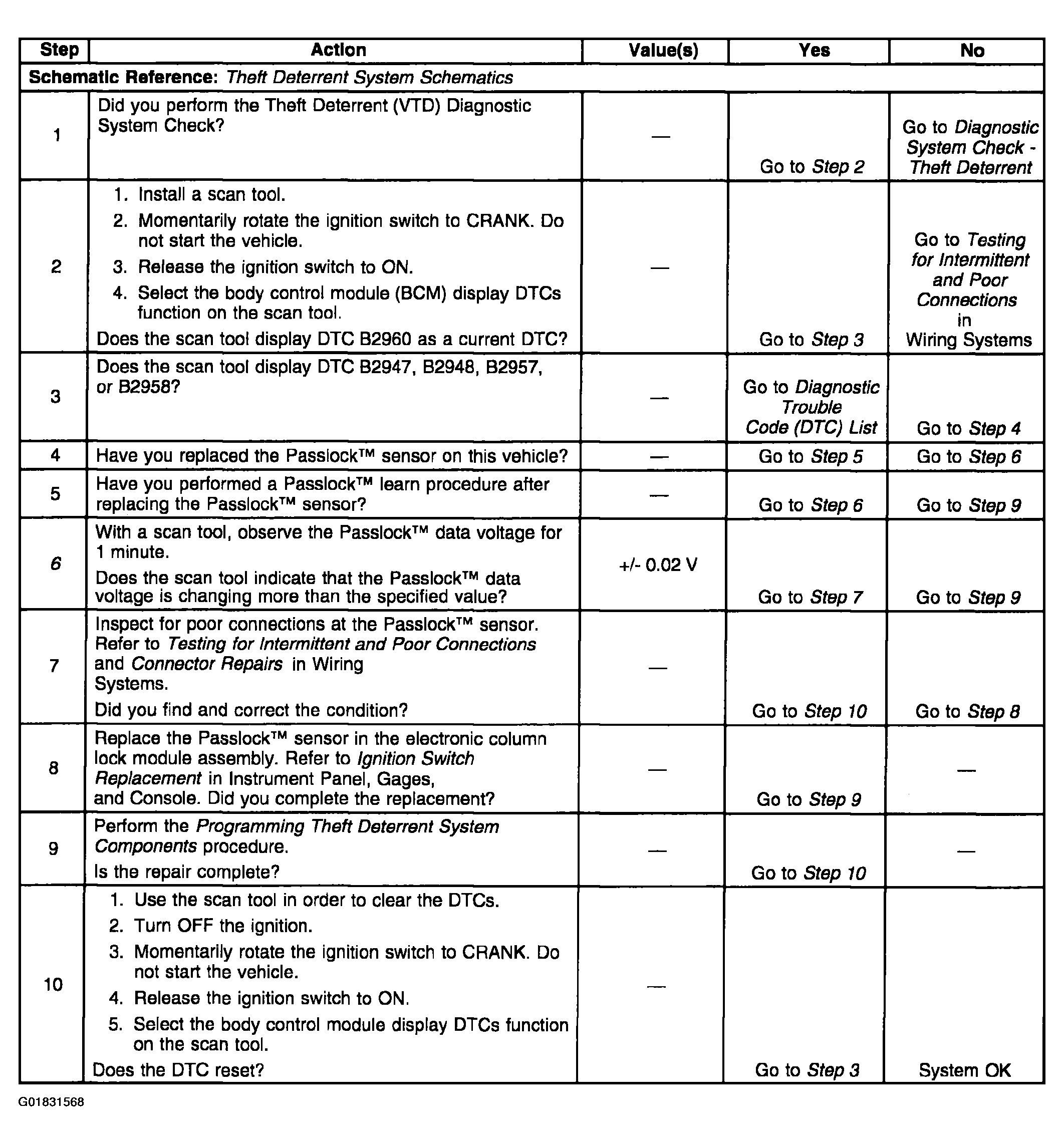

    Fig 1: DTC B2960 Diagnostic Table
    G01831568Courtesy of GENERAL MOTORS CORP.
