Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

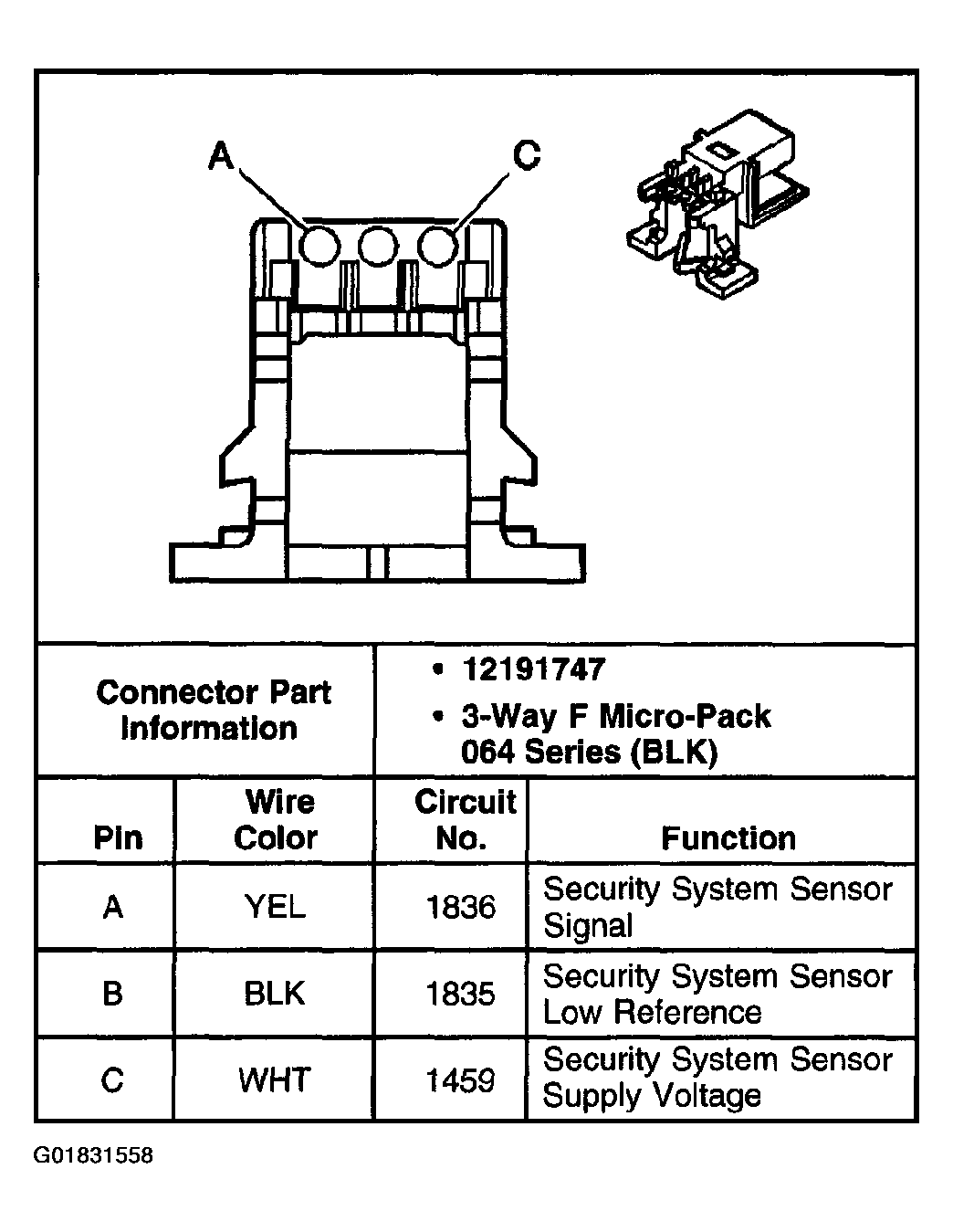

Fig 1: Passlock™ Sensor Connector End View
G01831558Courtesy of GENERAL MOTORS CORP.
