Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park brake actuator to the rear wheel bearing/hub. Refer to PARK BRAKE ACTUATOR .
  2. Install the wheel bearing/hub and park brake assembly to the knuckle.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the wheel bearing/hub-to-knuckle bolts.

    Tighten

    Tighten the bolts to 75 N.m (55 lb ft).

  4. Install the park brake cable to the park brake actuator. Refer to PARK BRAKE CABLE .

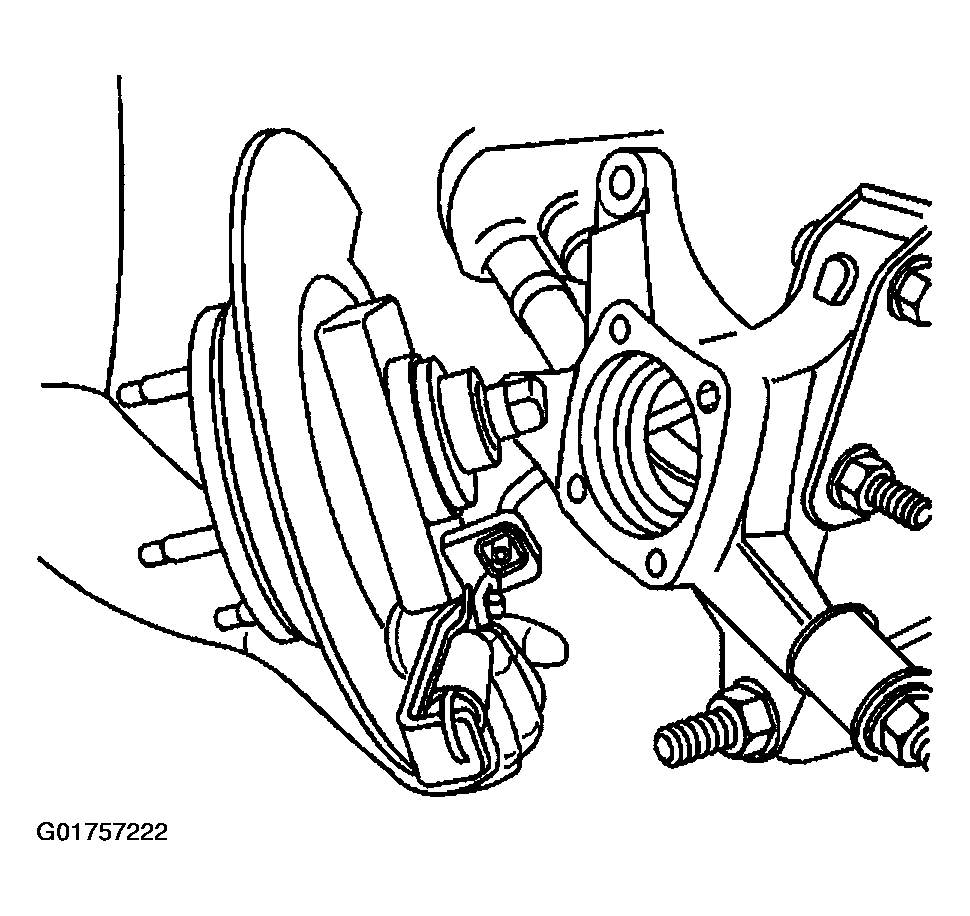

    Fig 1: Installing Wheel Bearing/Hub-To-Knuckle Bolts
    G01757222Courtesy of GENERAL MOTORS CORP.
  5. Install the ABS electrical connector to the wheel speed sensor (1).
  6. Install the brake rotor. Refer to REAR BRAKE ROTOR .
  7. Install the tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  8. Lower the vehicle.

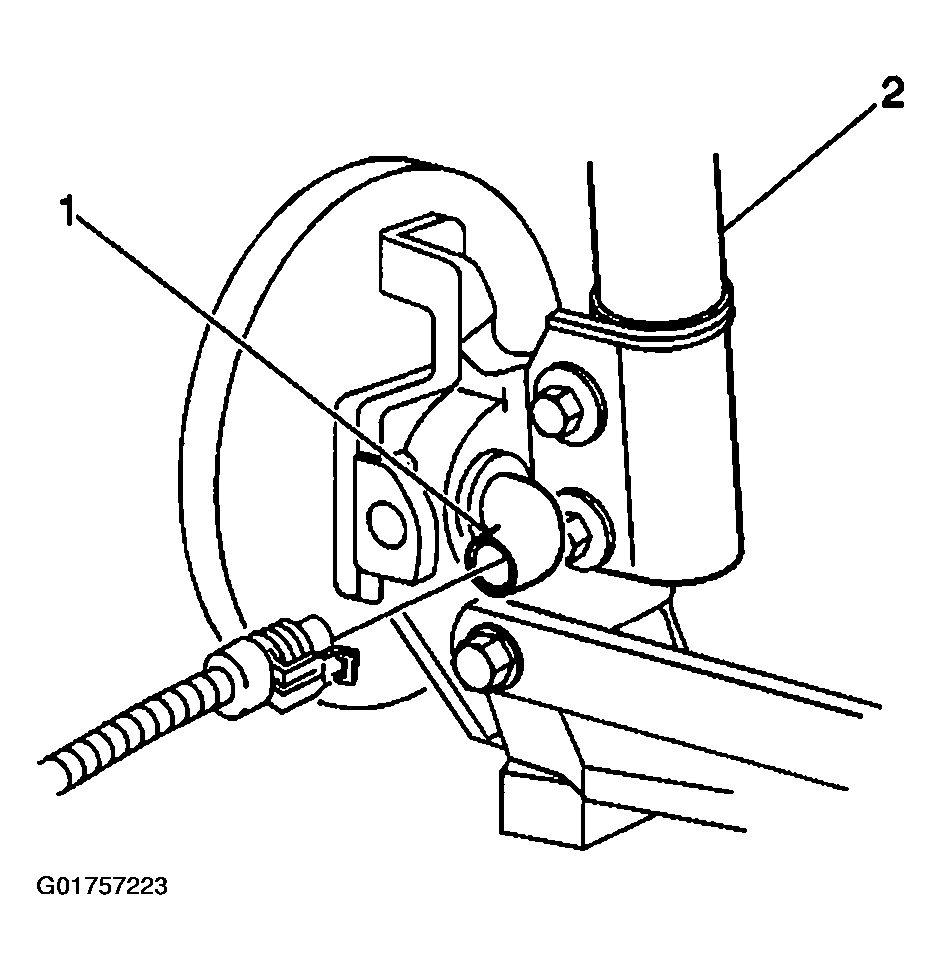

    Fig 2: Installing ABS Electrical Connector To Wheel Speed Sensor
    G01757223Courtesy of GENERAL MOTORS CORP.
